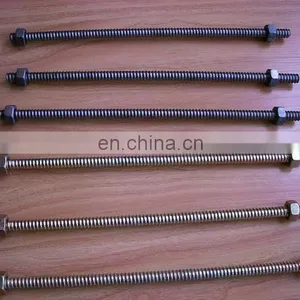

Help CenterConstruction Hardware Fitting High Strength Full Thread Formwork Concrete Tie Rod
Related Products
-
High Quality Construction Formwork Coil Tie/wire Rod CoilUS$ 0.1 - 10MOQ: 1000 Pieces -
High Strength Steel Full Threaded Concrete Coil RodUS$ 0.2 - 2MOQ: 1000 Pieces
-
HDG WELDED Q235 CARBON STEEL FOUR STRUT COIL TIEUS$ 0.2 - 5MOQ: 5000 Pieces
-
Factory Price Formwork Accessory Two Strut Coil TieUS$ 0.5 - 10MOQ: 1000 Pieces
-
HDG WELDED Q235 CARBON STEEL FOUR STRUT COIL TIEUS$ 0.2 - 5MOQ: 5000 Pieces

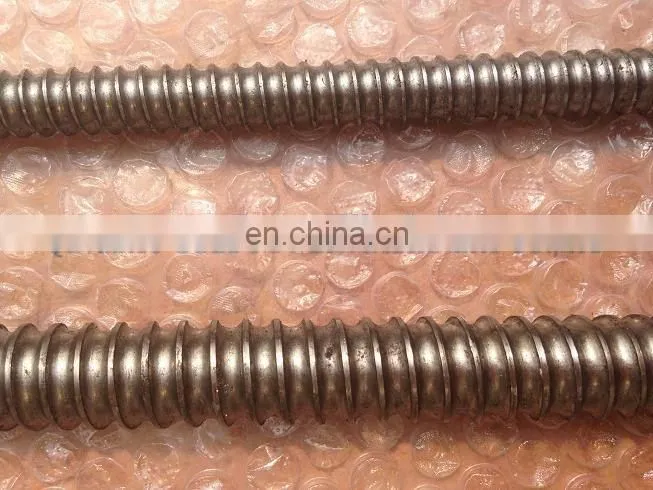

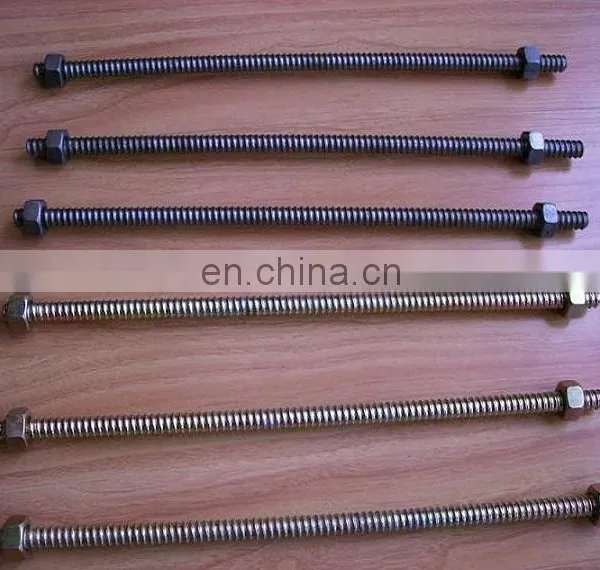

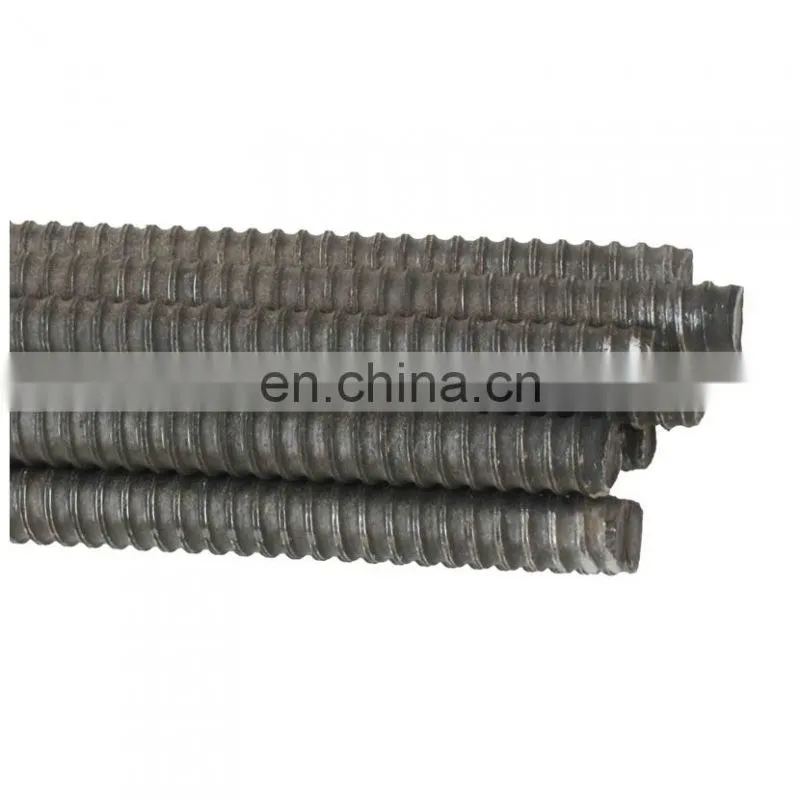

construction hardware fitting high strength full thread formwork concrete tie rod
Notes for all Ties and Inserts
1. Numbers shown are based on minimum concrete strength of 3,000 PSI.
2. Safe working loads are based on 2:1 safety factor for forming and 4:1 safety factor for tension and shear.
3. Inserts must have a 1/2" setback from the surface of the concrete and sufficient coil penetration by the lifting bolt.
4. Minimum concrete thickness = L + setback + 3/4” clear cover.
5. Minimum edge distance apply to 2 edges only. All other edges require 2x length of insert.
6. Minimum corner distance shall be 1.5x minimum edge distance for shear when loaded towards the edge.
7. Minimum anchor spacing shall be 2x the edge distance for forming and tension and 3x the edge distance for shear.
8. Anchors with asterisks exceed the shear capacity of the coil rod.
9. Coil Inserts & Ties are available in plain, hot dip galvanize, or stainless steel finish.

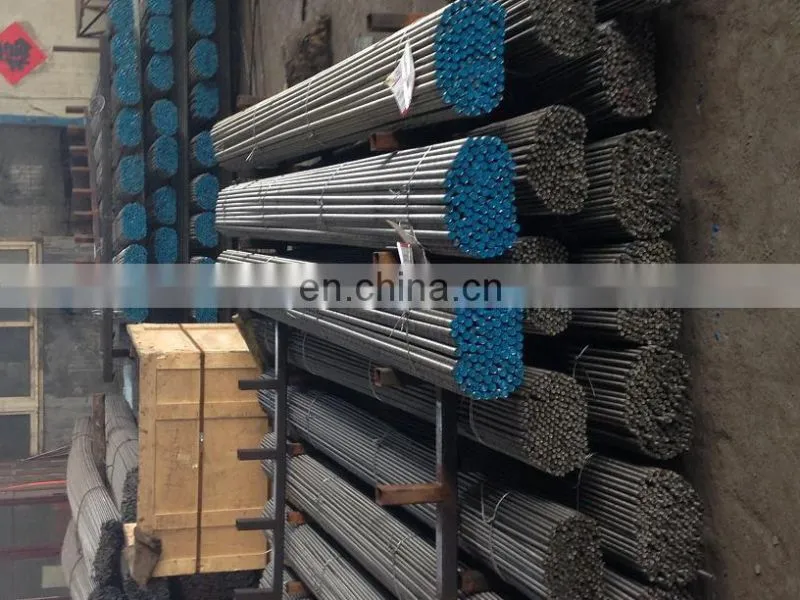

Production show
Company Information
Qingdao Gold Power Machinery Co.Ltd is a professional factory to make rigging hardware, electric power fittings, concrete forming hardware and other OEM etc, the factory covers an area of 10,000 square meters and its architectural area is 5,000 square meters, it has over 150 staff, including 5 engineers, 15 specialized Technician, two forging workshops, one mold workshop, main equipment is /630T/400T/300T/160T forging machine, air hammer, heating furnace, rolling machine, tapping machine, blasting machine and also we have welding machine and CNC machining workshop to do more process Main products comprise Building Concrete Products(coil rod ,coil insert ,coil tie ,coil cone ,jack ,nut ,plate,scaffolding accessory,foot anchor ,lifting anchor ) Poleline accessories, Powerline fittings( like anchor rod,ground screw anchor ,no wrench anchor rod,screw anchor ,helix anchor rod ,helix pile ), anti hail hardware (wire tensioner, wire rope ,wire strand , anti hail net,wire anchor clamp ,wire stretcher),Rigging hardware(shackle, turnbuckle ,and wire rope clip) other OEM items
lemon
Tel:+86 18724725382
Adress:Changzhi,Jimo City,Qingdao,Shandong Province.
Skype:+86 18846764850
Send Inquiry to This Supplier
