1.Product Name: Wood Block Machine
2.Brief Introduction
A. Wood block machine is mainly used to produce wood blocks/pallets feet/pallets legs for EU wooden pallets and wooden boxes. These wood blocks also could be used for heel block to support cargo.
B. The wood block machine of our company is designed by professional engineer according to the optimization principle and can do special customization.
That is you just need to tell us what you need, such as plant size, raw materials, expected output etc, we can provide you with the most suitable machines and the production plan.
C. There are three models of wood block machines, namely single-head wood block machine, double-head wood block machine, triple-head wood block machine. You can choose different models according to your production requirement.
3.Raw material
Waste wood, wood sawdust, wood shavings, wood chips, tree branches, barks, waste wooded pallets etc and urea-formaldehyde glue.
4.Specifications
Model |
YHP-2 |
YHP-4 |
YHP-6 |
Size |
4900*600*1800 |
4900*800*1800 |
4900*940*1800 |
Capacity |
2-4m3/24hr |
4-6m3/24hr |
6-8m3/24hr |
Glue Consumption |
90-100kg/m3 |
90-100kg/m3 |
90-100kg/m3 |
Density |
550-600kg/m3 |
550-600kg/m3 |
550-600kg/m3 |
Power |
12-15kw |
18-25kw |
24-30kw |
Weight |
1000kg |
1200kg |
1500kg |
5.Product Details
a.The length of heating plate has been improved from 150mm to 200mm.Suitable length makes the heating plate work more evenly and faster.

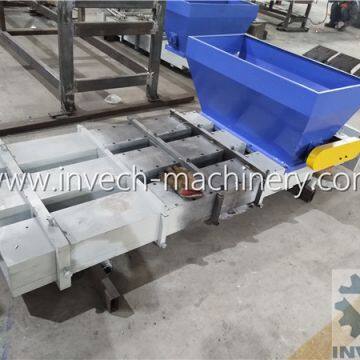

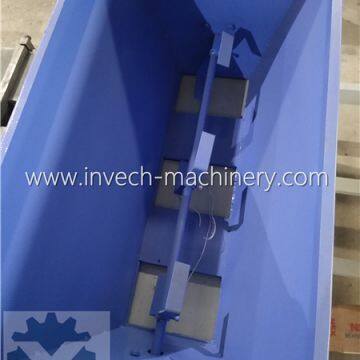

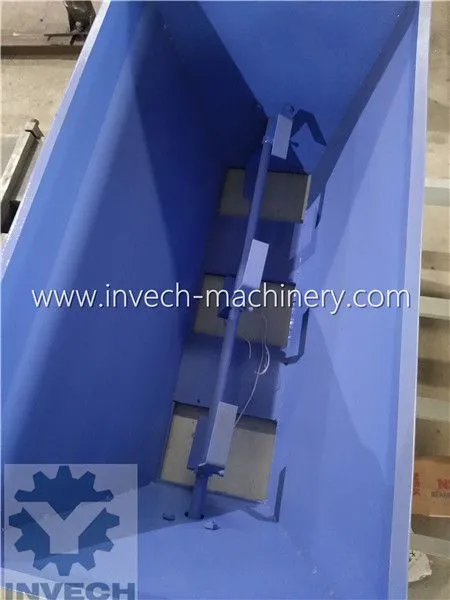

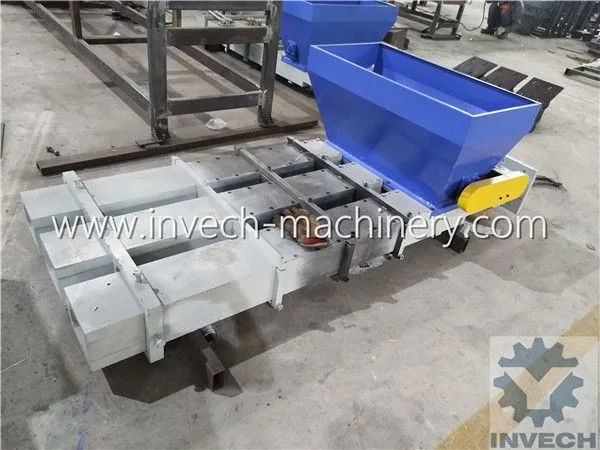

b.Powerful feeding system is driving by a motor. By promoting the ability to stir, the feeding system works more automatically and high-efficiency, Which is better suitable for automatic production.
c.We use the hydraulic propulsion system to provide more stable impetus, which will improve the quality of final products.
d. Anti-explosion relay can protect the machine from damage of over temperature and control it automatically.
