Marine Infrared hd Camera YTH-IPQ30 for Ship

Marine Infrared hd Camera YTH-IPQ30 for Ship thumbnail-1
Marine Infrared hd Camera YTH-IPQ30 for Ship photo-1
CNY 1380 - 1400 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Yetonghang
Place of Origin:
China
Model Number:
YTH-IPQ30
Contact Supplier Request Quote Chat Now
Guangzhou HengWei Electronic Technology Co., LTD
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
2 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Yetonghang
Place of Origin China
Model Number YTH-IPQ30
Type IP Camera
Special Features Waterproof / Weatherproof
Technology NetWork
Sensor CMOS
Style Bullet Camera

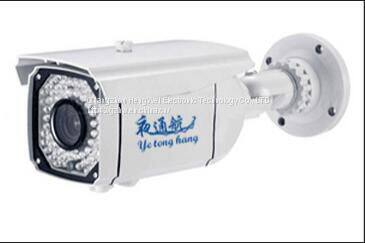

Marine infrared hd camera YTH-IPQ30



Product introduction

The overall shape of Marine infrared hd camera YTH-IPQ30 is exquisite, using 1/2.8"CMOS 2 million line scanning machine core, image resolution 1920 x 1080.The camera function is outstanding, while equipped with privacy masking function also combines motion detecting function, once has the object into the monitored area immediately detect, 24-hour monitoring, manual/automatic color black and white conversion, to provide users with better quality of service.

Product feature:salt spray, anti-corrosion, shockproof and waterproof

◆ Manual focus lens;

◆Protection level of IP66

◆Mobile detection function, privacy masking function;

◆Color automatic adjustment, color reduction real;

◆Automatic backlighting compensation, dark area compensation function;

◆The image resolution is 1920*1080, and the effect is super clear;

◆The infrared light can adjust the brightness automatically with the Angle of the camera;

◆Marine vessels special treatment: anti-salt fog, anti-corrosion, waterproof;

◆Day and night camera function: camera automatic/manual color black and white conversion;

◆Support OSD menu control: the camera can be set with a simple menu.

Scope of application

Fishing vessels, passenger rolling vessels, bulk carriers, maritime law enforcement vessels, fishery law enforcement vessels, engineering vessels, container ships, cruise ships, naval vessels, liquefied gas ships, and other vessels, video monitoring systems.

Technical parameter

Camera parameter

Infrared night vision distance

30m

Image sensor

1/2.8" Progressive Scan CMOS （menu, line control）

Video formats

PAL/NTSC

Pixel

200 million

Image resolution

1920*1080

Len

Standard 3.5-8mm

Focus

Manual adjustable focus

Synchronously

Internal synchronization/external synchronization

SNR

≥50 dB (AGC close)

Automatic gain control

Open/Close

White balance

Open/Close

Backlight compensation

Open/Close

Minimum illumination

0.001Lux /F1.2 (0Lux/F1.2 Lux)

Video output

1.0Vp-p 75 Ohm

Electronic shutter

1/50（1/60）~ 1/100，000 s.

Infrared function

Infrared radiation distance

30-50m

Infrared lamp

Φ5

Infrared light

66

Infrared lamp power

1W

infrared light start mode

Automatic

IR ON

0 Lux

Electrical characteristic

Power supply

DC 12V 2A ±10%

Weight

1．5kg

Working temperature

-10°C ～ +50°C

Storage temperature

-20°C ～ +50°C

Working humidity

90%RH(No condensation)



Product Tags: infrared hd camera , hd camera for ship , Marine infrared hd camera
