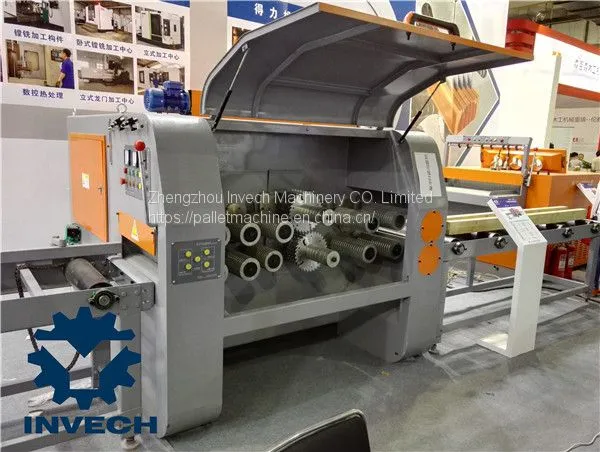

Help CenterMulti Rip Saw Machine for Log Processing
Related Products
Product Application
Log cutting machine is not only can cut logs, also timbers. It is widely used in woodworking industry, such as boarding making, laminated wood, boarded, floor, packing case and pallet, as well as building trades.
Main Features
1) Uniform thickness
2) Smooth without burr
3) No need professional band master
4) 5 times than band saw
5) Automatic feeding
6) Safety sealed design
Technical Parameters
Model |
MJY142-45 |
MJY142B-40 |
MJY142-35 |
MJY142-30 |
MJY142-25 |
MJY142-19 |
MJY142-15 |
Total Power |
168.3kw |
133.3kw |
102.5kw |
102.5kw |
68.5kw |
45.5kw |
31.5kw |
Voltage |
3PH-380v,50Hz |
||||||
Processing Length |
≥1200mm |
≥1200mm |
≥900mm |
≥900mm |
≥600mm |
500-4000mm |
500-4000mm |
Feeding Speed |
0-8m/min |
0-8m/min |
0-9m/min |
0-9m/min |
0-10m/min |
0-9m/min |
0-9m/min |
Processing Diameter |
Φ250-450mm |
Φ200-400mm |
Φ150-350mm |
Φ120-300mm |
Φ80-250mm |
Φ80-190mm |
Φ50-150mm |
Out Size |
5400*1850*1950mm |
5400*1800*2100mm |
3700*1550*1900mm |
3750*1550*1780mm |
3000*1450*1670mm |
2700*1200*1490mm |
2660*1100*1420mm |
Weight |
4300kg |
3800kg |
3000kg |
2300kg |
1900kg |
1500kg |
1100kg |
