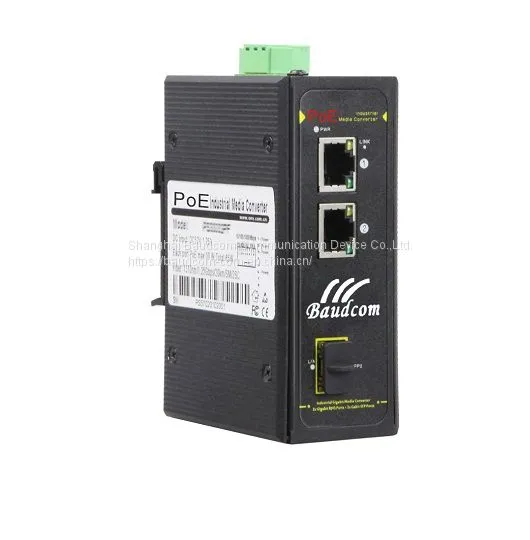

Help CenterManaged 3 Port Gigabit Ethernet Industrial PoE Switch With 2GE POE +1GE SFP
Related Products
-
26 Ports Gigabit Managed PoE Switch With 22GE POE + 2GE SFP Uplink+ 2GE RJ45 UplinkUS$ 330 - 380MOQ: 1 Piece -
26 Ports 10/100M PoE Switch With 24FE POE + 2GE SFP Uplink+ 2GE RJ45 UplinkUS$ 100 - 200MOQ: 1 Piece
-
10/100M PoE Extender 15.4WUS$ 20 - 40MOQ: 1 Piece
-
10/100M PoE Extender 30WUS$ 20 - 40MOQ: 1 Piece
-
10/100/1000M PoE Injector With Single PoE Port AC Input 30WUS$ 5 - 15MOQ: 1 Piece
Product Description:
3-port Industrial PoE Switch, with 2x Gigabit Ethernet PoE ports and 1x gigabit SFP slots, for connecting with devices like computer, switch, hub, server, etc. Optical fiber SFP interface extends network transmission distance limit from 100m to above 20km. It simply connects remote multiple motherboard servers, relays, hubs, terminals and multiple terminals. BD-SIPS33032PF product components were rigorous screened, have superior performance in stability, environmental adaptability. Shells were made by aluminum extrusion, more lighter, stronger, better resistance ability to corrosion and electromagnetic interference, ensure stability and security of Industrial Ethernet Switch, plus standard DIN rail type installation method.
Features:
◆ Industrial design, 2x Gigabit PoE RJ45 ports with AutoUplink™ and 1x Gigabit SFP Optical slots
◆Compatible with IEEE802.3af/at. Max power consumption for each port is 30W
◆Supports IEEE802.3x flow control for Full-duplex Mode and back pressure for Half-duplex Mode
◆RJ-45 port supports Auto MDI/MDI-X
◆Automatic MAC address learning and aging
◆Auto-Negotiation for Full-duplex Mode and Half-duplex Mode
◆LED indicators for monitoring power/link/activity and Full-duplex or Half-duplex Mode.
◆Provides DIN rail-type installation method
◆Electromagnetic compatibility of up to 4 grade standard
Technical Specification:
Product Name |
3-port Industrial Ethernet PoE Switch / Media Converter |
Product Model |
BD-SIPS33032PF |
Interface |
2x gigabit copper RJ45 PoE ports+1x gigabit SFP optical slots |
Switch Processing Scheme |
Store-and-Forward |
Optical Interface |
SFP slot |
Optical Transmission Distance |
550m-20km, or more, depends on optical module you used |
MTBF: |
300,000 hours |
|
Standards Compliance
|
IEEE802.3: CSMA/CD; IEEE802.3i: 10Base-T; IEEE802.3u: 100Base-T; IEEE802.3ab: 1000Base-T; IEEE802.3z: 1000Base-LX IEEE802.3af/at |
LED Indicators |
Power: PWR; Link; PoE;L/A |
Power |
Removable industrial 3-pin terminal block (Power adapter is not included in the package,need to order it separately) |
Product Size |
W×D×H: 110x80x43mm |
Working Environment |
Working Temperature: -40～75℃; Working Humidity: 5%～95%(non-condensing); |
Radiation |
CE mark, commercial |
Safety |
CE Mark, commercial |
Warranty |
5 years warranty |
Product Dimension Display:
Product Usage Display:
Product Ordering Information:
Product Model |
BD-SPS33032PF
|
Product Description |
10/100/1000M 3-port Industrial Ethernet PoE Switch / Media Converter, with 2x gigabit RJ45 PoE ports and 1x gigabit SFP slots. Compatible with IEEE802.3af/at. Max power consumption for each port is 30W. Rail-type installation.
|
Product Packing Lists:
Package List |
3-port Industrial PoE Switch / Media Converter (BD-SIPS33032PF) |
User Guide | |
Warranty Card |
Note: SFP modules and power adapter is not included in this package. Please order it separately.
