1.The description of the high quality fixed ultrasonic flow meter:

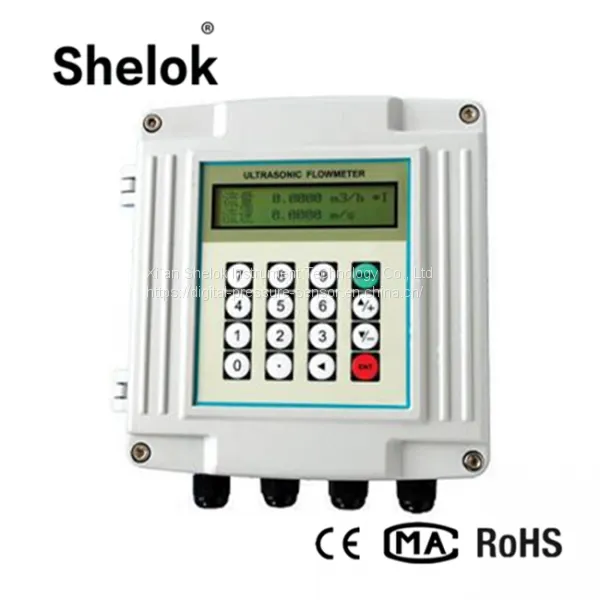

This high quality wall-mounted fixed ultrasonic flow meter have the host and sensor installation respectively: sensor installed on the pipeline, the host installed in indoor or instrument box for long-term flow measurement.
2. The features of the high quality fixed ultrasonic flow meter:
·Linearity:0.5%,Repeatability:0.2%,Accuracy:±1%
·Easy to operate
·Several type transducers for selection
·Adopt low voltage,multi-pulse technology
·Powerful recording function,record the totalizer data of the last 64 days/64 monthes/5 years
3. The specification of the high quality fixed ultrasonic flow meter:
| Main Unit | Accuracy | Better than ±1% |
| Repeatability | Better than 0.2% | |
| Measurement | Input | Three analogue input Three-wire PT100 resistor input(optional) |
| OCT Output | Frequency signal(1~9999HZ) | |
| Display | LCD with backlight | |
| Pipe Material | Steel,stainless steel,cast iron,cement pipe,copper,PVC,aluminum,FRP,etc | |
| Liquid Temperature | Standard | -30ºC-90ºC |
| High-temperature | -30ºC-160ºC | |
| Power Supply | AC220V or DC24V | |
| Protocals | MODBUS,M-BUS,Fuji extend protocol,etc | |
| Flow Range | 0~±30m/s | |
| Pipe Size | DN16~6000mm | |
| Power Consumption | ||
4.The applications of the high quality fixed ultrasonic flow meter:
The high quality fixed ultrasonic flow meter can be applied to a wide range of pipe flow measurements.Applicable liquids include pure liquids as well as liquid with small quantity of tiny particles.
