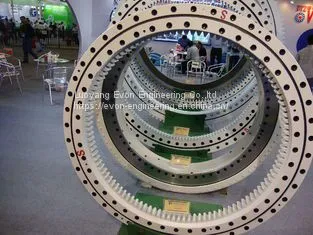

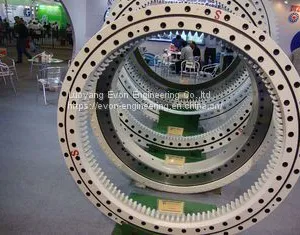

Help CenterRks. 062.25.1314 Slewing Bearing Used for Wind Turbine
Related Products
-
Big Bearing 12981u Cylinderical Roller Bearing NF6/406.6/C9US$ 10 - 500MOQ: 5 Pieces -
Ex100-1 Slewing Ring Bearing for Excavator HitachiUS$ 10 - 500MOQ: 5 Pieces
-
Rks. 062.20.1094 China Wind Power Turntable Slewing BearingUS$ 10 - 500MOQ: 5 Pieces
-
Rks. 062.25.1424 Deck / Ship Crane Three Row Roller Slewing BearingUS$ 10 - 500MOQ: 5 Pieces
-
Slewing Ring Bearing Heavy Duty Large Swing BearingUS$ 100 - 500MOQ: 1 Piece
Product features:
Single row four point contact ball slewing bearings consist of a one-piece inner and outer ring and a set of spacers, protected by integral seals. The balls are inserted into the bearings via a hole in one of the two rings and are separated by polyamide spacers. After loading the ball set and spacers, the hole is closed with a plug that conforms to the race-way contour.
The single row four-point contact ball slewing bearings is divided into three series:
Light series four-point contact ball slewing bearings
Medium size four-point contact ball slewing bearings
Customized four-point contact ball slewing bearings

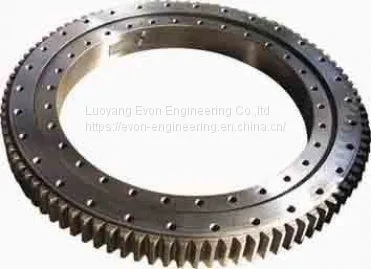

RKS.062.25.1204 four point contact slewing bearing with internal gear teeth
Advantage: RKS.062.25.1204four point contact slewing bearing with internal gear teeth, it features compact in design, light in weight, high precision and small fitting clearance. As the rollers are 1:1cross arranged, it is suitable for high precision mounting and capable to bear axial force, resultant moment and considerable large radial force. The four point contact slewing bearing find widely application for transporting, engineering machines as well as for military products.
The three-row roller slewing bearing has three seat-rings,which separate the upper,lower and radial races,via which the load of each row of the rollers may be specified.It may bear different loads simultaneously and its load capacity is the largest one among the four models.
Thanks to the large size of its axle and radius,it is sturdy and especially suitable for heavy-duty machines which require large working radius.such a bucket wheel excavators , wheeled cranes, ship cranes, ladle turrets,heavy duty mobile cranes etc.
Technical parameters:
Slewing bearing is one of our main products.
1. four point contact ball slewing bearing (no gear, external gear, internal gear);
2. two row ball slewing bearing;
3. crossed cylindrical roller slewing bearing;
4. three row cylindrical roller slewing bearing;
5. crossed tapered roller slewing bearing;
6. ball and roller combined slewing bearing.
With advanced science and technology, the company develops and manufactures various kinds of bearing products with inner diameter of over 100 mm according to the national standard,such as large-size and extra-large-size deep-groove ball bearings,angular contact ball bearings,single,double and four-row cylindrical roller bearings,spherical roller bearings,single,double and four-row tapered roller bearings,spherical ball bearings,thrust ball bearings,thrust roller bearings,slewing bearings,and split bearings,the products are widely used in the fields all over the country, such as port,machine tools,mining,metallurgy,power industry,medical,heavy machinery,coal machinery,cement machinery,petroleum exploration as well as national defence industry.With the right to handle the export.
Company introduction
Luoyang Evon Engineering CO.,LTD is a manufacture of bearings, worm drivers, slewing bearings, gears, shaft and engineering parts. EVON bearings, worm drivers, slewing bearings, gears, shafts prove every day to be important structural and connection elements, they can be widely used in the lifting&transport machinery, mining machinery, construction machinery, port hoisting machinery, port oil transfer equipment, onshore and offshore crane, excavator, concrete machine, paper machine, plastic and rubber machine, weave machine, cement plant, steel plant, electric power plant, wind power generator, other construction and industry machines or equipment and other large rotary devices.
The products made by EVON Engineering Co are mainly exported to the countries of the European Union, USA, the Middle East, the South American, the Africa, Austrilian and Asia areas and the Russian Federation, in the process of cooperation with our customers, we have made it a principle to establish a lasting and rewarding partnership with our customers by providing efficient service with the top quality and minimizing the production cost.
Aiming for consistent commitment to the quality of products and customer service, Evon Engineering attaches great importance to research and development to ensure better product quality and service from its establishment. The quality of EVON products are based on the excellent specialist and technical level of constructors and technicians, highly qualified operators, experiences production workers.
