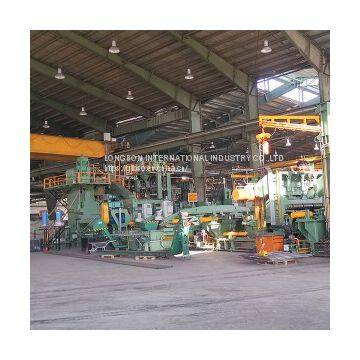

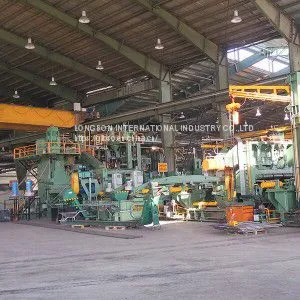

1750 x 16mm and 2000 x 25.4mm type Edge Milling Machines are new equipment recently designed and developed by our company. They were designed based on previously imported equipment, which is successful improvement of the cutter head transmission, row shear and lubrication etc. The products have been put into operation on the spiral welding pipe production line of SINOPEC Shashi Petroleum Steel Pipe Factory. Currently we are designing a high speed edge milling machine for 24 ERW unit.
Technical Data
Wall Thickness: 4-20mm
Steel Sheet Width: 685-2090mm
Material Grade: H40, J55, K55, X40-X80
Cutter Head Diameter: Φ1100mm
Quantity of Cutter Blade: 64 hard alloy cutter blades
Driving Motor Power: 160kw
Maximum Milling Depth: 20mm
Milling Shape: I/V/X Shaped
Maximum Line Speed: 40m/min
