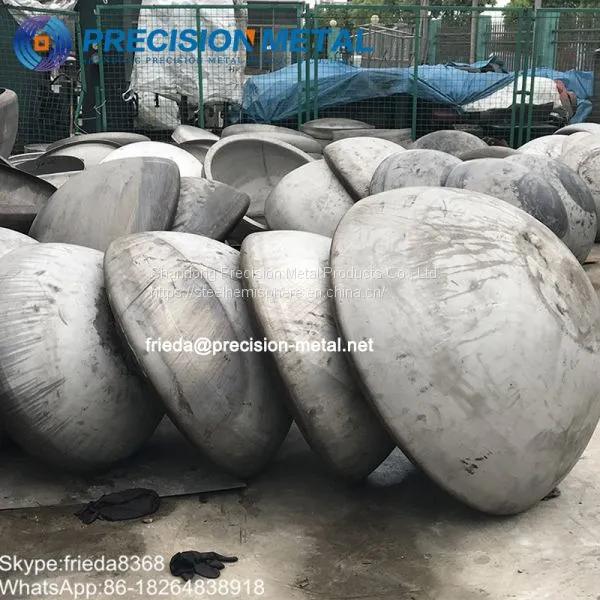

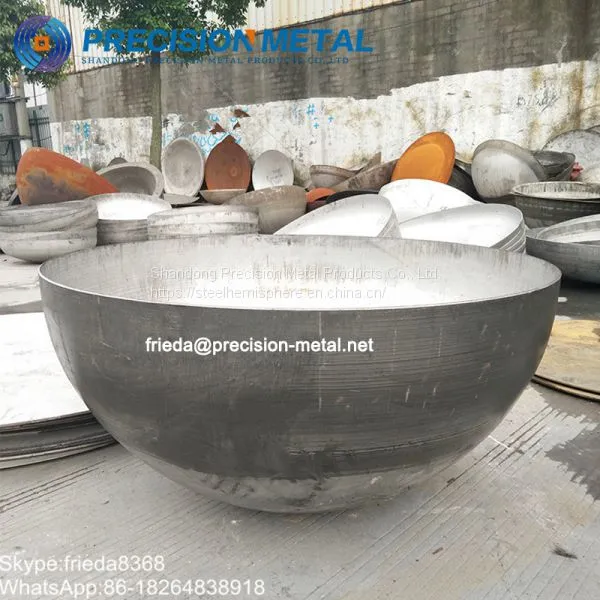

Alibaba Professional High Quality 36" Mild Steel Hemisphere or hemispherical dished head
1. Grade: Carbon steel, Stainless steel, Aluminum,Titanium,etcAccording to customers requirement.
2. Size: 89mm--10000mm
3. Standard: ANSI, ASME ,MSS, API, DIN, JIS
4. Certification: ISO9001 ,ISO14001,OHSAS18001
5.Name:Alibaba Professional High Quality 36" Mild Steel Hemisphere or hemispherical dished head
Material |
Carbon Steel;Stainless Steel; Aluminum; Exotic Alloys; Special Steel... |
Main Products |
Torispherical; 2:1Semi Ellipsoidal; Hemispherical; Flat Bottom; Floating Heads; Tank Heads; Dish Heads; Dished Ends; Pipe Caps.... |
Surface Treatment |
1. Intermediate & Final stage Heat Treatments; |
Technology |
1.Cold & Hot forming ; |
Brade |
Precision metal |
Test |
1. Liquid Penetrant Examination; |
Applications |
Such as oil, chemical industry, water conservancy, electric power, |
Shandong precision metal company is a specialized manufacturer of tank head. With over 15 years of engineered driven expertise ,it is a recognized leader within the tank head industry in china.With unique head forming, fabrication and heat treating capabilities, we offer a diversified range of products. Head diameters is from 3.5" to 393.7'', and Head thickness is from 0.078" to 11.8''. Pressure vessel heads and tank ends are available in a broad range of sizes, shapes, thicknesses and material specifications.
Alibaba Professional High Quality 36" Mild Steel Hemisphere or hemispherical dished head
Picking steel---Cutting---Welding---Heating---Spinning---Stamping---Trimming---Defect detection---QC---Warehousing---Transportation
Ellipsoidal head (also called elliptical head or elliptical dish end) is usually made with Carbon steel, stainless steel, austenitic and non ferritic metals that can be cold worked. The shape of this ellipsoidal head is more economical, because the height of the head is just a fraction of the diameter. The elliptical dish end radius varies between the major and minor axis usually with the ratio is 2:1. The elliptical tank head is the economical solution for medium pressure tanks due to the reduced metal thickness requirement.
The ellipsoidal head has good mechanical properties better than the torispherical head. Due to the application of spinning manufacturing process in recent years, the fabrications of the larger diameter elliptical head is also can be realized. ASME elliptical dished heads are used in the construction of tanks for unfired pressure vessels, such as liquefied petroleum gas and air receivers.
Size range: 50mm-10000mm with integral formed,larger sizes with subsection formed can be specified.
Standard: ANSI, ASME ,MSS, API, DIN, JIS, BS,AWWA
Thickness: 2mm-300mm
Material: stainless steel,carbon steel, aluminum,special steel etc.
Application: mainly for pressure vessels and boilers in diverse industry such as oil, chemical,winery, pharmaceutical, environmental and military.
We offer our products in the following materials:
Carbon Steel: SA36, SA516-70, SA387 Grade 5 Class 2 (Forming Only), SA285 Grade C (Forming Only)
Stainless Steel: SA240T304/304L, SA240T316/316L, SA240T304H (Forming Only), SA240T904/904L (Forming Only)
Copper: O-Temper Material (Forming Only)
Aluminum: O-Temper Material (Forming Only)
Quality assurance
Quality is the most important aspect of strength.We will make the material from the material to the end of the monitoring, making sure that each part can be of high quality according to the regulations.Each program will be monitored to ensure any errors in the manufacturing process.
Competitive price guarantee
With years of experience, we can offer our customers the most competitive prices.At the same time, as a powerful factory, we can offer customers more favorable prices than other factories.
Delivery time guarantee
We will strictly control the manufacturing schedule to ensure punctual delivery.It can satisfy the customer's time schedule and ensure the continuous production of customers.
1. Iron Frame
2. Wooden Box
3. Iron pallet
4.Wooden pallet.
5.Professional fixation
6. Curstomed requirment
A: Thanks for your question. If you have drawings, we will be entirely in accordance with production drawings . If you do not have the drawing, you can tell me the product data. There are several important data, such as material, type of head( We have elliptical head, hemispherical head, dished head, flat head, etc. ),diameter, thickness, special tolerances or requirements. We can do the drawings according to your requirements, and you confirm that the final product drawings.
A:Thanks for your question. For carbon steel products, we sandblasting descaling product surface. For stainless steel products, we use acid to remove surface oil and impurities.
A: Thanks for your question.Our production staff is trained through national quality department, and obtain the corresponding certificate, with years of production and design experience. Weld must undergo X-ray inspection to ensure that no defects.
A: Thanks for your question. Our company also is surrounded by a lot of ancillary businesses, such as flanges, boiler, oil refining equipment, etc. We can help you matching the highest quality products with the lowest prices .
