Name: New automatic end milling machine for window and door making DX05-250D
Model: DX05-250D
Function:
DX05-250D is the main machine of aluminum window door fabrication machine equipment, which is used for end face milling work for aluminum.
comparation with DX05-250C function, DX05-250D feeding work is achieved by lead screw which is smooth and steady.
This aluminum end face milling machine has three high quality motors and four end milling cutters. The cutter thickness can be customized according to user actual condition.
The end face milling depth and position can be adjusted by machine location device and circular handle. No need changing the end milling cutters. It can save the time and cost.
Its precision main shaft can ensure accurate and steady processing. The large workbench can end face milling 6-12 Pcs aluminum window doors profile at one time.
It adopts air-liquid cylinder which can ensure the feeding speed steady and slow while the returning speed steady and fast.
According to user requirement, this machine is installed safety cover which can keep the operator safety in maximum limitation.
France Schneider/ Chinese CHNT electric parts are installed on this end face milling machine for aluminium. This aluminium window frame making machine uses Japan SMC/ Chinese Easun pneumatic parts.
This aluminum window door fabrication machine equipment is suitable for batch production.
Technical Parameters:
Harshness | Ra12.5 µ m |
Power Supply | 380V 50HZ |
Power Rate | 4*2.2KW+0.55kw |
Power Rotary speed: | 2800rpm |
Air pressure | 0.5-0.8Mpa |
Diameter of milling cutter | 250mm*32mm/ 300mm*30mm |
Max. End Milling Scope (Height*Width) | 120mm*530mm |
Overall dimension | 2900mm×1100mm×1640mm |
Weight | 1000Kg |

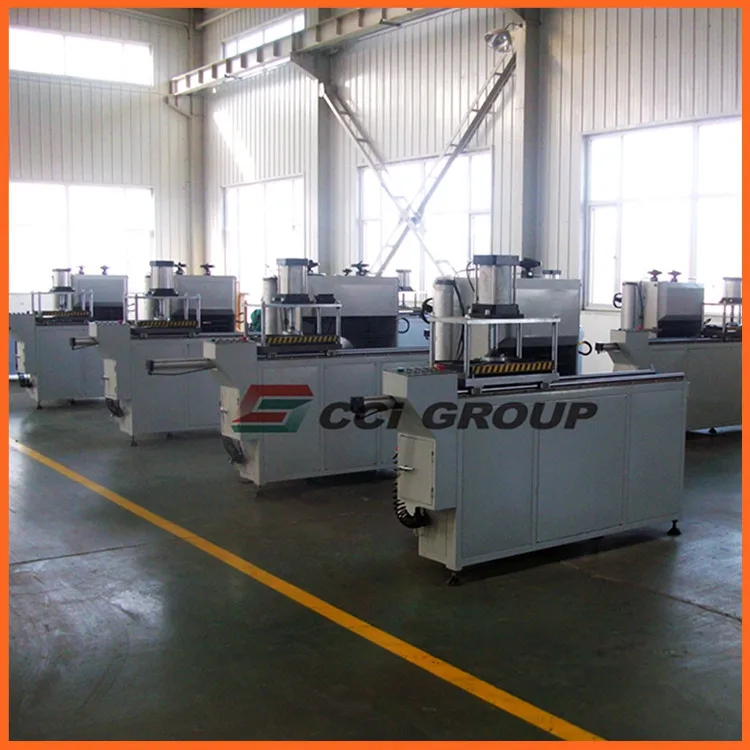

New automatic end milling machine for window and door making DX05-250D
--picture in factory

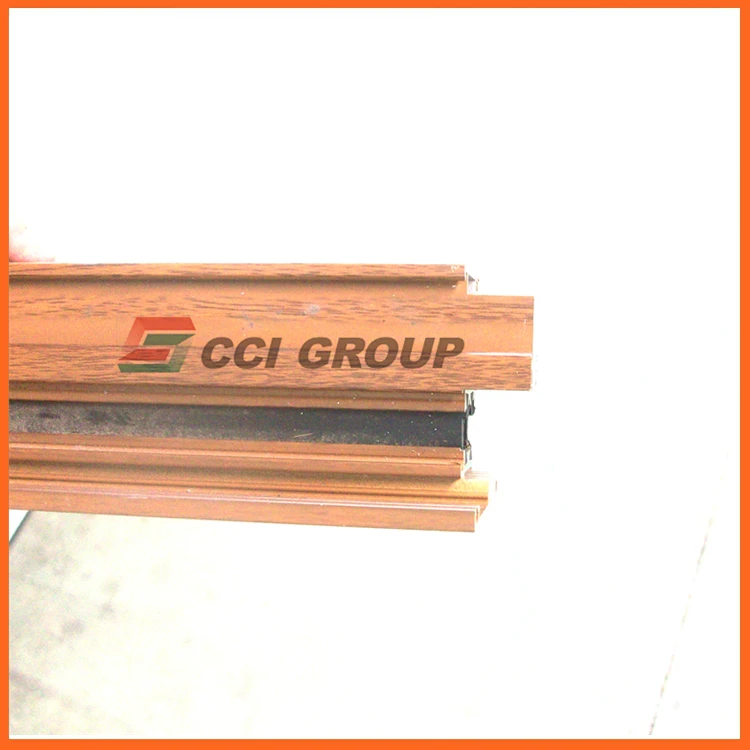

New automatic end milling machine for window and door making DX05-250D
--End Milling Effects

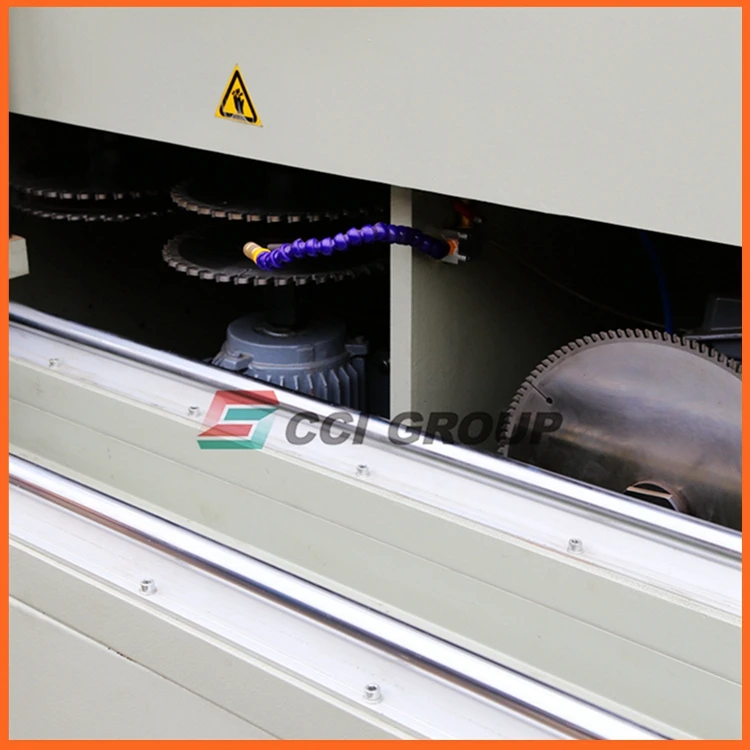

New automatic end milling machine for window and door making DX05-250D
--Five pcs end milling cutters and Four Shafts
CCI produce high quality machines, also pay attention to package. The machines will be packed with standard export wooden case, to make sure customer will receive the machines they ordered Intact.
Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.
We have our own spare parts warehouse for window door machines and insulating glass machines.
We can reply for every customers within 24 hours.
By offering this support, we make sure the cutomer start the business smoothly, to realise win-win cooperation.
CCI always looking for long term cooperaion, not one time deal.
As a path breaker in windoor machines of China, CCI Group creates and develops the brand-new high quality window machines and Insulating Glass Machines with 23 years hard working. Our aim is the best windoor machines and insulating glass machines manufuctuer from China.
Attaching much importance to quality and taking management and technology development as the impetus, CCI Group tacks the culture of operation excellence, and has obtained ISO9001-2000 edition and CE Qualification successively.
So far CCI Group has more than thirty offices around China, and has built many a foreign office, such as in Canada, Kazakstan, Vietnam and etc.
Now CCI Group has become the all-around equipments manufacturer, producing more than one hundred products, which includes PVC Window Door Processing Machines, aluminum windows doors fabrication assemble machine, Aluminum Curtain Wall Processing Machine and Insulating Glass Processing Machines.
We would like to expand our cordial cooperation with you for better future.
CCI is the best choice you can choose.
A. Question: Is CCI factory?
Re: Yes. our company CCI is factory.
CCI is window door machines and insulating glass machines manufacturing expert since year 1991. We passed CE european standard on year 2002.
B. Question: How is CCI guarantee?
Re: b1. warrenty period is 24 months after BL time;
b2.12 hours technical support feedback;
b3. Own window factory supply window fabrication support;
b4. Own machining factory, which can control the spare parts quality at high quality;
b5. Own accessories warehouse and user can enjoy the agent price.
C.Question: How is the aluminum windows doors fabrication assemble machine delivery time?
Re: We can delivery the machines within 7 days if we have the machines in stock.
The common machine fabricating time is 3-7 days and CNC machine fabricating time is about 7-12 days.If you have customized products, the delivery time will be given after confirmation.
D. Question: How is payment?
Re: 30% of amount as deposit and the balance should be paid by T/T or LC at sight before seller delivery the machines to loading port.
E.Question: How is our package?
Re: Wooden Pallet/ Wooden Case. In order to ensure high quality products precision, the perfect package is necessary.
F. Question: Why is price higher than other supplier?
Re: f1. We have our own machining factory and the high quality technical quality is our aim;
f2. All the electric parts and pneumatic parts are high quality. Most of them are imported from european and american market;
f3. Most of fabricating worker has more than 10 years working time. Their fabricating work is professional and salary is higher;
f4. Our warrenty period is 24 months after BL time. It can support the new comer client going well in the beginning time.
Contact Us
If you are window fabricator, looking for aluminum window door fabrication machine equipment for end face milling,
If you have interest to set up aluminium door and windows as your new business,Or you have any questions about window machine,
All the parts of machine can do some changes to meet your requirements.Any details information or help you want, please contact with me.
