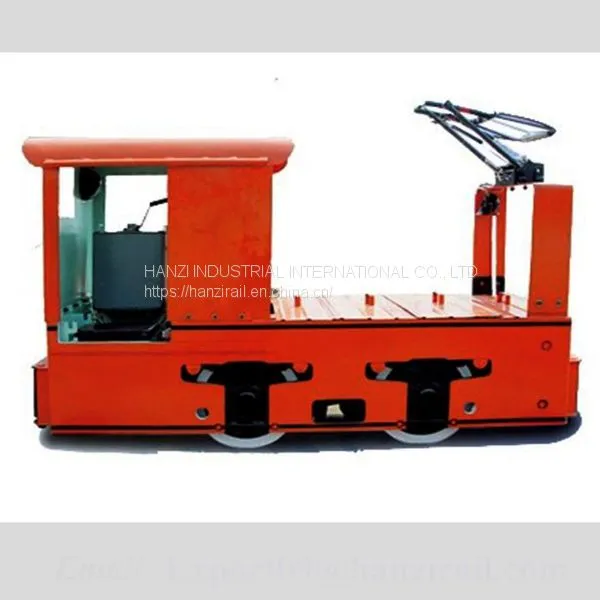

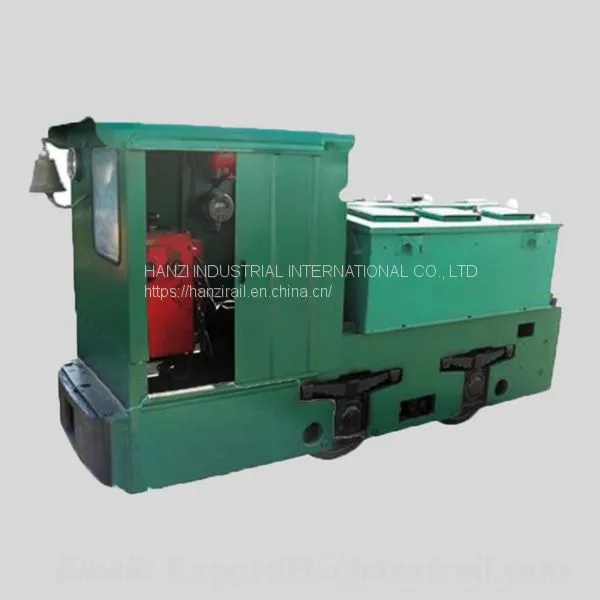

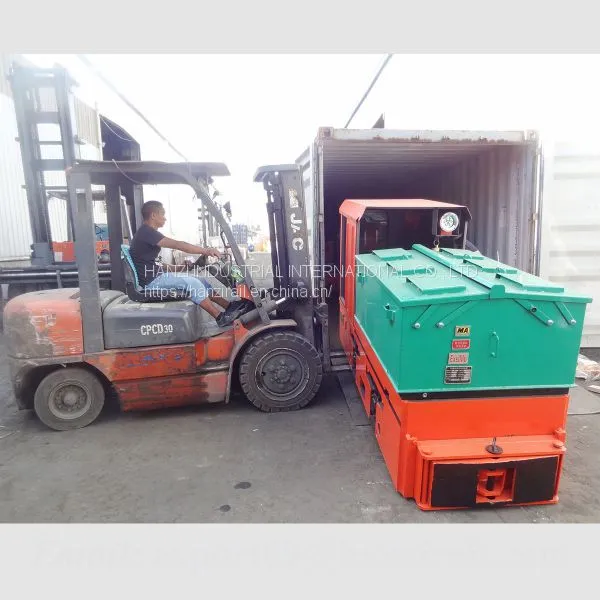

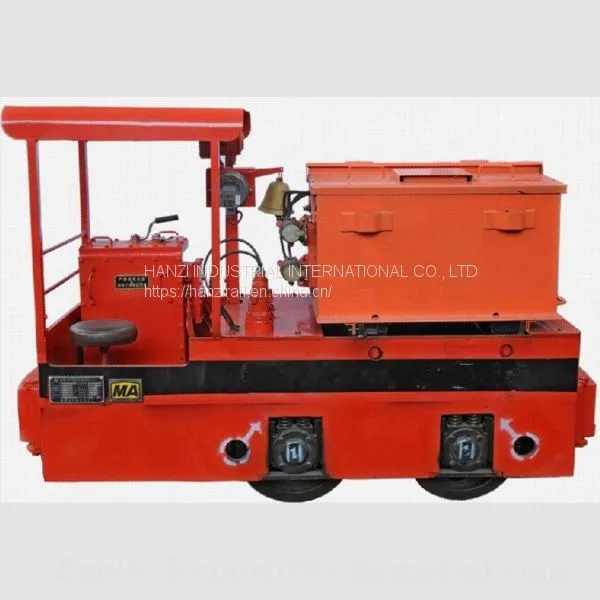

Railway Locomotive Battery Electric Locomotive for Pulling Wagons
- 500 Set / Sets per Month
- Tianjin/Shanghai
- T/T L/C
- 7 days
- Rail Alignment Frames for aluminothermic welding
- Hydraulic Rail Bending machine Rail straightness machine
- Hydraulic rail tensor for track maintenance
- Digital Rolling stock wheel back to back gauge for wheel inspection
- Digital Precision Rail Welding Straight Edge Gauge Ruler for Rail Alignment
- Track Trolley for railway transporting
Product Details
Brand Name: | Hanzi | Place of Origin: | China | Model Number: | locomotive |
Type: | Other |
Product Description
5Ton Battery Locomotive | |
Model | CTY5 |
Total Weight(T) | 5 |
Track Gauge(mm) | 500, 600, 762, 900 |
Traction(KN) | 7.06 |
Max Traction(KN) | 12.26 |
Speed(km/h) | 7 |
Max Speed(km/h) | 14 |
Battery Voltage(V) | 90 |
Battery Capacity(Ah) | 330/385 |
Power(KW) | 7.5*2 |
Length(mm) | 3100 |
Width(mm) | 1034, 1082, 1220 |
Height(mm) | 1550 |
Coupler Height(mm) | 210/320 |
Wheelbase(mm) | 850 |
Wheel Diameter(mm) | 520 |
Min Curve Radius(m) | 6 |
Controller | Resistance or IGBT |
Braking Method | Mechanical Brake+Electrical Brake |
Application: Narrow rail gauge
Service: Tranaportation in mining ,tunneling and related construction
There are two kinds of electric locomotives: 1.battery electric locomotives 2.trolley electric locomotives |
Hanzi Industrial Shanghai Co., Ltd specializes in manufacturing railway accessories. As an ISO certified company,we have a large selection of track accessories and tools to fit your needs: Steel Rail, Rail Clip, Fishplate(Joint Bar), Baseplate, Rubber Pad, Rubber Crossing Plates, Screw Fasteners, Rail Clamps, Rail Anchors, Turnout,Wagons,etc.
As an Alibaba Trade Assurance Member, it means you will get 100% payment refund up to Trade Assurance Amount if we can’t meet agreed delivery and quality terms contained in the contract. It is a free service for both of us. Thus you can place order to us with confidence.
Our locomotive users include railroads construction, mining companies,heavy industries, overhead crane, railroad and tunneling industry, transit authorities, subway, passenger railway and operators of port facilities,etc. You are most welcomed to contact with us for more information.
