Help CenterEDS Series Displacement Sensors
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
ElastiSense
Place of Origin:
Denmark
Model Number:
EDS Series
Payment & Shipping
Payment Methods:
Port of Shipment:
HK
Delivery Detail:
7 days
Related Products
-
SG01L-5LENS Concentrator Lens SiC Based UV PhotodiodeUS$ 0.01 - 0.1MOQ: 1 Piece -
BJ-62-1A Stand-combustible Gas DetectorUS$ 0.001 - 0.01MOQ: 1 Piece
-
IoLine-TrisB IoLine Tris Compatible pH ElectrodesUS$ 0.001 - 0.01MOQ: 1 Piece
-
TCS2000 Toroidal Conductivity SensorsUS$ 0.001 - 0.01MOQ: 1 Piece
-
NH3-A1 Ammonia Sensor (NH3 Sensor)US$ 40 - 100MOQ: 1 Piece
Brand Name
ElastiSense
Place of Origin
Denmark
Model Number
EDS Series
Usage
Other, Displacement Sensor
Theory
Other, Position Sensor

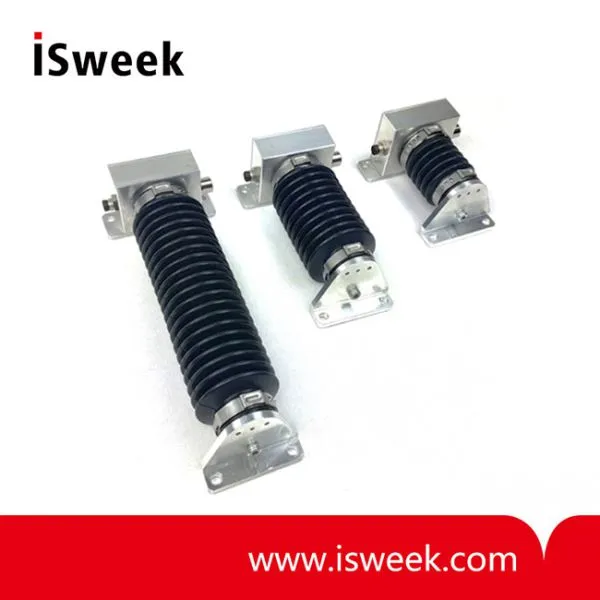

EDS Series Displacement Sensors Description
Our displacement sensor may either be used as a standalone unit or as a part of a system together with other daisy chained sensors. In stand- alone mode the sensor requires 24VDC supply and outputs an analogue current in the range of 4-20mA. The output signal is linearly proportional to the displacement i.e. 4mA corresponds to 0mm and 20mA represents the maximum displacement of the sensor.
The flexible nature of the sensors enables off-axis displacements measurements in all three directions.
EDS Series Displacement Sensors Specifications
| Model |
EDS20 |
EDS50 |
EDS100 |
EDS200 |
| Measurement range (mm) |
20 | 50 | 100 | 200 |
| Power supply |
24V DC |
|||
| Analogue output |
4 - 20mA (1 - 5V or 2 - 10V available as options) |
|||
| Digital output |
Integer value in nm transmitted on full duplex RS485 network |
|||
| Absolute accuracy |
0.1% Full Scale |
|||
| Power consumption |
||||
| Update rate |
Up to 10k samples/second |
|||
| Operating temperature |
-20°C to 80°C |
|||
| Operating humidity |
5%RH to 80%RH |
|||
| Ingress protection |
IP63 |
|||
| Dimension A (mm) |
77 | 116 | 185 | 315 |
| Dimension B (mm) |
63 | 102 | 171 | 301 |
