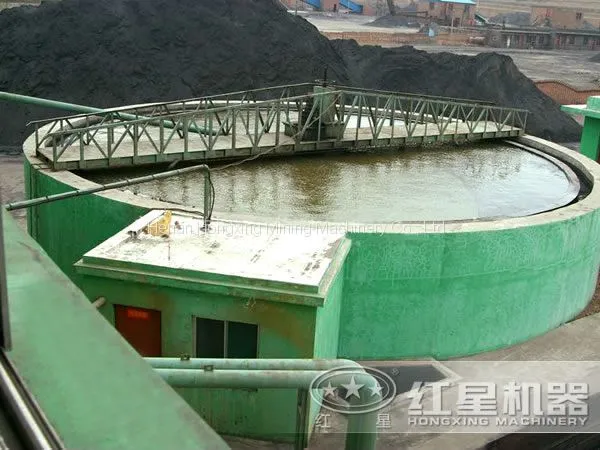

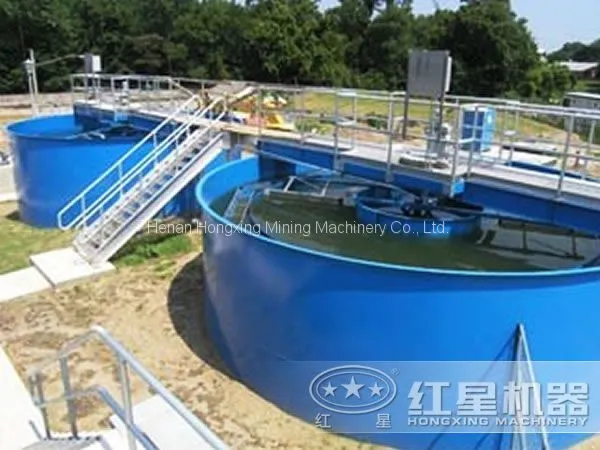

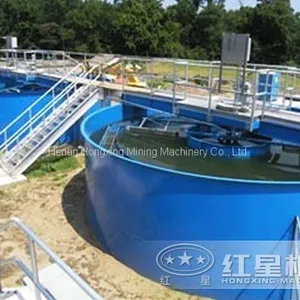

High Efficiency Concentrator

The high efficiency concentrator produced by our company is suitable for removing the water in the ore concentrate and the tailings in the ore beneficiation plant and it can concentrate the ore pulp from 20-30% to about 40-70%. This high efficiency concentrator is widely used in metallurgy, chemistry, coal, non-metal ore beneficiation and environmental protection industry.

(1) Add flocculating agent to increase the grain size of the falling solid particles to accelerate the falling process.

(2) Install an inclined board to shorten the falling distance of the ore particles and increase the falling area.

(3) Perform the functions of flocculating, filtering, concentrating and improving the processing quantity.

(4) High efficiency concentrator is equipped with comprehensive automatic control device.

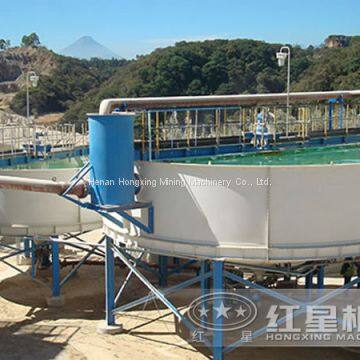

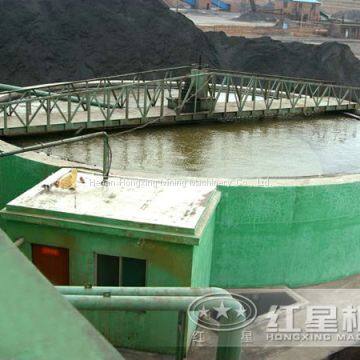

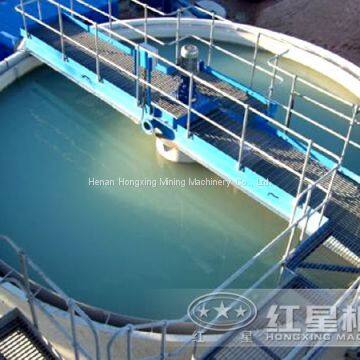

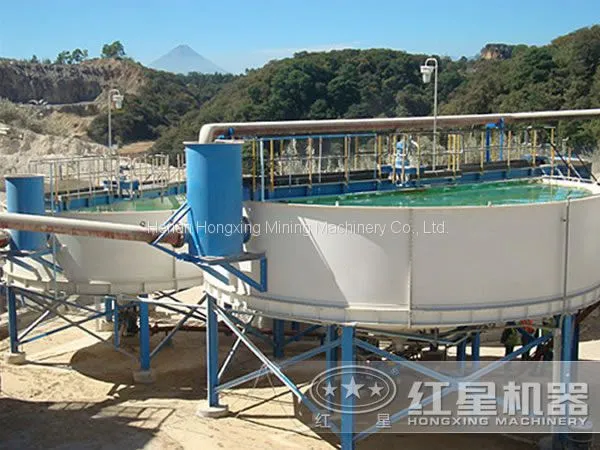

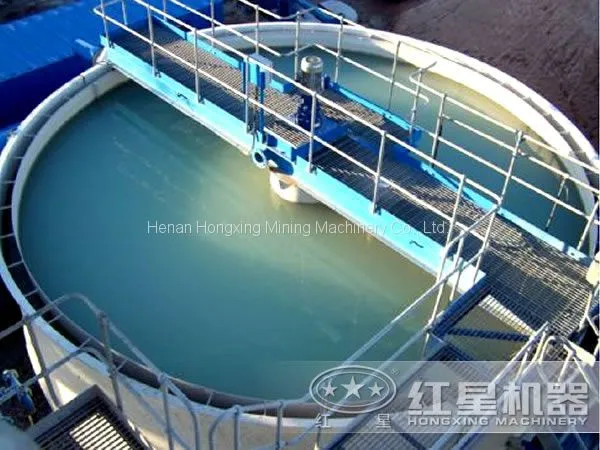

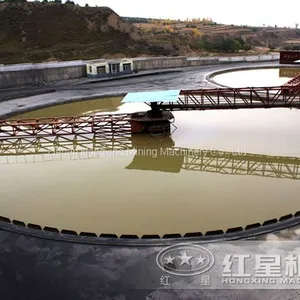

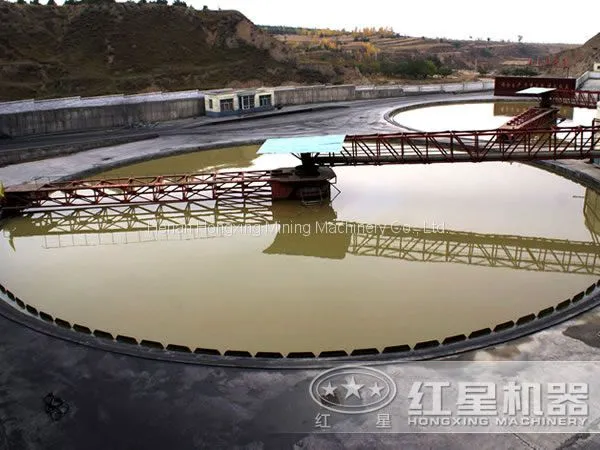

The high efficiency concentrator is mainly composed of round concentration basin and rake scraper. The solid particles hanging in the ore pulp of the concentration basin fall under the gravity and the upper part will be clear water, so that the solid particles will be separated from the liquid. The slurry deposited on the bottom of the concentration basin is continuously scrapped by the rake scraper to central discharging port of the bottom of the basin and discharged, and the clear water will overflow along the upper edge of the concentration basin.
