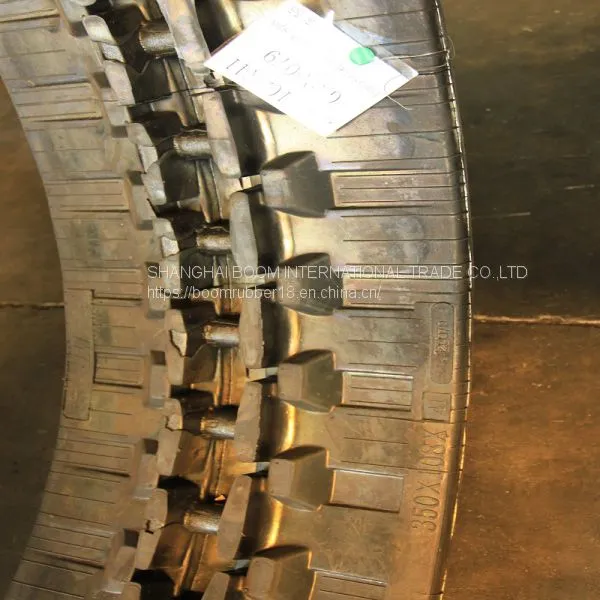

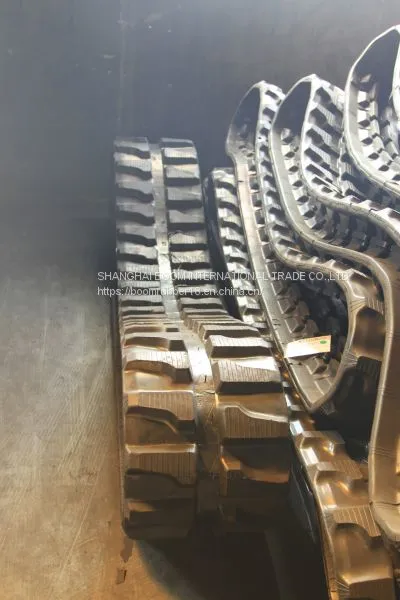

Jcb804 Jcb804 Plus/Super Excavator Rubber Tracks 350X108X41

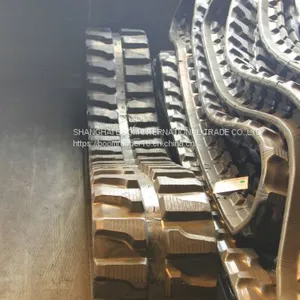

Jcb804 Jcb804 Plus/Super Excavator Rubber Tracks 350X108X41 thumbnail-1
Jcb804 Jcb804 Plus/Super Excavator Rubber Tracks 350X108X41 photo-1
US$ 365 - 365 MOQ: 2 Pieces
Key Specifications
Get Latest Price
Brand Name:
BM
Place of Origin:
China
Model Number:
350*108*41
Contact Supplier Request Quote Chat Now
Shanghai Boom International Trade Co.,ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name BM
Place of Origin China
Model Number 350*108*41

JCB804 JCB804 PLUS/SUPER Excavator Rubber Tracks 350X108X41 made in china
1) Made from multiple special and natural rubber
2) Low noise & vibration
3) Nice wear resistance
4) Strong traction

1. More detailed information about JCB804 JCB804 PLUS/SUPER Excavator Rubber Tracks 350X108X41

Warranty   2000hours
 Size   350*108*41
Payment  T/T L/C PAYPAL
MOQ 2PCS
Packing In strong fumigate wooden pallet packing or according to your requirement

2. More Parameters

Size Weight for Each Link Size Weight for Each Link Size Weight for Each Link
130*72 0.36 WD300*72 1.459 400*144 7.75
150*60 0.52 B300*84 2.88 400*144Y 7.41
150*72 0.55 T300*86 3.13 420*100 5.3
170*60 0.48 300*109KW 3.38 450*71 4.45
180*60 0.56 K300*109 3.56 DW450*71 4.82
180*72 0.64 300*109N 3.32 450*73.5 4.57
180*72K 0.87 300*109W 3.21 450*76 5.27
H180*72 0.77 320*52.5 1.69 450*81.5 5.24
190*60 0.59 320*54 1.81 450*81N 5.19
190*60 0.59 B320*84 2.95 450*81W 5.02
190*72 0.72 B320*86 2.99 450*83.5 5.47
200*72 0.84 B320*86SB 2.99 450*83.5Y 5.67
200*72K 1.07 B320*86C 3.01 450*84 4.22
230*48 0.87 B320*86Z 3.12 B450*86 4.33
230*48K 1.06 B320*86CM 3.01 B450*86SB 4.3
230*72 1.09 B320*86R 2.99 B450*86C 4.31
230*72K 1.34 T320*86 3.22 B450*86Z 4.51
230*96 1.77 T320*86MB 3.3 B450*86CM 4.37
230*101 1.92 T320*86SB 3.27 B450*86R 4.3
250*47 1.11 T320*86C 3.25 450*90 4.07
250*48.5 1.13 T320*86Z 3.53 KU450*90 3.9
250*52.5 1.04 320*90 2.85 450*110 6.9
250*52.5K 1.31 320*100 2.67 T450*100MB 5.3
250*72 1.17 320*100W 3.01 T450*100 5.09
B250*72 1.03 320*106 3.63 T450*100SB 5.16
250*96 2.21 350*52.5 1.85 T450*100C 5.2
250*109 2.39 350*54.5 2.31 T450*100Z 5.55
260*55.5 1.48 350*56 2.05 450*163 10.47
260*96 1.91 350*75.5 3.58 485*92W 7.62
260*109 2.16 350*90 1.85 500*71 7.5
280*72 1.43 350*100 3.69 500*90 5.38
280*106 3.05 350*108 3.92 500*92 7.81
300*52.5KB 1.67 350*109 4.12 500*92W 8.6
300*52.5KW 1.71 370*107 4.68 500*100 6.34
300*52.5N 1.44 400*72.5KB 3.44 500*146 9.97
300*52.5W 1.56 400*72.5KW 3.72 600*100 8.3
JD300*52.5N 1.54 400*72.5N 3.48 600*125 10.39
K300*52.5 1.72 400*72.5W 3.85 650*110 13.34
KB300*52.5N 1.55 400*72.5Y 3.62 650*120 13.75
300*53 1.81 400*74 3.4 650*125 15.8
300*55 1.88 400*75.5 4.09 700*100 10.9
300*55.5 1.95 400*86 4.14 700*125 14.29
300*71 3.31 400*90 2.22 750*150 21.34
300*72 1.77 400*107 4.95 800*125 19.14


400*142 7.12 K800*150 21.55
ASV TRACK


M800*150 20.05
280*102*37 1.36 PAVER TRACK
900*150 31.23
380*102*42 1.9 356*152.4*46 4.81 1000*150 33.3
460*102*51 2.41 483*152.4*52 6.07

460*102*56 2.49 460*225*36 7.79 SPECIAL TRACK
460*102C*51 2.44

6"*3.5"*28 0.41
510*102*51 2.6

10"*3.5"*28 0.51


Our Rubber Track are prepared with natural rubber. It possesses very good properties of wear resistance, tear resistance and non-disintegration etc. The adhesion between the rubber and the steel frame is very strong, the replacement is convenient an the service life is long,it is suitable for various vehicle like excavator,pavers,bitumen transportation trucks etc.

Type of rubber tracks:
1, Bolt on type
2, Bolt on type with steel bottom
3, Chain ontype
4, Clip on type
5, Pavers rubber pad

The feature of rubber tracks:
(1). Less round damage
Rubber tracks cause less damage to roads than steel tracks, and less rutting of soft ground than either steel tracks of wheel products.
(2). Low noise
A benefit to equipment operating in congested areas, rubber track products less noise than steel tracks.
(3). High speed
Rubber track permit machines to travel at a higher speed than steel tracks.
(4). Less vibration
Rubber tracks insulate machine and operator from vibration, extending the machine's lifetime and lowering operate fatigue.
(5). Low ground pressure
The ground pressure of rubber tracks equipped machinery can be fairly low, about 0.14-2.30 kg/ CMM, a major reason for its use on the wet and soft terrain.
(6). Superior traction
The added traction of rubber, track vehicles permits them to pull twice the load of wheel vehicles of the sane weight.

Product Tags: Excavactor Rubber Tracks , Rubber Crawler , Jcb Excavator Parts
