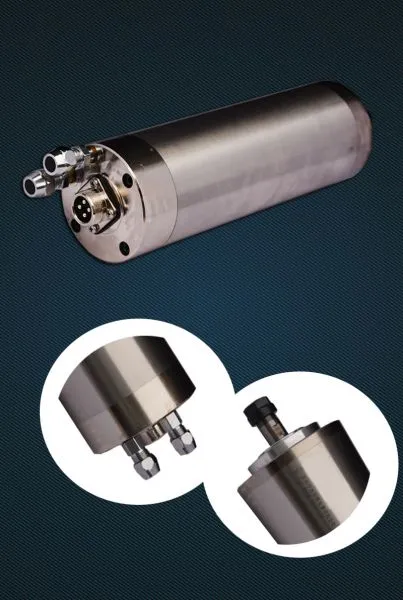

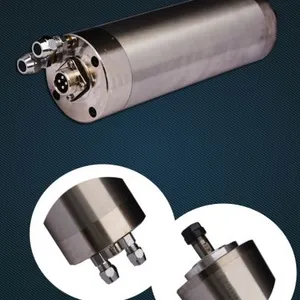

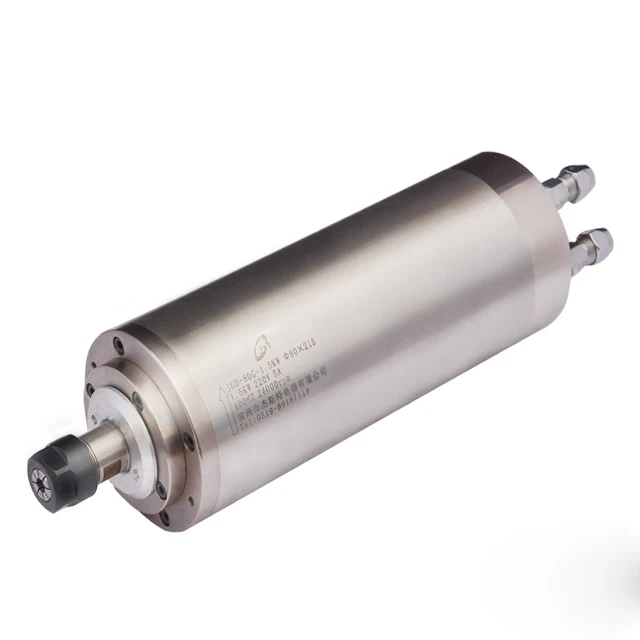

Help Center1.5KW Spindle Motor Water Cooling Electric Spindle for CNC Router
Related Products
-
2.2KW Spindle Motor Water Cooling Electric Spindle for CNC RouterUS$ 100 - 120MOQ: 1 Set -
3KW Spindle Motor Water Cooling Electric Spindle for CNC RouterUS$ 175 - 180MOQ: 1 Set
-
Easy Servo Series (closed Loop Series) Stepper MotorUS$ 50 - 80MOQ: 1 Set
-
5.5 KW Automatic Tool Change Spindle Motor Water Cooling Electric Spindle for CNC RouterUS$ 1120 - 1140MOQ: 1 Set
-
Compact CNC RouterUS$ 4300 - 4900MOQ: 1 Set
Place of Origin:Jiangsu, China (Mainland)
Brand Name:Electrical spindle
Model Number:JGD-80G
Application:Milling
Drive:Pneumatic
Operating Speed:24000rpm
Power:1.5KW
Voltage:220V/380V
Frequency:400Hz
Cooling:Water Cooled
Name:Electrical spindle
Brand:JST Electrical spindle
Collet:ER16
Weight:5KG
Speed:24000 Rpm
Current:6A
ABOUT US
Electro-spindle was established in 2006, during the last 10 years developing, we now have over 100 members and 8 technology engineers who work together to provide our clients more better electrospindles. So far we have researched two kinds of electrospindle, manual tool change and automatic tool change respectively. Meanwhile, we always keep attending the related fairs or exhibitions which are opened in Germany and Italy, we visited them and learnt from them, such as HSD company and OMLAT company.

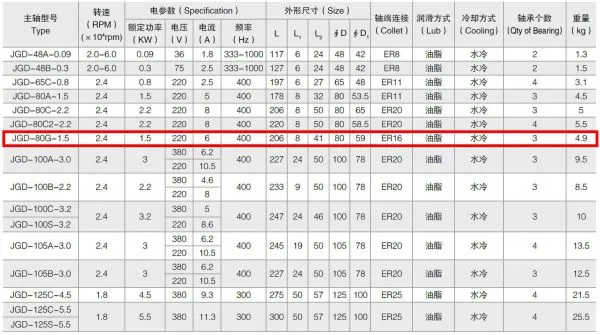

PRODUCT DETAILS
| ELECTROSPINDLE | JGD-80G |
| POWER | 1.5kw |
| MOTOR TECHNOLOGY | Asynchronous |
| TOOL RELEASE | Pneumatic |
| RATED VOLTAGE | 220/380V |
| OPTION ENCODER | LB 1 Vpp or TTL |
| POLES | 2 |
| FRONT/REAR BEARINGS | Ceramics |
| BEARINGS LUBRICATION | Oil Grease |
| MAX FREQUENCY | 300/400Hz |
| MAX SPEED | 24000RPM |
| COOLING | Water-cooling |
| COLLECT | ER16 |
