Product Details
Brand Name: | Shelok | Place of Origin: | China | Model Number: | SLK-FM4003 |
Product Description
hot sale mini Air flow mass sensor meter
Description hot sale mini Air flow mass sensor meter:
Air flow sensor mass meter are designed for applications in gas flow within a flow channel diameter of 3 mm and 8 mm, respectively. The compact design provides user friendly installation for multiple flow channel sensing requirements. Plastic finishing with an easy change of the mechanical adaptors enables applications with different connection thread requirements or one-touch approach. The meters can be used for electronic meters in anesthesia equipments, environmental samplers and many other industrial applications.
The meters can be customized with flow range, gas specific requirements, user interface and others upon requests to the manufacturer.
Specification hot sale mini Air flow mass sensor meter:
Parameters | MF4003 | MF4008 | Unit |
DN | 3 | 8-12 | mm |
Flow range(Max.) | 2,3,4,5 | 10,20,30,40,50 | SLPM |
Measuring range ratio | 100:1 | ||
Accuracy | ±1.0 | % | |
Repeatability | 0.25 | % | |
Zero output drift | ±30 | mV | |
Output drift | ±0.12 | %/℃ | |
Response time | 10 | ms | |
Working power | 8-24vdc ,50mA | ||
Output | RS485/0.5-4.5VDC | ||
Display | 4 7-segment LED digital display, two lights | ||
Indicator unit | Instantaneous flow: SLPM; cumulative flow:SL | ||
Display resolution | 0.001,0.01,0.1 | 0.01,0.1 | SLPM |
Flow pressure loss(Max.) | 100 | 600 | Pa |

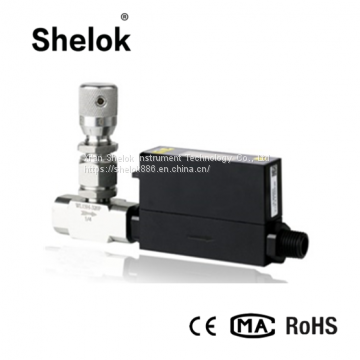

Detailed Images hot sale mini Air flow mass sensor meter:
Air flow sensor mass meterAir flow sensor mass meterAir flow sensor mass meter
Air flow sensor mass meterAir flow sensor mass meter
Features hot sale mini Air flow mass sensor meter:
1.A variety of connections, easy to install and use.
2.Output flexible, you can take the initiative to upload data through the communication interface.
3.LED display instantaneous flow and cumulative flow, allowing the scene with the key configuration flow parameters.
4.Can record the maximum and minimum instantaneous flow, with over-range function.
5.Full range of high stability, high precision and excellent repeat-ability
Application hot sale mini Air flow mass sensor meter:
Aeration cable
Gas generated plasma monitor
Vacuum applications
Preservation of oxygen devices
Anesthesia
Ventilator
Ventilation equipment detection devices
Other industrial applications such as welding
Air flow sensor mass meter
