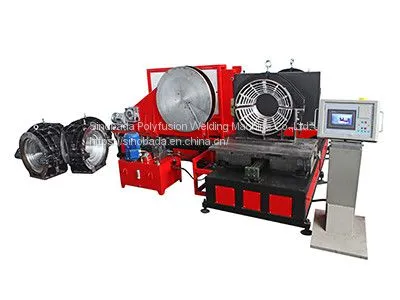

Help CenterSD-AF450 Angle Fitting Welding Machine
Related Products
Application and features :
※ Applies in the workshop production of PE, PP, PVDF elbow, equal tee, four-way such as diameter, extended injection short pipe fittings, production pipe assembly; 45 ° and 60 ° y-shaped tee (Y type tee needs to choose and buy of 45 ° and 60 ° y-shaped three-way welding jig);
※ Integration structure design, different welded pipe need to change the corresponding fixture can;
※ The heating plate temperature control system independently, teflon coating;
※ Electric cutter, safety limit switch, prevent accidental start milling cutter;
※ Low start-up pressure, and high reliability sealing structure;
※ Independent dual channel timer, can record the two periods of heat and cooling, timing alarm over, convenient for the user.
※ Big dial, high-precision shock pressure, more readings clear;
※ The heating plate, cutter adopts tilting, convenient operation;
※ Products comply with 98/37 / EC and 73/23 / EEC standards.
Optional components:
※ Short flange welding special fixture.
※ Short pipe welding special fixture
※ 45 °, 60 ° y-shaped three-way welding jig
The Main parameters:
Model |
SD-AF450 |
|
Pipe sizes (mm) |
200,225,250,280,315,355,400,450 |
|
Applications |
0~90°Elbow, tee, cross, 45° and 60° wyes(optional parts should be used) |
|
Heating plate Max. Temp. |
270℃ |
|
Temp. deviation in surface(170~250℃) |
±7℃ |
|
Pressure adjustable ranges |
0～16MPa |
|
Working voltage |
380V,50Hz |
|
Heating plate power |
12.2KW |
|
Hydraulic unit power |
2.2 KW |
|
Planing tool power |
3.0 KW |
|
Total power |
17.4KW |
|
Weight |
2850KG(Don`t include optional parts ) |
|
Packing |
Cases |
4 Plywood Cases |
Volume |
14.66 CBM |
|
EN ISO 1200-1,EN 1200-2,EN 1050,60204-1
