Vertical High-speed Labeling Machine

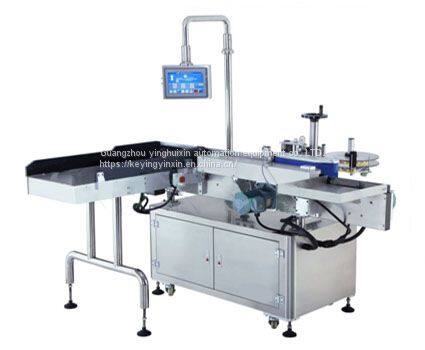

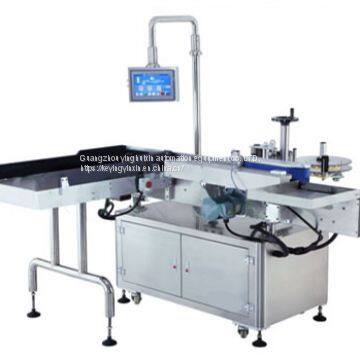

YN-350 Vertical high-speed labeling machine

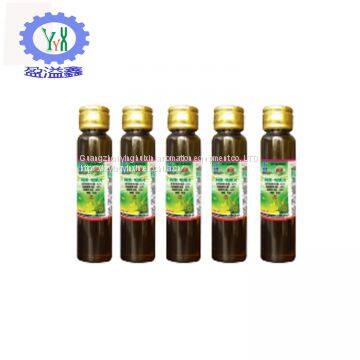

YN-350 is suitable for automatic adhesive labeling pharmaceutical, cosmetic, food and other industry bottles or other small diameter round smaller bottles objects.

●One machine can be used for automatic labeling objects with dofferent diameters and different heights.

●Our experienced technical team will design and produce the machine according to the special requirements.

Features：

● The touch screen: operate easily, intuitive,with extensive helpful function and display its fault.

●Storing labeling parameters : Preset 50 groups of labeling parameters (including bottle’s diameter and label’s length), it will not need to reset when changing the bottle .

● Putting and collecting device: can choose to use the feeding(collecting) material panel or directly connect with production line when operate the single machine.

●Printing Equipment:flexible matching thermal transfer, hot stamping printer or Coding machine, complete code synchronization and labeling at the same time.

●Automatic detection: can increase machine vision inspection system, detect the printing date and batch number and so on automatically. Effectively prevent paste missed, wrong paste, re-paste and other important issues possible caused by the roll of labels.

● Labeling intelligent management: will alarm or shutdown when labeling is going to run out.

● Imported servo motor control: Unique diamond drive roller structure with good friction, non-skid, ensures labeling accuracy.

● Imported electrical components which is world-renowned brand: Siemens PLC, photoelectric device from Japan, imported motor and inverter, to ensure the machine's stability and reliability.

Main Technical Data：

● Dimension: 2400 * 1620 * 1900mm

● Product Diameter: 12-25mm

● Labeling speed: 300-500 bottles / min (related with the product label size)

● Labeling accuracy: ± 1.0mm (excluding product and label itself error)

● power supply: AC220V, 50 / 60HZ, 500W
