High Voltage LDDQ 3 Core Outdoor Insulation Cable Heat Shrink Termination

High Voltage LDDQ 3 Core Outdoor Insulation Cable Heat Shrink Termination thumbnail-1
High Voltage LDDQ 3 Core Outdoor Insulation Cable Heat Shrink Termination thumbnail-2
High Voltage LDDQ 3 Core Outdoor Insulation Cable Heat Shrink Termination thumbnail-3
High Voltage LDDQ 3 Core Outdoor Insulation Cable Heat Shrink Termination thumbnail-4
High Voltage LDDQ 3 Core Outdoor Insulation Cable Heat Shrink Termination thumbnail-5
High Voltage LDDQ 3 Core Outdoor Insulation Cable Heat Shrink Termination photo-1
High Voltage LDDQ 3 Core Outdoor Insulation Cable Heat Shrink Termination photo-2
High Voltage LDDQ 3 Core Outdoor Insulation Cable Heat Shrink Termination photo-3
High Voltage LDDQ 3 Core Outdoor Insulation Cable Heat Shrink Termination photo-4
High Voltage LDDQ 3 Core Outdoor Insulation Cable Heat Shrink Termination photo-5
US$ 29.5 - 68.5 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
LDDQ
Place of Origin:
China
Model Number:
RS-RST-01
Contact Supplier Request Quote Chat Now
Zhejiang Langdao Electric Co.,Ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo
Delivery Detail:
10 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name LDDQ
Place of Origin China
Model Number RS-RST-01
Type Insulated
Application Heating
Insulation Material PE
Conductor Material Copper
Conductor Type Solid
Packaging & Delivery

  • Packaging Details

  • 1. packing in carbon box
    2.carbon size: 52.1*22.8*24.6 with our own marks

  • Delivery Time

  • 3-20

High voltage LDDQ 3 core outdoor insulation cable heat shrink terminationHigh voltage LDDQ 3 core outdoor insulation cable heat shrink termination

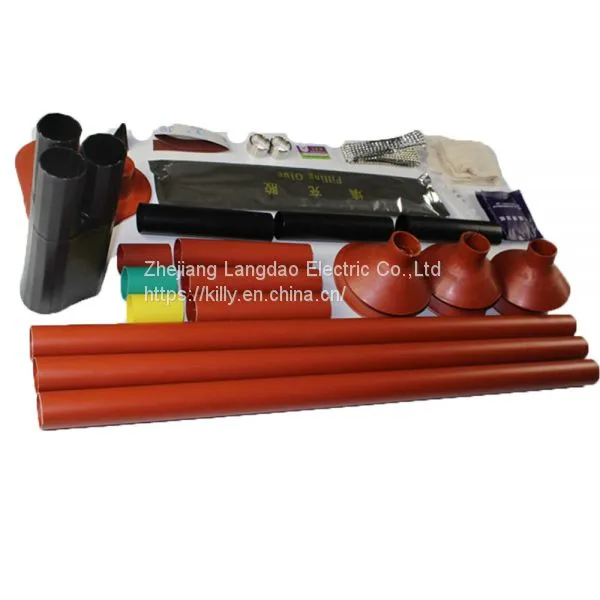

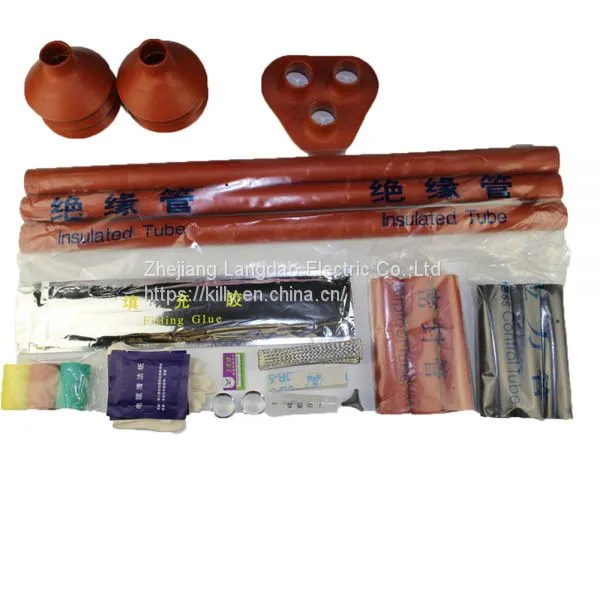

10kV Three-core heat shrinkable cable terminal accessories
 (1) Sealed tube *3  (6) Three core breakot *1  (11) Glove *1
 (2) Insulation tube *3  (7) Ground wire *1  (12) Stress  cone *1
 (3) Phase color tube *3  (8) Cable cleanling paper *2  (13) One core rain shed *6
 (4) stress control *3  (9) Constant force spring *2  (14) Three core rain shed *1
 (5) Blade  (10) Silicone gease *1  (15) Filling glue *1



High voltage LDDQ 3 core outdoor insulation cable heat shrink termination



 Raw Material: PE

     Characterisitic: Eco-friendly, corrosion resistant, non-toxic, temperature resistant.

High voltage LDDQ 3 core outdoor insulation cable heat shrink terminationHigh voltage LDDQ 3 core outdoor insulation cable heat shrink terminationHigh voltage LDDQ 3 core outdoor insulation cable heat shrink terminationHigh voltage LDDQ 3 core outdoor insulation cable heat shrink termination

Radiant cross-linked  heat-shrinkable cable accessories are one of the main products in the domestic cable accessory products, featuring small size, light weight, easy  installation, and low price. heat-shrinkable cable accessories have been widely used in power transmission, metallurgy, mining, petrochemicals, consyruction and other new transmission and distribution projects. Due to the simple installation  process, reliable quality, and welcomed by the majority of users.

Work temperature: the use age is more than 20 years under the -50°C~95°C environment

Shrink ratio:radial direction≥50%, axial direction≤10%

Shrink temperature:120°C~140°C

10kV  Technical Indicators

 Test item                                        Stand requirement

 Working frequency

 voltage test(wet)

  45kV, 1min, no flashover, no breakot
 Partial discharge testing  the discharge less than 20pC under 13kV
 Load cycle test

 heating the conductor to(90-95°C,8h very circle,heat for 5h,

 coor for 3 hours,and circle in 3 times
 Partial discharge testing  the discharge less than 20pC under 13kV
 Impulse voltage test

 105kV, positive and negative for 10 times,

 no flashover, no brakout
 Negative DC voltage test   52kV, 15min, no flashover, no breakot
 Power-frequency voltage test  35kV, 4h, no flashover, no breakot


High voltage LDDQ 3 core outdoor insulation cable heat shrink termination



High voltage LDDQ 3 core outdoor insulation cable heat shrink terminationHigh voltage LDDQ 3 core outdoor insulation cable heat shrink termination


Product Tags: cable heat shrink termination , outdoor cable termination , insulation cable termination
