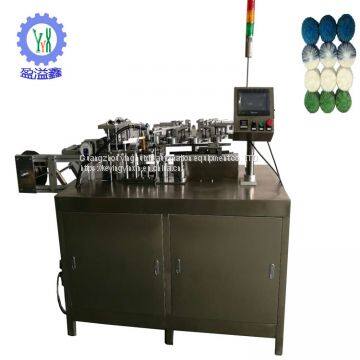

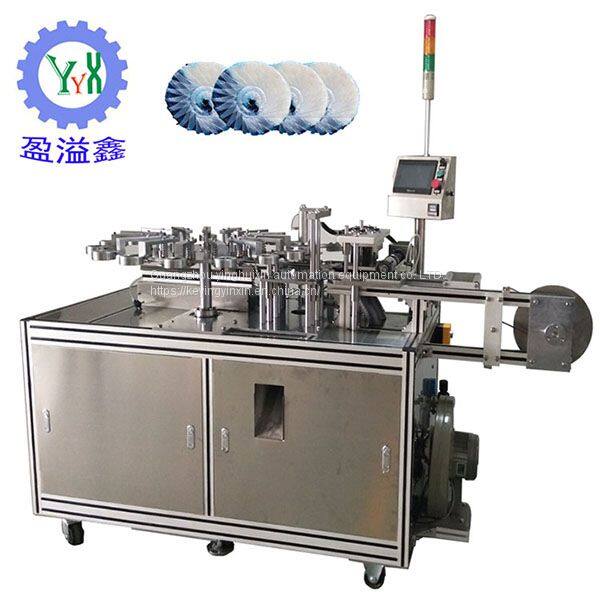

Blue and White Bubble Packing Machine

       Two-colour packing machine

Features：

1. This machine using CAM driving design, operate stable and compact, good  packaging effect, fast packaging speed, the packaging speed can be 60-70 per minute.

2. PLC with man-machine interface touch screen,can intelligent control,convenient to setting parameter.
3. Check the breakdown by itself, and the fault display is clear.
4. Convenient to replace the mould, easy to debug.
5. The transmission system is concise, made the work more reliable, the maintenance more convenient.
6. All control work by the software implementation, convenient to adjust its function and upgrade its technology, wil never be backward.

Application：

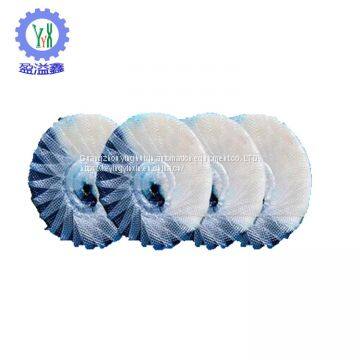

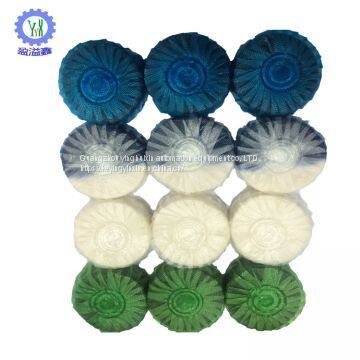

This machine is specially designed for packing two-color soap.Each size match with one mould. It is easy to change. The machine can be connected with production line.It is convenient to use and simple to operate if it dose not connect to the production line only need one person to put the material and finish the packing.

Technical parameter:

Working Speed:60～70pcs/min

Products Size:Diameter:35～65mm  High:15～30mm

Packing Film Size:Packing paper width:80~150mm

Label Size:Diameter:20~40mm

Air Pressure:0.5～0.6Mpa

Power:2.2Kw

Power Supply:AC220V 50/60Hz

Machine Weight:700Kg

Machine Size:2200*1000*1600mm
