Rubber Tracks for Construction Machinery 180*60*30-40

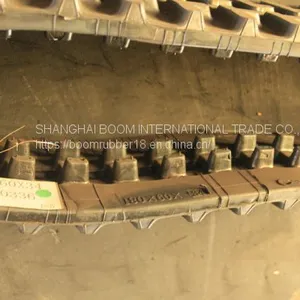

Rubber Tracks for Construction Machinery 180*60*30-40 thumbnail-1
Rubber Tracks for Construction Machinery 180*60*30-40 thumbnail-2

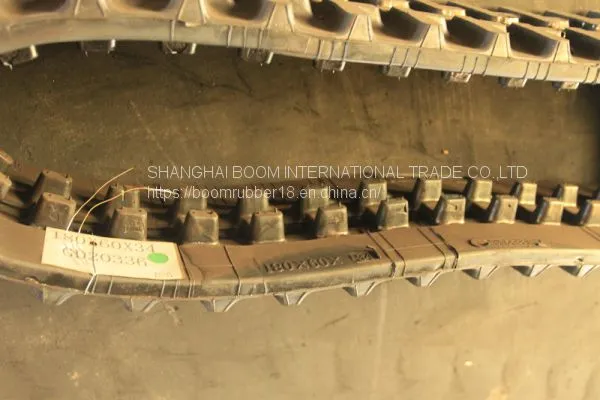

Rubber Tracks for Construction Machinery 180*60*30-40 photo-1

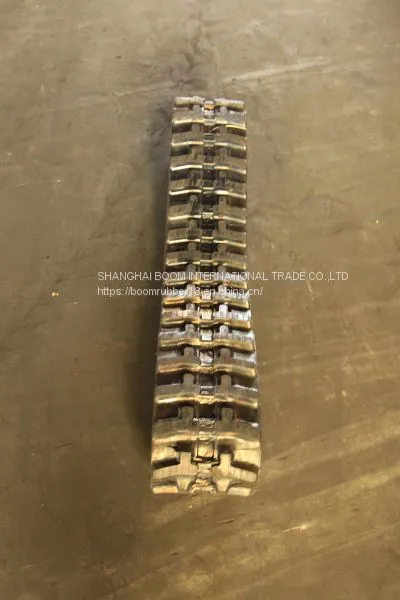

Rubber Tracks for Construction Machinery 180*60*30-40 photo-2
US$ 50 - 60 MOQ: 2 Pieces
Key Specifications
Get Latest Price
Brand Name:
BM
Place of Origin:
China
Model Number:
180*60*34
Contact Supplier Request Quote Chat Now
Shanghai Boom International Trade Co.,ltd
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name BM
Place of Origin China
Model Number 180*60*34

Rubber Tracks for Construction Machinery 180*60*30-40

1.Detalied Product Description
1). Continuous rubber track
2). Conventional type or interchangeable type rubber track
3). Warranty: guarantee one year under normal use
4). Application: mini-excavator, bulldozer, dumper, crawler loader, crawler crane, crawler carrier vehicle, agriculture machinery, paver and other special machine

180*60 Rubber Track,Mini Rubber Track,180X60 Rubber Tracks

NO. SIZE WEIGHT NO. SIZE WEIGHT
1 150*60 0.53 48 350*54.5 2.37
2 150*72 0.64 49 350*56 2.2
3 180*60 0.54 50 350*56R 2.75
4 180*72 0.66 51 350*75.5Y 3.74
5 180*72K 0.95 52 350*100 3.83
6 190*72 0.85 53 350*108 3.9
7 200*72 0.81 54 350*109 3.99
8 200*72K 1.08 55 370*107 4.58
9 230*48 0.91 56 400*72.5Y 3.92
10 230*48K 1.04 57 400*72.5N 3.56
11 230*72 1.07 58 400*72.5W 3.69
12 230*72K 1.5 59 400*72.5K 3.85
13 230*96 1.78 60 400*72.5R 4.19
14 230*101 1.99 61 400*75.5Y 4.11
15 250*47 1.1 62 400*72.5KW 3.92
16 250*48.5Y 1.17 63 400*74 3.5
17 250*52.5N 1.16 64 400*86SB 3.9
18 250*52.5K 1.28 65 400*107 4.97
19 250*84 2 66 400*142K 8.13
20 250*72 1.39 67 400*144Y 7.12
21 250*96 2.3 68 420*100 5.02
22 250*109 2.38 69 450*71 4.33
23 260*55.5 1.49 70 450*73.5 4.71
24 260*96 2.54 71 450*76 5.56
25 260*109 2.67 72 450*81W 5.36
26 280*72 1.6 73 450*81N 5.08
27 280*90 1.35 74 450*81.5 5.42
28 280*106 3.18 75 450*83.5K 5.42
29 300*52.5N 1.6 76 450*83.5Y 5.85
30 300*52.5W 1.67 77 450*84 4.61
31 300*52.5K 1.8 78 450*86 4.67
32 300*53 1.85 79 450*86SB 4.37
33 300*55 2.14 80 450*86MS 4.35
34 300*55.5Y 1.79 81 450*100 5.53
35 300*71 3.33 82 450*163 10.82
36 300*109W 3.82 83 485*92 8
37 300*109N 3.2 84 500*71 5.69
38 300*109K 3.8 85 500*90 5.63
39 320*54 1.7 86 500*92W 8.47
40 320*84 3.13 87 500*100 6.3
41 320*86 3.3 88 550*110 8.05
42 320*86SB 3.28 89 600*100 8.3
43 320*86MS 3 90 600*150 13.05
44 320*90 3.15 91 700*100 12.3
45 320*100 3.12 92 750*150 23.15
46 320*106 3.45 93 800*150 24.3
47 350*52.5 1.95 94


2.FEATURES:

(1). Less round damage

Rubber tracks cause less damage to roads than steel tracks, and less rutting of soft ground than either steel tracks of wheel products.

(2). Low noise

A benefit to equipment operating in congested areas, rubber track products less noise than steel tracks.

(3). High speed

 Rubber track permit machines to travel at a higher speed than steel tracks.

(4). Less vibration

 Rubber tracks insulate machine and operator from vibration, extending the machine's lifetime and lowering operate fatigue.

(5). Low ground pressure

The ground pressure of rubber tracks equipped machinery can be fairly low, about 0.14-2.30 kg/ cmm , a major reason for its use on the wet and soft terrain .

(6). Superior traction

The added traction of rubber, track vehicles permits them to pull twice the load of wheel vehicles of the sane weight.


3.ATTENTION:

1- Check the tension after the track belt installed, it will be failure if too tight or loose. Generally, the sag distance of the center roller is 10 to 15cm to belt when lift the machine.

2- Avoid quickly starting or turning the machine on the scraggly ground.

3- Keep the rubber away from oil and grease, wipe off immediately while it is oil stained.

4- To avoid collision between the rubber track and other components of the machine, especially its inner edge.

5- Don't using badly worn driving wheel, because it may damage the iron teeth of the rubber track.

6- If the machine is unused for a long time, the rubber track should be removed and cleaned, and kept well indoors to avoid sunlight and wetness.

7- Due to the track belt was made by rubber, the perfect working tempature is between -25 to 55 degree. However, it can meet the needs out of the range if made by special rubber and material.



Product Tags: Rubber Crawler , Rubber Trac , Excavator Parts
