Downdraft Paint Booth for Sale

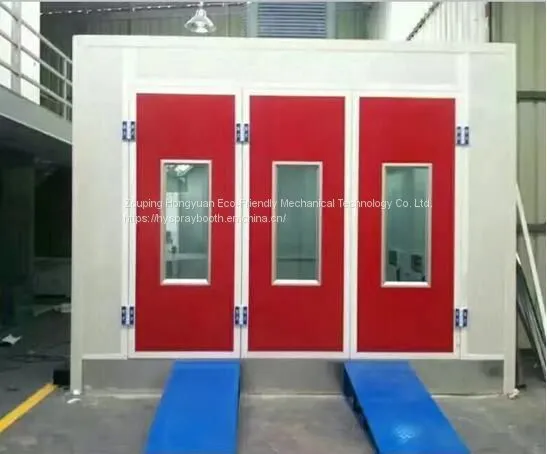

Downdraft Paint Booth for Sale photo-1
US$ 5000 - 5000000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Hongyuan
Place of Origin:
China
Model Number:
HY-CB75C
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
15 days
Brand Name Hongyuan
Place of Origin China
Model Number HY-CB75C
Certification CE
Voltage 380V/3ph,220V/1ph@50Hz
Power 17.5kW
No Load Speed 0.3m/s
Disc Dia. N/A
Internal Size 6900*3900*2700mm
External Size 7000*5250*3400mm

detailed specification of the Downdraft Paint Booth HY-CB75C, Downdraft Paint Booth price, Downdraft Paint Booth prices, Downdraft Paint Booth cost, Downdraft Paint Booth design, Downdraft Paint Booth plan, Downdraft Paint Booth plans, Downdraft Paint Booth equipment, Downdraft Paint Booth blueprints,

Model

HY-CB75C

Inside Size

6900(L)*3900(W)*2700(H)mm

Outside Size

7000(L)*5400(W)*3400(H)mm

Wall Panel

double skinned with insulation(EPS or Glass-wool), tongue and groove interlock construction, thickness: 50mm.

Doors

3-fold main doors, 3000(W) *2600(H) mm. One personnel door, 800(W)*2000(H)mm

Basement&floor

Raised metal-base (300mm high) with complete grating floor

Intake

Two sets of double-intake centrifugal fans, capacity: 20000cbm, motor: 4kw*2, belt drive

E*tract

One set of double-intake centrifugal fan, capacity: 25000cbm, motor: 7.5kw, belt drive

By-pass

Pneumatic damper from spraying to baking cycle

Heating System

Stainless heat converter, 60-80degree working temperature. Italy Riello one-stage oil burner.(gas burner optional)

Heating System

Stainless heat converter, 60-80degree working temperature. Italy Riello one-stage oil burner.(gas burner optional)

Filter System

4 sorts of filters: Prefilter, ceiling filter, floor paint-stop filter, extract paint-stop filter

Lighting

Upper inclined lights, 8 units, 4*36W each

Control System

bake temperature settings, bake timer, over temperature alarm, indicator lights, emergency stop

Remarks

Type 1: 300mm high raised metal-base with full 2pcs ramps outside. (Standard)
Type 2: 300mm high raised metal-base, base-down installation, no ramps needed.

Note: Any size! Any Structure! All possible!

Our major products as below:
1. Spray booth
1.1 car spray booth
1.2 bus spray booth
1.3 truck spray booth
1.4 large spray booth for industrial goods
1.5 Furniture spray booth
2. Electrostatic powder coating spray equipment
2.1 Powder coating spray gun/machine
2.2 Powder coating spray booth
2.3 Powder coating curing oven
2.4 Manual design powder coating plant
2.5 Manual powder coating spray line
2.6 Semi-automatic powder coating spray line
2.7 Fully-automatic powder coating spray line
3. Some other custom-made equipment


Related products: car paint spray booth, furniture paint spray booth, bus spray paint booth, truck paint spray booth, water curtain paint spray booth, dry filter paint spray booth

Product Tags: Downdraft Paint Booth for sale , Downdraft Paint Booth cost , Downdraft Paint Booth design
