Warehouse Pallet Racking
Industrial Storage Racking System
Warehouse Racking

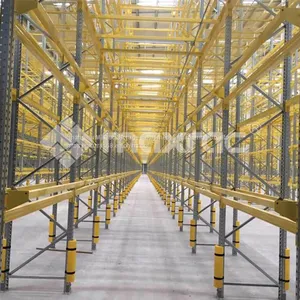

Ezlock pallet racking (50mm pitch) is the most popular selective pallet racking in the markets of Europe.It’s a typical metal storage rack made up of a range of frames and beams to store your palletized goods. It offers greater flexibility in the adjustment of beam levels with using 4 or 5hooks beam connector. 50 pitch pallet rack system also could for use in areas where a seismic activity or other severe conditions are likely.
Our all Ezlock products are designed in accordance to the latest FEM standards.
Advantages: ..
Pre-Galvanised and hot dip galvanised upright & Frame bracing are available.
Follow seismic specifications in order for racks to withstand earthquakes
Beam height can be adjusted freely per 50mm according to the storage needs
Superior range of load-bearing capacity, 4 hookers, and 5 hookers are available
Specification:
Upright | 80x70, 90x70, 105x70,120x85mm |
Hole Pitch | 50 mm |
Box Beam size | 80x50, 90x50, 100x50, 110x50, 120x50,130x50,140x50,160x50 |
Upright Thickness | 1.8/2.0/2.5/2.75/3.0 mm |
Beam Thickness | 1.5/1.8/2.0 mm |
Frame Height | Up to 12000mm |
Beam Length | Up to 6000mm |
Capacity per layer | 500-4000KG |
FAQ:
Please inform us of the following information for quick pallet racking solution:
Drawing(if available)
Size of your warehouse
Size of racking(H*W*L)
Levels of the racking
Loading capacity of each level
(RA) Color
