Crude palm oil production process ( /product/palm_oil_press_machine/palm_oil_production_process_373.html) machinery is an important equipment to get crude palm oil. There are mainly six steps of Crude palm oil production process : raw material reception, sterilization, threshing, digesting & pressing, oil clarification and kernel recovery. The Crude palm oil production process machinery has the advantage of energy-saving and low cost.
Production capacity of Crude palm oil production process ( /product/palm_oil_press_machine/palm_oil_production_process_373.html) machinery :
1. 1-2-3-5TPH small palm oil production machine
2. 15-30-45-60-80-120TPH palm oil production machine (/)

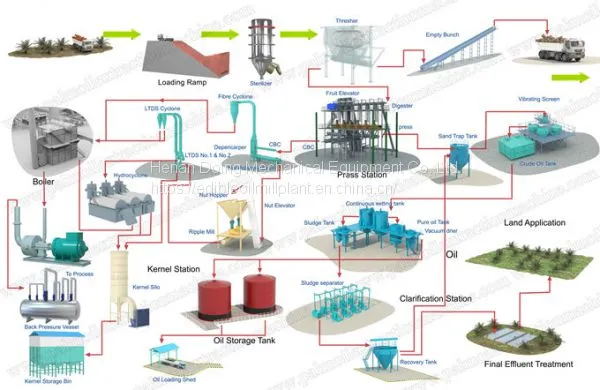

Main process of crude palm oil production process machinery:
1.Raw materials reception: the first step of the palm oil production line is collecting the ripe fresh cluster and convey by trucks, then pour the fluster into the discharge door after weighed .Open the gate of the discharge door, then the palm fruits will fall into the fruit basket car or conveyor.

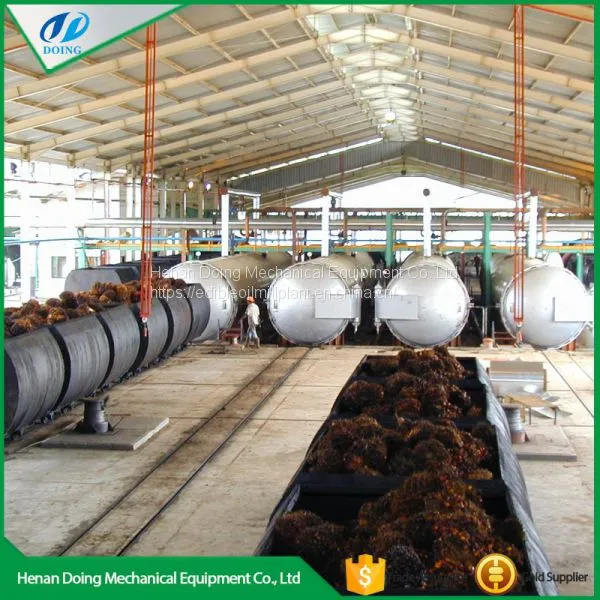

2.Sterilizing: fresh palm fruit bunch are airtight sterilized in sterilizer of palm oil production line, injecting direct steam to heat 60mins. The purpose is to prevent enzymes broken down, avoiding FFA content in oil further increase.

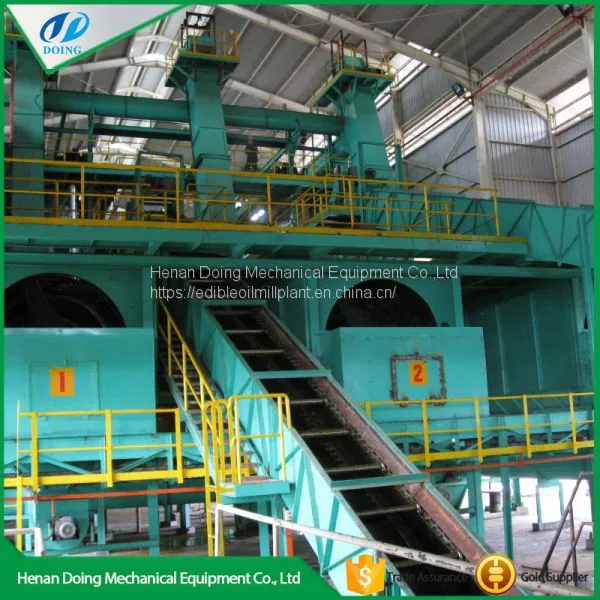

3.Threshing:the purpose of threshing is to separate the palm fruit from the FFB. The drum type thresher of palm oil production line is the usual machine to separate the fruit.
4.Digesting&pressing:the purpose of digester is to separate the pulp and nut and crush the palm pulp. Then it is sent to continuous screw palm oil press machine. After pressing of palm oil production line, oil palm fruit is divided into two parts: the mixture of oil, water and solid impurities, and the press cake (fiber and nut).
5.Crude oil clarification: crude oil first diluted with water washing, through settlement and filtration, the fiber material removed from the oil, and then carry out continuous settlement, the whole divided into two parts: oil and sediment. Oil by centrifugal separation and through vacuum drying pumped into the storage tank for storing; oil sediment by filtration and dirt oil separation.
6.Kernel recovery: by corrugated crusher of palm oil production line, kernel was released. The broken mixture enters into broken mixture separation system. After separation, shell is sent to the warehouse for temporary storage. Dried kernel is sent to kernel storage warehouse for storing.
We will choose the palm oil production process machinery according to the different requirements of different customers. Both technical and economic effects are taken into account while plan the palm oil mill plant (/product/palm_oil_press_machine/palm_oil_mill_process_85.html), so that to build the best palm oil production process machinery , Henan Doing Company is your best choice. After processed through the palm oil mill process, the crude palm oil can be sold or deeply processed.
