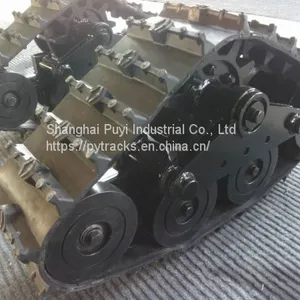

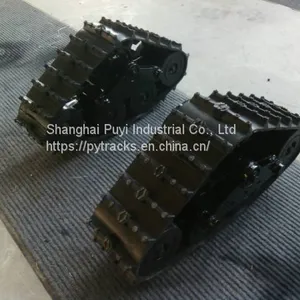

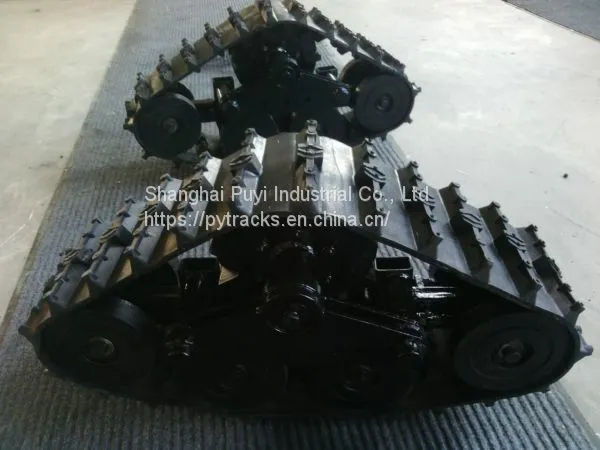

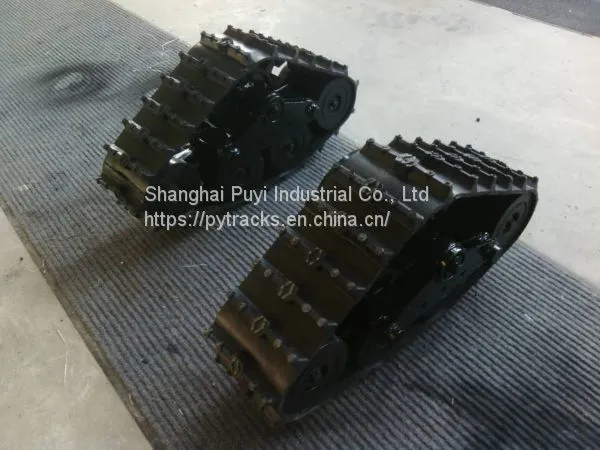

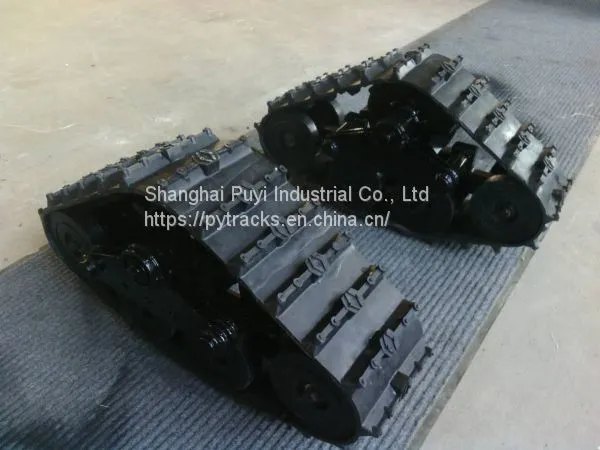

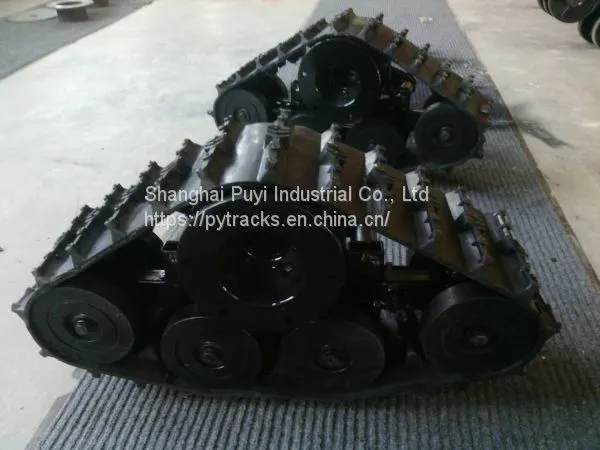

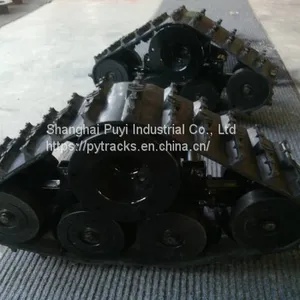

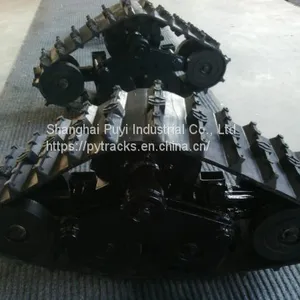

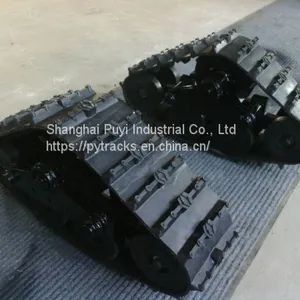

Help CenterSmall Rubber Track System Py-180 for Agricultural Machine/ Wheelchairs
Related Products
-
Rubber Track System HK-255 for BMW Mini /NimUS$ 3780 - 3840MOQ: 2 Sets -
Construction Machinery Parts Rubber Tracks B350*55k*88US$ 425 - 425MOQ: 2 Sets
-
Robot Rubber Track 100*20*76 With 250mm Diameter SprocketsUS$ 105 - 105MOQ: 2 Sets
-
Rubber Track Lp-250 for Undercarriage Parts/ Robot/ System PartsUS$ 178 - 192MOQ: 2 Sets
-
Snowmobile Rubber Track, Snow Blower Rubber Track, Snowcat Rubber Track 255*73*35US$ 188 - 188MOQ: 2 Sets
Product Information:
PY-180
Specifications
1. Light mechanical weight
2. Small shaking
3. Low noise
4. Large traction
5. Little grounding pressure.
SUV rubber track system Specifications:
Continuous rubber track
Conventional type or interchangeable type rubber track
Warranty: Guarantee one year under normal use
Rubber track system
1. It's easy to install.
2. It's suitable for a variety of harsh envinronment

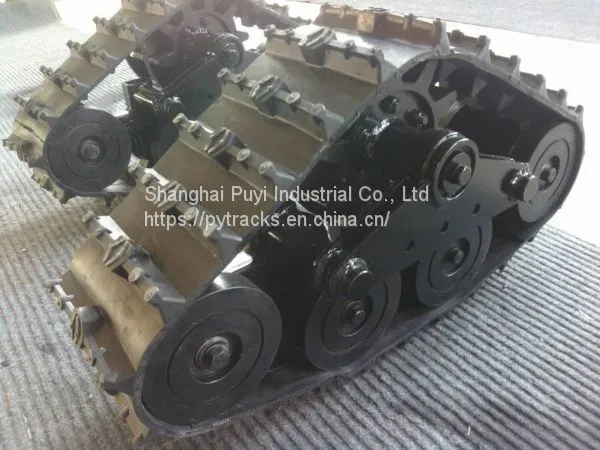

Parts of the rubber track system:
The rubber track system is mainly composed of the rubber track, triangular frame, driving wheels,
Supporting wheels, guide pulley as well as connecting plated device...
It's an integrated mechanical assembly which can make your car run well at all terrain whatever is
Snow, mud, sand, loose surface, even hill terrain...
We can also design the mounting hole according to your wheel bolt pattern so that you can
Install it on your car directly without using complicated tools...
Installation :
Parameters:
| Model: | PY-180 | Length: | 710mm | |
| Packing: | Simple carton box/Iron Frame | Width: | 180mm | |
| Height: | 480mm | |||
| Net Weight: | 31.05KG | |||
| Ground contact length: | 410mm | Loading bearing: | 200--300Kg | |
| Sprocket Center Distance to the Ground: | 360mm | |||
| Applicable Type of Vehicles: | SUV etc. | |||
| Model: | PY-180A | Length: | 785mm | |
| Packing: |
Simple carton box/Iron Frame |
Width: | 180mm | |
| Height: | 430mm | |||
| Ground contact length: | 350mm | Net Weight: | 28.7KG | |
| Loading bearing | 200--300kG | |||
| Sprocket Center Distance to the Ground: | 300mm | |||
| Applicable Types of Vehicles: | SUV etc. | |||
| Model: | PY-180C | Length: | 785mm | |
| Packing: | Simple carton box/Iron Frame | Width: | 180mm | |
| Height: | 4000mm | |||
| Net Weight: | 24.6KG | |||
| Ground contact length: | 300mm | Loading bearing: | 200-300kG | |
| Sprocket Center Distance to the Ground: | 270mm | |||
| Applicable Type of Vehicles: | small vehicles | |||
