Automatic Blue Bubble Packing&labeling Machine

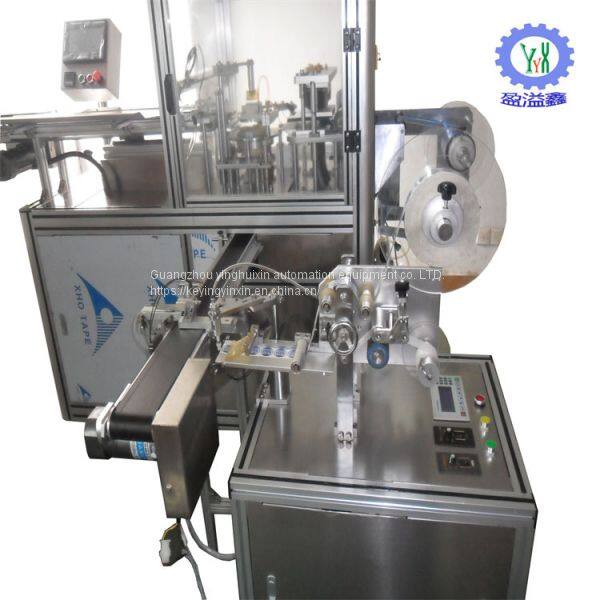

        YN-780 Automatic blue bubble                           packing&labeling machine

Feactures：

1. This machine using CAM driving design, operate stable and compact, the packaging effect is good, fast packaging, packaging speed is 60-70 per minute.

2. PLC with touch screen man-machine interface, intelligent control, convenient parameter setting.
3. Breakdown self check function, fault shows at a glance.
4. Mould replacement is convenient, simple and easy to debug.
5. transmission system is concise, more reliable, more convenient maintenance.
6. All control by the software implementation, convenient function adjustment and technology upgrade, never backward.

Application：

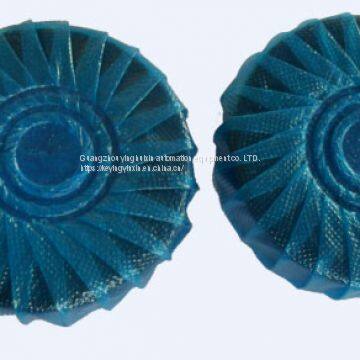

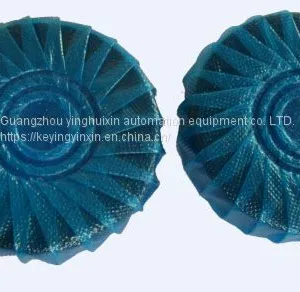

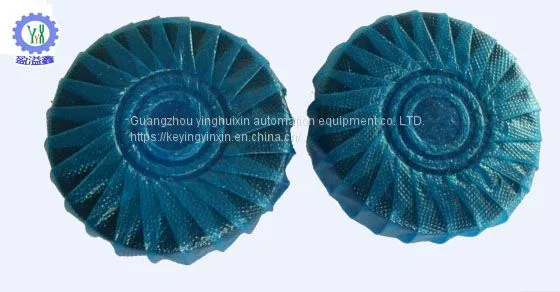

This machine YN—760 is specially designed for round shape packing for hotel soap and toilet bowl cleaner,Packing weight from 30-80g.And packing diameter from 35-65mm. The packing film width is from 80-150mm. Each size one mould. It is easy to change. The machine can be connected with production line. only need one person to feed and finish the packing if it dose not connect to the production line.

Technical parameter:

Working Speed:60～70pcs/min

Products Size:Diameter:35～65mm  High:15～30mm

Packing Film Size:Packing paper width:80~150mm

Label Size:Diameter:20~40mm

Air Pressure:0.5～0.6Mpa

Power:2.2Kw

Power Supply:AC220V 50/60Hz

Machine Weight:700Kg

Machine Size:2200*1000*1600mm
