Description turbine liquid oil flow meter
Turbine flowmeter with high precision, repeatability, no zero drift, high range than the advantages. Turbine meters feature high-quality bearings and specially designed deflectors, which greatly reduce wear and tear, are insensitive to spikes, and provide robust measurements even under harsh conditions. Turbine flowmeter output signal pulse, easy to digitize. Turbine flowmeter pressure loss, leaves can be anti-corrosion, can measure viscous and corrosive media.

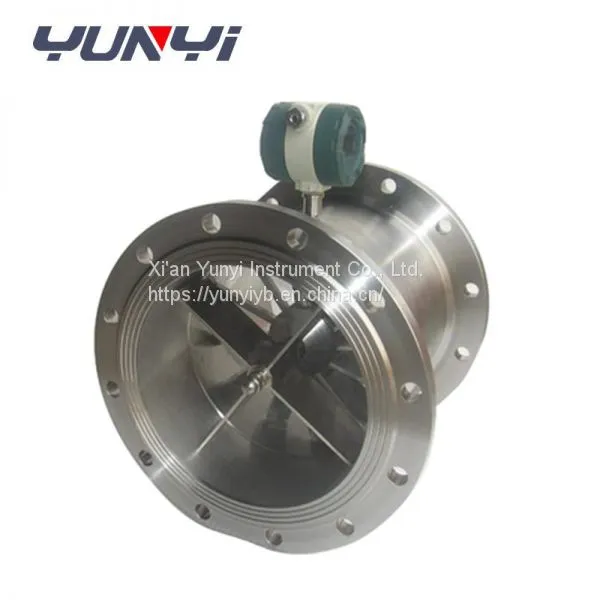

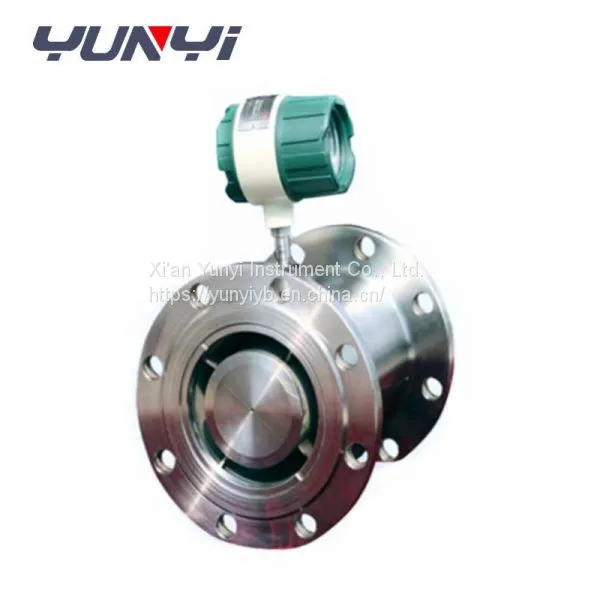

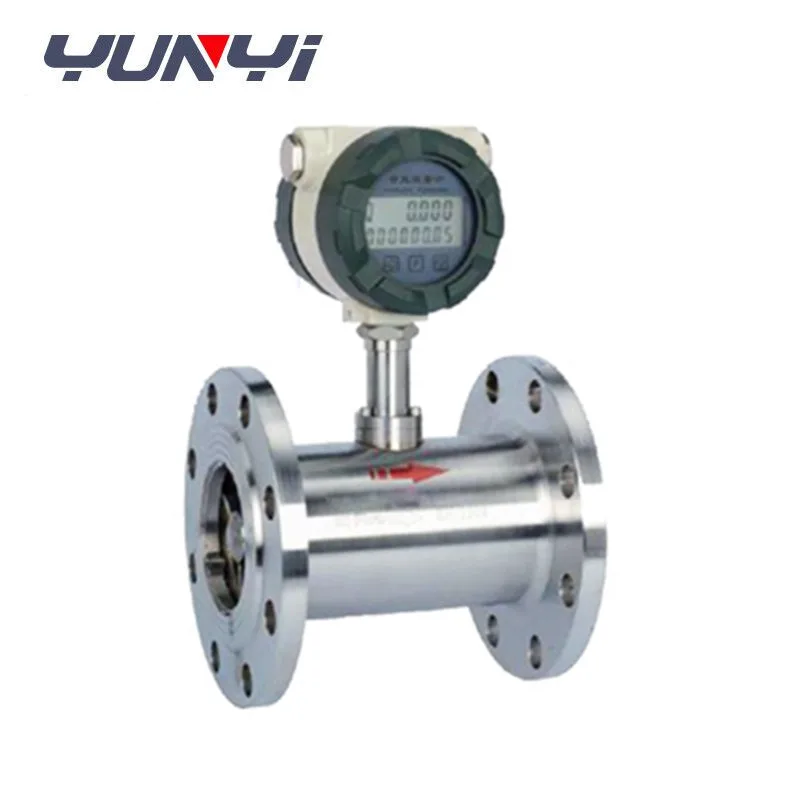

Detailed Images turbine liquid oil flow meter
Specification turbine liquid oil flow meter
Pipeline: DN4 ~ DN200
Plug-in: DN100 ~ DN2000
Accuracy class: Pipe type: ± 0.5, ± 1.0 ; level Plug-in: ± 1.5, ± 2.5 level , High-precision up to 0.2
Ambient temperature: -20 ℃ ~ 50 ℃
Medium temperature: Measuring liquid: -20 ℃ ~ 120 ℃
Measuring gas: -20 ℃ ~ 80 ℃
Atmospheric pressure: 86KPa ~ 106KPa
Nominal pressure: 1.6 Mpa, 2.5Mpa, 6.4Mpa, 25Mpa
Explosion-proof grade: ExdIIBT4
Connection: screw connection, flange mounting, flange connection, plug-in and so on
Straight pipe requirements: gas: the upstream straight pipe should be ≥ 10DN, downstream straight pipe should be ≥ 5DN
Liquid: straight pipe upstream should be ≥ 20DN, downstream straight pipe should be ≥ 5DN
Plug-in: the upstream straight pipe should be ≥ 20DS, the downstream straight pipe should be ≥ 7DS (DS is the measured diameter of the pipe)
Display: (1) Remote display: pulse output, current output (with display instrument)
(2) Live display: 8 LCD shows the cumulative flow, unit (m3)
4 LCD display instantaneous flow, unit (m3 / h), battery power, frequency, flow rate
(3) temperature and pressure compensation type:
A, shows the standard instantaneous flow and standard cumulative flow
B, shows the current pressure, temperature, battery voltage
Output function:
(1) pulse output, p-p value determined by the power supply
(2) 4 ~ 20mA two-wire current output
(3) Unit volume pulse output and sensor original pulse output
(4) with RS485 communication interface
Power supply:
(1) DC5 ~ 24V
(2) Standard 3V lithium battery installed in the instrument can be used continuously for more than eight years
(3) Temperature and pressure compensation 3V lithium battery installed in the instrument can be used continuously for more than four years
Transmission distance: sensor to display distance up to 500m
Features turbine liquid oil flow meter
1. Measurement accuracy: 0.2 and 0.5 level;
2. The organization is simple, solid, reliable operation;
3. Particularly suitable for measuring medium with higher viscosity, but also insensitive to the change of viscosity of the measured liquid;
4.Easy to install Flowmeter before and after the need for straight pipe, even if the flow meter near the valve, elbow, shrink tube, expansion tube nor
5. High-precision, in all flow meters, the most accurate flow meter;
6.Good repeatability
7.No zero drift, anti-interference ability;
Applications turbine liquid oil flow meter
Turbine meters are widely used in the following measuring objects: Petroleum, Organic Liquids, Inorganic Liquids, Liquefied Gases, Natural Gas, and Cryogenic Fluids In Europe and the United States, turbine flowmeters are second only to orifice flowmeters in terms of usage Instrumentation, only the Netherlands in the natural gas pipeline on the use of more than 2,600 various sizes, the pressure from 0.8 ~ 6.5MPa gas turbine flow meter, they have become excellent natural gas meters
Selection Guide turbine liquid oil flow meter
Turbine flowmeter category
(1) plug-in turbine flow meter
(2) gas turbine flow meter
(3) Intelligent turbine flow meter
(4) liquid turbine flowmete
(5) clamp-type liquid turbine flow meter
(6) anti-corrosion turbine flowmeter
(7) high-pressure turbine flowmeter
Company Information turbine liquid oil flow meter
