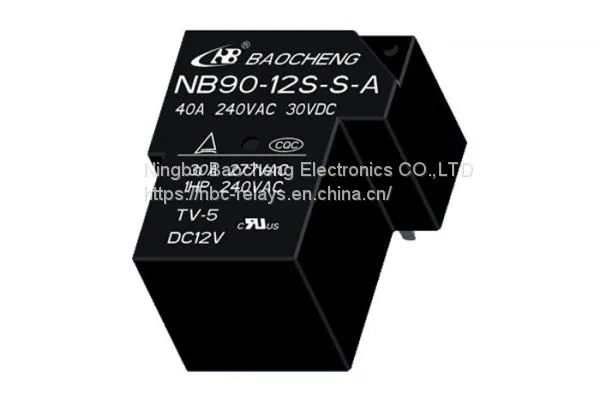

RELAY TYPE: NB90 Relay
Baocheng export excellent power relay, telecom relays and automotive relays.
· 40A switching capability
· Compact structure
· Dielectric strength between coil and contact 2.5KV,
max.4KV
· NO,NC,NO&NC contact form available
· Option for sealed and open type
· UL insulation grade：Class F
· Environmental friendly product
· Outline dimension: 32 x 27.2 x 20mm
Baocheng hot selling power relays, telecom relays, automotive relays and latching relays.
Contact Ratings | |
Contact Form: |
1A, 1B, 1C |
Contact Material: |
AgCdO, AgSnO2 |
Contact Load Capacity: |
1A:40A/240VAC,30VDC |
1B:40A/240VAC,30VDC | |
1C:40A/240VAC,30VDC | |
Max. Switching Current: |
40A |
Max. Switching Power: |
9600VA/1200W |
Mechanical Endurance: |
1*107OPS |
Electrical Endurance: |
1*105OPS |
Technical Ratings | |
Insulation Resistance: |
1000MΩ |
Dielectric Strength(Between coil&contact): |
2500VAC |
Operate Time (Max.): |
15ms |
Release Time (Max.): |
10ms |
Ambient Temperature: |
-40℃ ~ 85℃/105℃ |
Terminal Type: |
THT |
Coil Ratings | |
Nominal Voltage |
(5-110)VDC |
Nominal Coil Power |
0.9W |
