FIVE-AXIS CNC MILLING MACHINE FOR TIRE MOLD IN CHINA

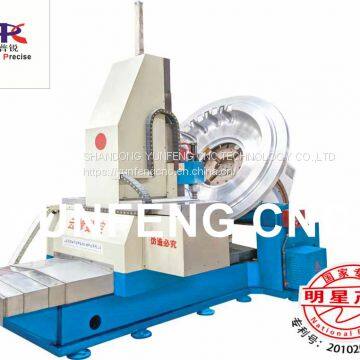

YFX-2500 Five-Axis CNC Milling Machine is one of the professional tire mold processing machines researched and developed by our company. The main mechanism has been granted a national patent. The machine is provided with four servo axes (three linear axes and one revolving axis ) and one axis for working disc turning ,which could realize. all-dimensional fine processing of tire mold pattern. And, generally there is no need for further EDM processing which reduces the costs significantly and improves production efficiency .It is definitely the first choice for tire mold manufacturers.
Model |
YFX-2500F |
|
X-axis stroke |
600mm |
The stroke is subject to change as per customer requirements |
Y- axis stroke |
1200mm |
|
Z- axis stroke |
850mm |
|
A- axis |
0~360° |
|
Spindle speed |
BT40 50-8,000 revolutions/min |
|
Spindle power |
7.5KW |
|
Chuck diameter |
1,250mm(steel chuck) |
|
Machining diameter |
500-2500 mm when working disc is 25°to 30° |
|
Max. Loading weight |
4000kg |
|
Weight of the machine |
12000kg |
|
Boundary dimension of the machine |
4200*2300*2700 mm |
|
Turning scope of working disc |
0~90° |
|
Max. machining speed |
6000mm/min |
|
Fast feeding speed |
10000mm/min |
|
