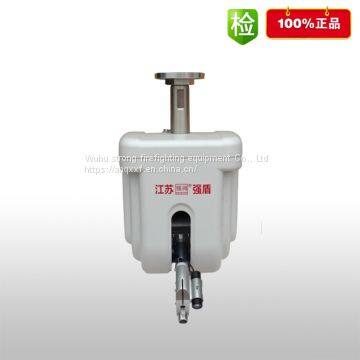

Firewater Gun Manufacturer

The automatic tracking and positioning jet extinguishing device (jet type) combines the infrared sensing technology, signal processing technology, communication control technology, computer technology and mechanical transmission technology together, and can automatically monitor the fire in the range of protection all weather. Once a fire occurs, the fire extinguishing device starts immediately, and the fire source is scanned horizontally and vertically. After determining the two directions of the fire source, the central controller sends out instructions and sends out the fire alarm signal. At the same time, the pump is started and the valve is opened. The fire extinguisher is directed to fire the fire source, and the fire source is extinguished. After the fire source is extinguished, the central center is extinguished. The controller then sends out instructions to stop shooting water. If there is a new source of fire, the fire extinguishing device will repeat the above process and return to the monitoring state after all the fire sources are extinguished. The automatic tracking and positioning jet fire extinguishing device (spray type) has the form of cylindrical water injection, which has wide range, wide protection range and strong ability to extinguish fire.

Performance characteristics: dual band infrared and ultraviolet composite detection technology is used to detect fire with high accuracy, wide range and no blind spot.

The location of fire source can be fixed, located and sprinkled to extinguish fire.

The water direction of the nozzle of the fire extinguishing device can be manually controlled by the 485 bus.

The remote control system is controlled by the bus image transmission technology and the color image signal.

By using the principle of laser irradiation, it is possible to detect the accuracy of the water in the fire extinguishing device without shooting water.

Three kinds of manual, automatic and remote manual control methods that satisfy the national standard.

Bus system communication, less consumables, convenient construction, simple and convenient maintenance.

The two homing, no need to reset, greatly reduces the fire extinguishing time.

It can receive the linkage signal of any automatic fire alarm system of any manufacturer.

Light weight, compact shape, generous and beautiful.

Comply with national standard GB25204-2010 "automatic tracking positioning jet fire extinguishing system" requirements;
