Angular Contact Ball Bearing 5209 Bearing NSK Bearing With Long Life and Low Price
US$ 1 - 11
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
nsk
Place of Origin:
Japan
Model Number:
5209
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenyang
Delivery Detail:
2 days
Related Products
-
NSK Japan Brand 6324 Deep Groove Ball BearingUS$ 1 - 11MOQ: 1 Piece -
Japan NSK NTN ASAHI Heavy-duty Square Housing Pillow Block Bearing UCF 202 UCF202 Size 158630.9mmUS$ 1 - 11MOQ: 1 Piece
-
Dep NSK LMK12UU Flange Bushing Linear Bearing CNC Part 122130mmUS$ 1 - 11MOQ: 1 Piece
-
NSK Cylindrical Roller Bearings NJ205 Eccentric Bearing Rn205 Size 255215mmUS$ 1 - 111MOQ: 1 Piece
-
100% Original Japan NSK 22222 Spherical Roller Bearing With High QualityUS$ 1 - 111MOQ: 1 Piece
Brand Name
nsk
Place of Origin
Japan
Model Number
5209
Number of Row
Single Row
Seals Type
zz
Precision Rating
p4
Outside Diameter
1, 11
Bore Size
1, 11
Bearing dimensions and specification in NSK catalogue:
d - 45 mm
D - 85 mm
B - 30.2 mm
C - 30.2 mm
a - 42.2 mm
r min. - 1.1 mm
da min. - 52 mm
da max - 55.3 mm
Da max. - 78 mm
ra max. - 1 mm
Weight - 0.620 Kg
Basic dynamic load rating (C) - 41.7 kN
Basic static load rating (C0) - 33.9 kN
(Grease) Lubrication Speed - 4600 r/min

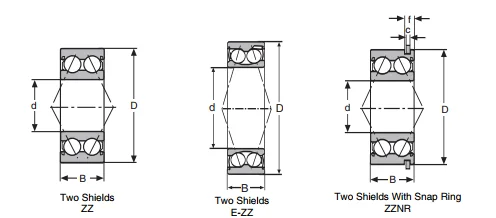

Detailed pictures of Double Angular Contact Ball Bearing 5209ZZ:
| Bearing No. | Boundary Dimensions(mm) | Basic Load Ratings(N) | Limiting Speeds(RPM) | Mass(kg) | |||||
| d | D | B | r min | Cr | C0r | Grease | Oil | approx | |
| 5200 | 10 | 30 | 14.3 | 0.6 | 7 150 | 3 900 | 17 000 | 22 000 | 0.05 |
| 5201 | 12 | 32 | 15.9 | 0.6 | 10 500 | 5 800 | 15 000 | 20 000 | 0.06 |
| 5202 | 15 | 35 | 15.9 | 0.6 | 11 700 | 7 050 | 13 000 | 17 000 | 0.07 |
| 5302 | 42 | 19 | 1 | 17 600 | 10 200 | 11 000 | 15 000 | 0.11 | |
| 5203 | 17 | 40 | 17.5 | 0.6 | 14 600 | 9 050 | 11 000 | 15 000 | 0.09 |
| 5303 | 47 | 22.2 | 1 | 21 000 | 12 600 | 10 000 | 13 000 | 0.14 | |
| 5204 | 20 | 47 | 20.6 | 1 | 19 600 | 12 400 | 10 000 | 13 000 | 0.12 |
| 5304 | 52 | 22.2 | 1.1 | 24 600 | 15 000 | 9 000 | 12 000 | 0.23 | |
| 5205 | 25 | 52 | 20.6 | 1 | 21 300 | 14 700 | 8 500 | 11 000 | 0.19 |
| 5305 | 62 | 25.4 | 1.1 | 32 500 | 20 700 | 7 500 | 10 000 | 0.34 | |
| 5206 | 30 | 62 | 23.8 | 1 | 29 600 | 21 100 | 7 100 | 9 500 | 0.29 |
| 5306 | 72 | 30.2 | 1.1 | 40 500 | 28 100 | 6 300 | 8 500 | 0.51 | |
| 5207 | 35 | 72 | 27 | 1.1 | 39 000 | 28 700 | 6 300 | 8 000 | 0.43 |
| 5307 | 80 | 34.9 | 1.5 | 51 000 | 36 000 | 5 600 | 7 500 | 0.79 | |
| 5208 | 40 | 80 | 30.2 | 1.1 | 44 000 | 33 500 | 5 600 | 7 100 | 0.57 |
| 5308 | 90 | 36.5 | 1.5 | 56 500 | 41 000 | 5 300 | 6 700 | 1.05 | |
| 5209 | 45 | 85 | 30.2 | 1.1 | 49 500 | 38 000 | 5 000 | 6 700 | 0.62 |
| 5309 | 100 | 39.7 | 1.5 | 68 500 | 51 000 | 4 500 | 6 000 | 1.4 |
|
We can offer you best quality with competitive price .
Hope we can cooperate!
