Help CenterX-RAY INSPECTION SYSTEM 2000
Related Products

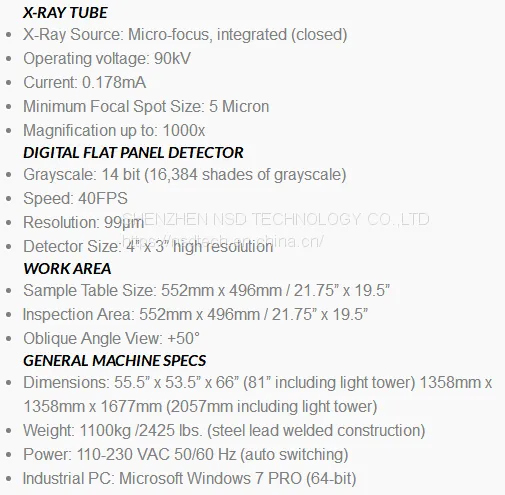

Features
Fully integrated, 90kV high power closed micro-focus x-ray tube
Spot size down to 5µ
4”x3“ high resolution CMOS digital flat panel image detector
50° detector tilt for oblique angle viewing
21.75” x 19.5” Inspection area
Color mapping camera with zoom window provides easy location and identification of faults
Z axis movement of the x-ray tube and detector
Computer controlled kV and mA settings
Computer controlled variable speed X-Y stage
Simple point and click, intuitive GUI provides access to create advanced inspection routines
All software tools standard including (but not limited to)
BGA Void detection and automatic calculations
Easy macro recording for intuitive step and repeat programming
Various measuring tools for radius, area, perimeter, etc.
Industrial PC with Windows 7 PRO, 24” LCD flat panel display
