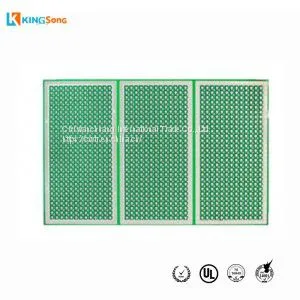

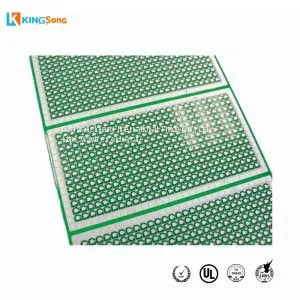

Help CenterLED White Light 3535 Alumina Material Ceramic PCB Factory
Related Products
-
Al2O3 Alumina Material Ceramic PCB Fabrication For LED White LightUS$ 9 - 99MOQ: 100 Pieces -
AIN Aluminum Nitride Material Ceramic PCB Factory Used For Microwave DeviceUS$ 9 - 99MOQ: 100 Pieces
-
LED LIGHT CONTAINER 1.0US$ 0.5 - 9999MOQ: 100 Pieces
-
RW-30KW VARIABLE PITCH WIND TURBINEUS$ 0.5 - 9999MOQ: 100 Pieces
-
Automatic Single Plane Planing MachineUS$ 0.5 - 9999MOQ: 1 Piece
Ceramic PCB Board Capabilities:
Layer：1，2
Material：96% Alumina，99% Aluminium nitride(AIN),Sapphire,High Borosilicate Glass
Material Thickness(mm)：0.38，0.5，0.635，1.0
Material Size(mm)：120*120，127*127，132*132，140*130，150*200
Min Hole：0.075mm
Min Line width/space：0.1/0.1mm
Laser Outline: line width：0.1mm，tolerance：+/-0.1mm
Surface Finish:Immersion Silver,Immersion Gold,Immersion Tin,OSP
Copper Thickness(oz):H/H 1/1 2/2 3/3 4/4 5/5 6/6 7/7 8/8 9/9 10/10
Thermal conductivity value: 20~27W/m.K for Alumina; 180W~220W/m.K for Aluminium nitride , 27~30W/m.K for Sapphire,2 ~ 5 W/m.K for High Borosilicate Glass
Do not need to change the original processing procedures
Excellent mechanical strength
With good thermal conductivity
With resistance to erosion
Good surface characteristics, excellent flatness and flatness
Good thermal shock resistance
Low curl degree
Good stability under high temperature can be processed into a variety of complex shapes
