The KPU shoes upper manufacturing process need several machines, the industrial oven, for baking the KPU raw material, the mixing machine for mixing the KPU material and color, then use the vacuum machine for drying the air outside the material , then put the mold into the production line for drying, then put the fabric in the mold, then heat press by the heating press machine, and finally finished.
Specification:
Type |
30 T |
Clamping force Ton |
30 |
Locking mold pressure |
200 |
Stroke MM |
450 |
Main cylinder diameter MM |
150 |
Horse power HP |
3.7 |
Electrical power KW |
84.7 |
Gross weight KG |
4500 KG |
Type of mold opening |
Up and down |
Working table size MM |
600*600 |
Machine size MM |
3200*1450*1900 |

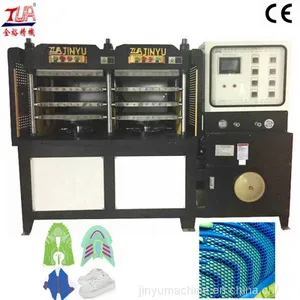

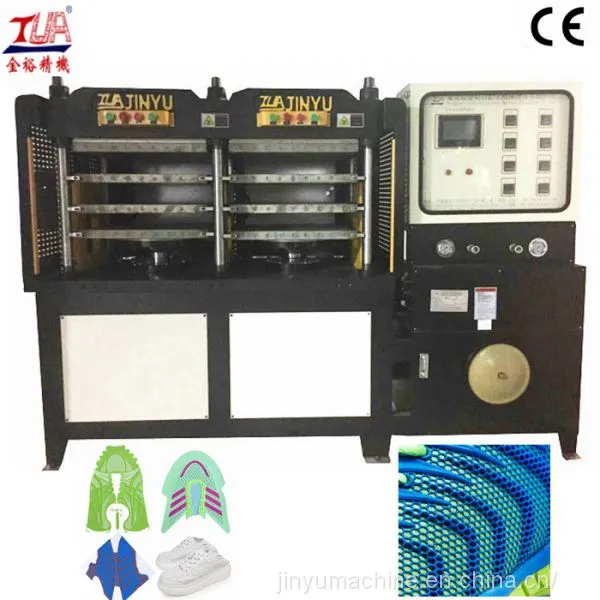

Product Picture:
Main Features:
1. Adopt the world advanced SOLIDEWORK3D software and finite element analysis of mechanical design, the optimum design is integrally molded high rigidity, precise structure, long service life.
2. Heating plate adopt deep hole processing, and after carburizing,after grinding nit-riding, using the principle of heat, get the high precision, and the optimal design with average temperature, HRC50-55 hardness, long time wear-resisting, Not easy to be out of shape and it has high plane precision.
3. Using the technology of planar pressure correction, the maximum pressure(200KG) nut leveling device,the highest plane precision can reach 0.05 MM.
4. Unique oil circuit design, the oil circuit non impact and low noise in operation, increase the effectiveness, reduce the energy consumption.

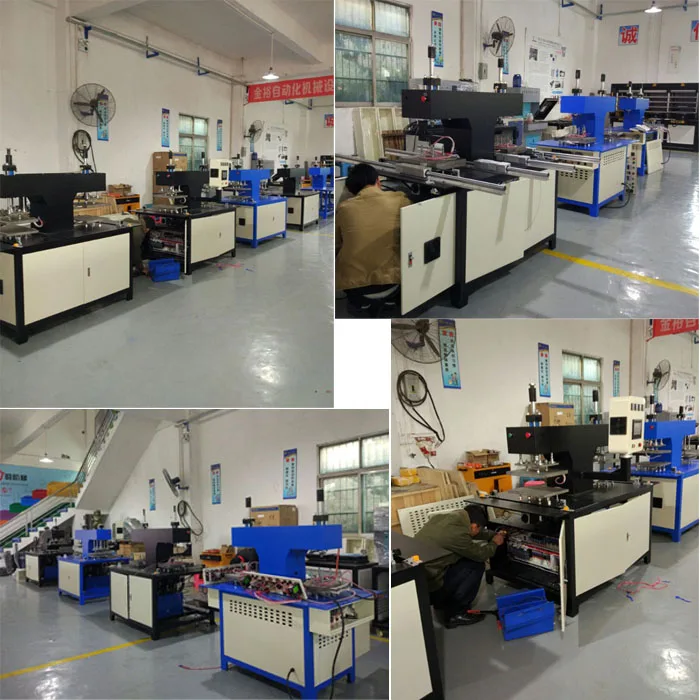

Our Factory View:
Our company has its own factory, the staff have many years of production engineering technical experience, the overall production strength, the machine quality is high.At present, our r&d department often develops new machines according to market changes. Strive for the market for customers.High production speed and guarantee.Independent research and development, multiple patents.Be flexible in order to see specific products.
Application:
This machine can make all kind of KPU shoes upper, vamp, bag cover, gloves, etc.
Package:
Seaworthy wooden case packing,To be packed by new strong wooden cases suitable for long distance ocean transportation and well protected against dampness, moisture, shock, rust and rough handling.
