63mm 1.6Mpa Crimped Ring Back Connection Stainless Steel Pressure Gauge
Pressure Gauge Details
Name: 63mm 1.6Mpa Crimped Ring Back Connection Stainless Steel Pressure Gauge
Dials Size: 2"(50mm), 2.5“(63mm), 4”(100mm) and 6“ (150mm)Case SS304
Pressure range: 0 -100Mpa,other scale units bar, psi, kg/cm2 etc.optional
Ring: Non, black steel or chrome plated
Movement: Brass,SS304 or SS316SocketBrass,SS304 or SS316
Bourdon tube :Phosphor Bronze,SS304 or SS316
Dial plate and pointer : Aluminum
Window Glass or Safety glass
Connection sizes :1/8 for 1.5" case; 1/4 for 2",2.5" case, 3/8"&1/2" for 4",6"case
Connection threads: Metric Thread, NPT, BSP (G, PF), BSPT (ZG, PT)
MountingBottom, back and panel
Accuracy: 2"(50mm), 2.5(63mm)-2.5% ,4(100mm) and 6 (150mm)-1.6%
Pressure limitation : 1:Steady: 3/4x full scale value
2: Fluctuation:2/3x full sacle value
3:Short time:full scale value

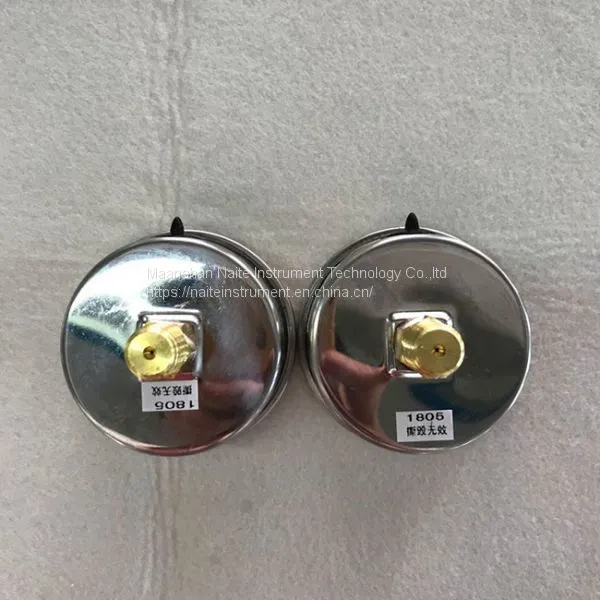

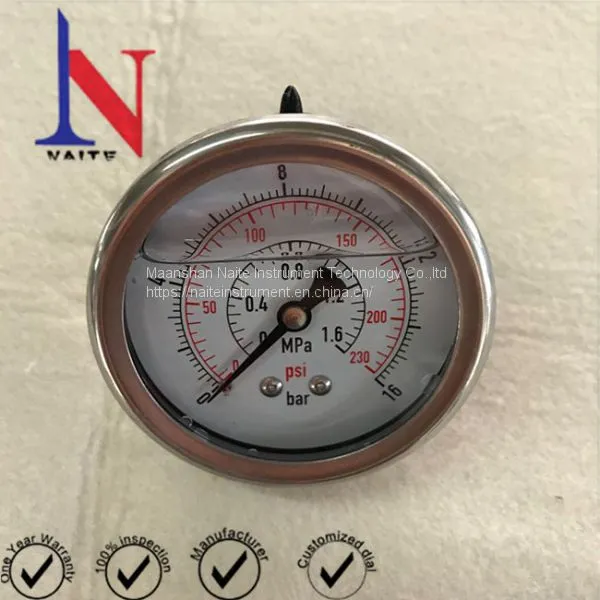

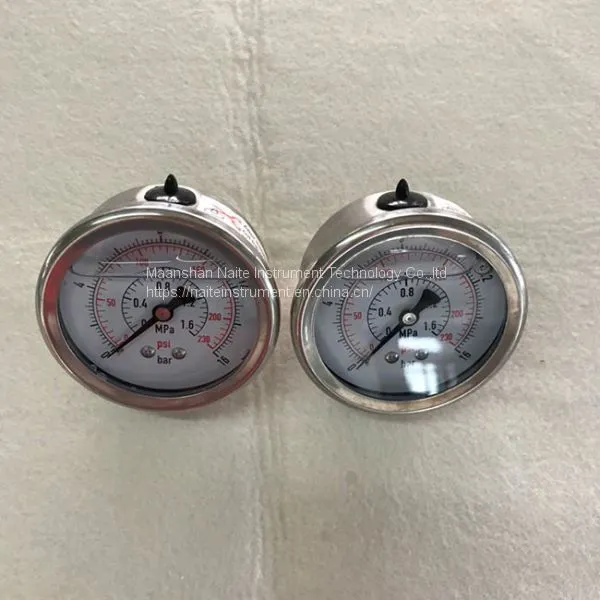

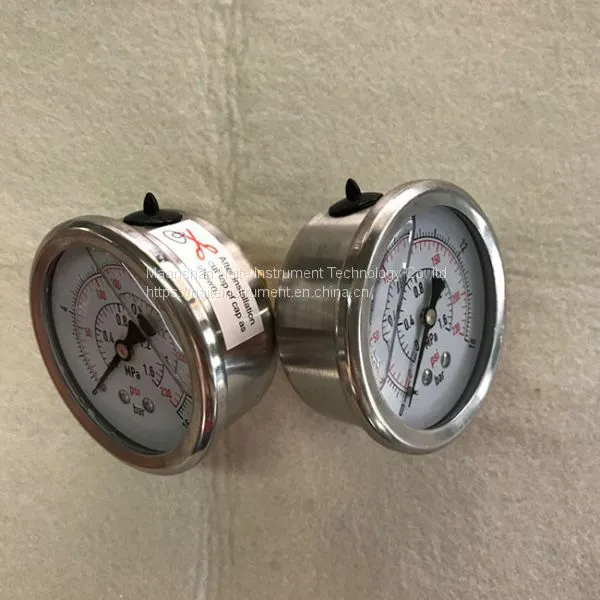

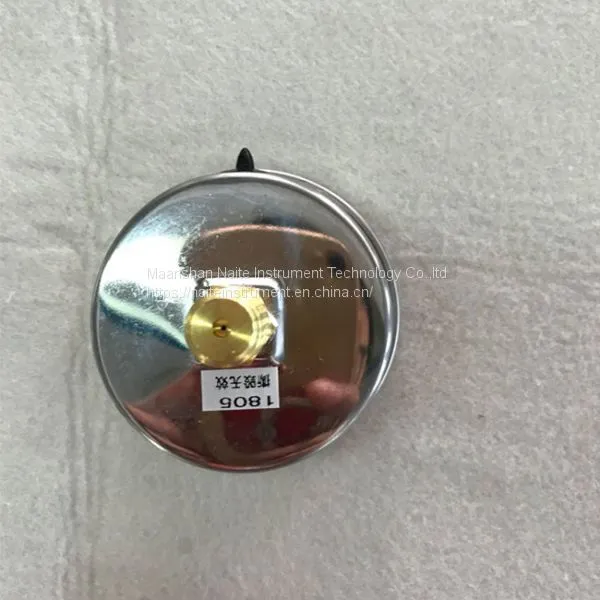

Pressure Gauge Picture
Company introduction
One of three biggest pressure gauge manufacturers in China,
established in 2000.
Specializes in manufacturing and exporting Pressure gauge,
Pressure regulator, Manometer and Pressure thermometer.
We have a strong network that allows us to design and customize
products.
We currently produce over 8 varieties, more than 100 series,
and about 1, 000 specifications of instruments for various industries
including oil exploration, chemical industry, chemical fiber industry,
iron and steel industry, metallurgical industry, power generation
plants, food industry and scientific research.
Our products are exported to East Asia such as Korea & Japan, the
European Union such as Russia, Germany & Italy,and the Middle East,
America. Southeast Asia such as Vietnam, Thailand & Indonesia.
As a well-known manufacturer in China, our factory has approved by
CCC, ISO14001, ISO9001, CE, SGS and KS certificates.
We will unswervingly make more efforts to supply competitive products
and the best services to all customers.
If you need high quality products, wecome to contact us.
Once cooperation, friends forever.
