RA11008 Thin Section Cross Roller Bearing High Accurancy Robots Bearing

RA11008 Thin Section Cross Roller Bearing High Accurancy Robots Bearing thumbnail-1
RA11008 Thin Section Cross Roller Bearing High Accurancy Robots Bearing thumbnail-2
RA11008 Thin Section Cross Roller Bearing High Accurancy Robots Bearing thumbnail-3
RA11008 Thin Section Cross Roller Bearing High Accurancy Robots Bearing photo-1
RA11008 Thin Section Cross Roller Bearing High Accurancy Robots Bearing photo-2
RA11008 Thin Section Cross Roller Bearing High Accurancy Robots Bearing photo-3
US$ 1 - 100000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
OEM
Place of Origin:
China
Model Number:
RA11008
Contact Supplier Request Quote Chat Now
Luoyang Yadian Machinery Equipment Co.,Ltd
Gold Verified Supplier
1Yr
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name OEM
Place of Origin China
Model Number RA11008
Number of Row Single Row
Precision Rating P4
Outside Diameter 100, 200
Bore Size 8, 13

Series Models

RA5008UUCCO, RA6008UUCCO, RA7008UUCCO, RA8008UUCCO ,RA9008UUCCO, RA10008UUCCO, RA11008UUCCO, RA12008UUCCO, RA13008UUCCO, RA14008UUCCO, RA15008UUCCO, RA16013UUCCO, RA17013UUCCO, RA18013UUCCO, RA19013UUCCO, RA20013UUCCO

RA series

RA5008CUUCCO, RA6008CUUCCO, RA7008CUUCCO, RA8008CUUCCO, RA9008CUUCCO, RA10008CUUCCO

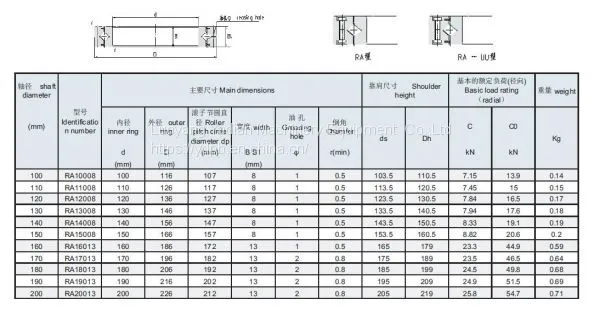

Main Parameters

shaft diameter



 Identification number Main dimensious shoulder height Basic load rating (radial) weight
Inner diameter outer diameter Roller pitch circle diameter width Greasing hole r ds Dh C Co Kg
a b
d D DP B/B1 KN KN
50 RA 5008 50 66 57 8 2 0.8 0.8 53.5 60.5 5.1 7.19 0.08
60 RA 6008 60 76 67 8 2 0.8 0.8 63.5 70.5 5.68 8.68 0.09
70 RA 7008 70 86 77 8 2 0.8 0.8 73.5 80.5 5.98 9.8 0.1
80 RA 8008 80 96 87 8 2 0.8 0.8 83.5 90.5 6.37 11.3 0.11
90 RA 9008 90 106 97 8 2 0.8 0.8 93.5 100.5 6.76 12.4 0.12
100 RA 10008 100 116 107 8 2 0.8 0.8 103.5 110.5 7.15 13.9 0.15
110 RA 11008 110 126 117 8 2 0.8 0.8 113.5 120.5 7.45 15 0.16
120 RA 12008 120 136 127 8 2 0.8 0.8 123.5 130.5 7.84 16.5 0.17
130 RA 13008 130 146 137 8 2 0.8 0.8 133.5 140.5 7.94 17.6 0.18
140 RA 14008 140 156 147 8 2 0.8 0.8 143.5 150.5 8.33 19.1 0.19
150 RA 15008 150 166 157 8 2 0.8 0.8 153.5 160.5 8.82 20.6 0.2
160 RA 16008 160 186 172 13 2.5 1.6 1.2 165 179 23.3 44.9 0.59
170 RA 17008 170 196 182 13 2.5 1.6 1.2 175 189 23.5 46.5 0.64
180 RA 18008 180 206 192 13 2.5 1.6 1.2 185 199 24.5 49.8 0.68
190 RA 19008 190 216 202 13 2.5 1.6 1.2 195 209 24.9 51.5 0.69
200 RA 20008 200 226 212 13 2.5 1.6 1.2 205 219



Product Tags: RA11008 bearing , thin section cross roller bearing , robots bearing
