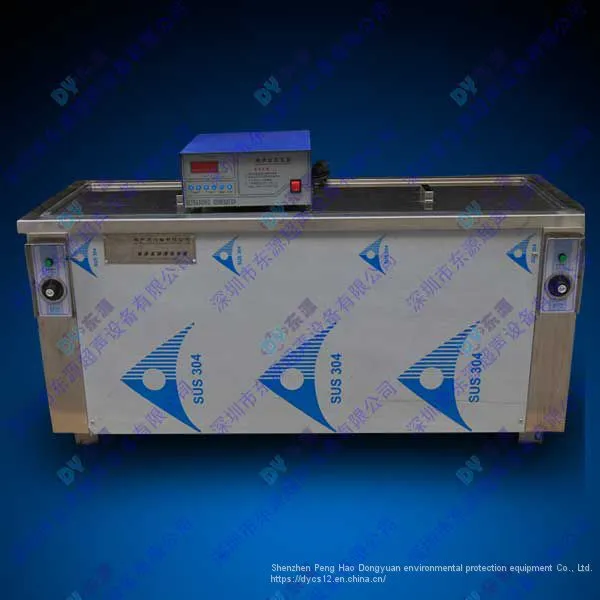

Customized two tanks 28KHz Ultrasonic cleaning machine for industrial production

Customized two tanks 28KHz Ultrasonic cleaning machine for industrial production

Customized high power ultrasonic cleaning machine for industrial
1, material:Industrial ultrasonic cleaner produced by using 304 # Stainless steel, beautiful and easy, convenient and practical. If need to use Some cleaning process acid or alkali washing, if acid-base need to use 316 # Stainless steel, high concentration of acid and alkali side need with Acid-proof alkaline can higher titanium alloy, or hartz alloy production.

2, cleaning frequency:Theconfiguration Cleaning frequency for 28 KHz default factory delivery, in accordance with the Requirements of different cleaning processes, and for the protection of product Surface such as purpose, can be customized, such as: 25 KHz, 40 KHz, 68 KHz special Frequency, etc. (cleaning frequency is lower, said the more aggressive cleaning Rough, more suited to the product surface besmirch, on the surface of the Product is not high, or after cleaning and surface treatment of artifacts, if Wash glass and ceramics with low frequency is fragile products, such as surface Side can cause damage or break the product to product surface, this kind of Situation will need to clean with high frequencies; the higher the frequency of Cleaning, said efforts to clean the softer, suitable for cleaning precision Component, glass, ceramic, solar wafers, etc).


3,Tank heating:Standard heating single tank adopt configuration cast aluminum heater, efficient, reliable and easy to Maintain, and effectively prevent the leakage of risk, DYS - 1012 heating for 3 Kw, DYS - 1018 heating heating for 3 kw, DYS - 1024 kw, DYS - 1030 heating for 4 to 5 kw, DYS - 1036 is 6 kw, DYS - 1048 heat for 6 kw; the heater power to 220 v power supply. Its special configuration can according to customer's Actual need to match.If you need to clean with flammable solvents side carefully Using heat.

4, ultrasonic generator:Generator power supply voltage are: AC 220 v, 50 Hz other International voltage need to make to order. The plug standard three pin plug with ground wire in China.

Lose power: DYS - 1012 ultrasonic power: 600 W,

DYS - 1018 ultrasonic power: 900 W,

DYS - 1024 ultrasonic power: 1200 W,

DYS - 1030 ultrasonic power: 1500 W,

DYS - 1036 ultrasonic power: 1800 W,

DYS - 1048 ultrasonic power is: 2400 W. Single tank type Ultrasonic cleaner adopts the split type structure, effective to eliminate the Various problems caused by the damp environment cleaning, ultrasonic wire is 2.5 M long, our company can be customized according to customer requirements for length, due to the ultrasonic generator output for belt frequency pulse Current, so ultrasonic cleaning machine wire length can't more than 15 M, Beyond the length of the cleaning efficiency will be discounted. If more than 15 m can use my company with the function of remote control of ultrasonic Generator.


5, tank heating Temperature control:Standard configuration for mechanical knobs, simple operation, the temperature control range is: 30 ~ 110, if need higher cleaning Temperature can produce according to customer's request and can be used type of Temperature control system of digital display and remote control. In order to Facilitate the operator is used, ultrasonic cleaning machine temperature Control knob is located in the right of the front machine.

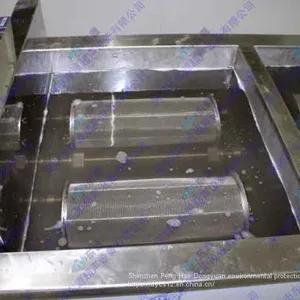

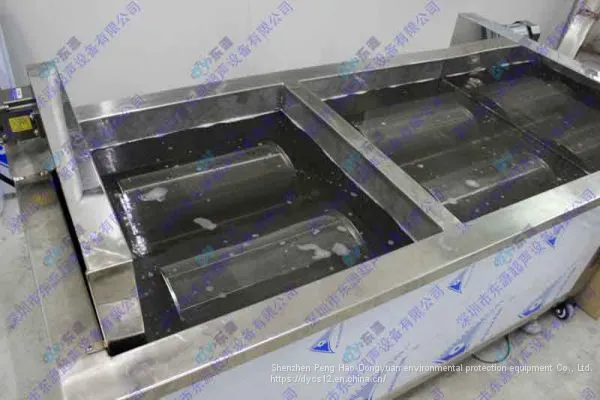

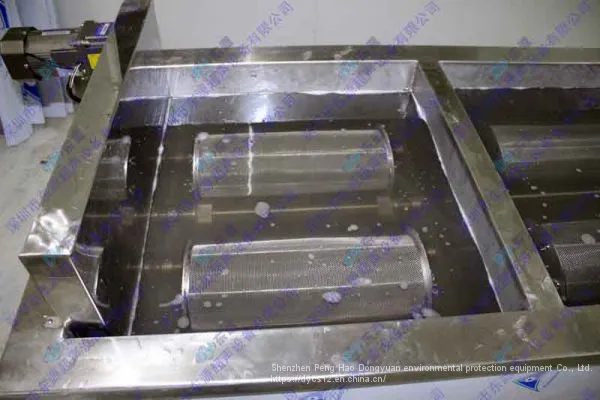

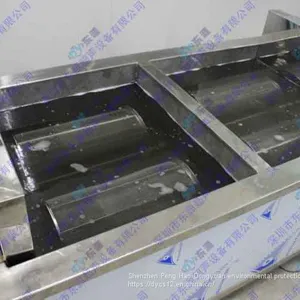

6, ultrasonic cleaning trough effective size:

DYS - 1012 size is: 370 * 280 * 330 mm,

DYS - 1018 size is: 460 * 330 * 400 mm,

DYS - 1024 size is: 600 * 400 * 400 mm,

DYS - 1030 size is: 600 * 500 * 400 mm,

DYS - 1036 size is: 650 * 550 * 440 mm,

DYS - 1048 size is: 800 * 600 * 600 mm, my company all other Specifications can also be a order.

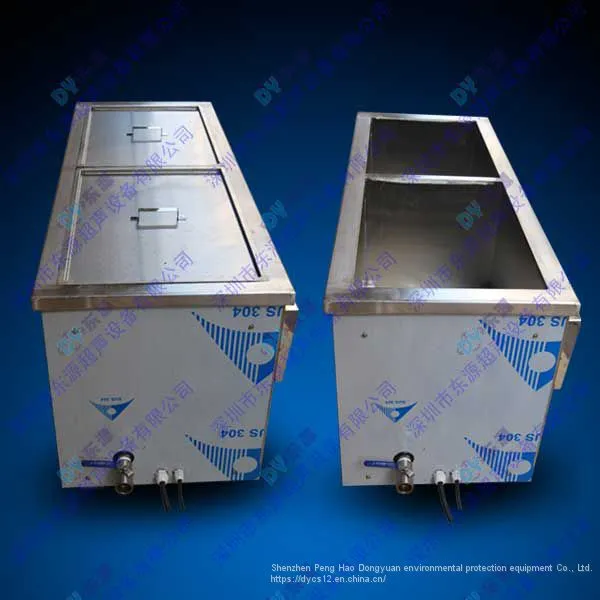

7, power supply and into the line and drainage location:

DYS - 1012 to 1024 heating power single-phase AC 220 V Voltage power supply;

DYS - 1030 to 1048, using AC three-phase four-wire system Voltage 380 V power supply, power supply frequency 50 Hz, the other power Supply can be customized production according to the requirement of International standards. The power into the line length is 2.5 M ultrasonic Line is 2.5 M;Note: "to be on the safe side machine power cord, please be sure to connect on the leakage switch".Ultrasonic cleaner and Ultrasonic into line in the right rear of the machine, central drainage in on the left side of the machine. If you have special request, please communicate with my in advance.

8, tip:"different materials and specifications customized needs certain production cycle, and business People to determine purchase please, so as not to bring unnecessary trouble to You.

OUR SERVICE:

1. Reply your inquiry in 24 working hours.

2. Experienced staffs answer all your questions in time.

3. Customized design is available.

4. Exclusive and unique solution can be provided to our Customer by our well-trained and professional engineers and staff.

5. Special discount and protection of sales are provided to Our distributor.

6. Professional factory: We are largest manufacturer, Specializing in producing all kinds of Shot Blasting Machine & Metal Abrasive in China, competitive with good quality.

7. as an honest seller, we always use superior raw material, Advanced machines, skilled technicians to ensure our products to be finished in High quality and stable feature.

If the above model is not suitable for your workpiece, please Tell us your need and then we can send you the most satisfying drawing.
