Bunched Cable Burning Spread Tester UL 1685 IEC 60332

Bunched Cable Burning Spread Tester UL 1685 IEC 60332 photo-1

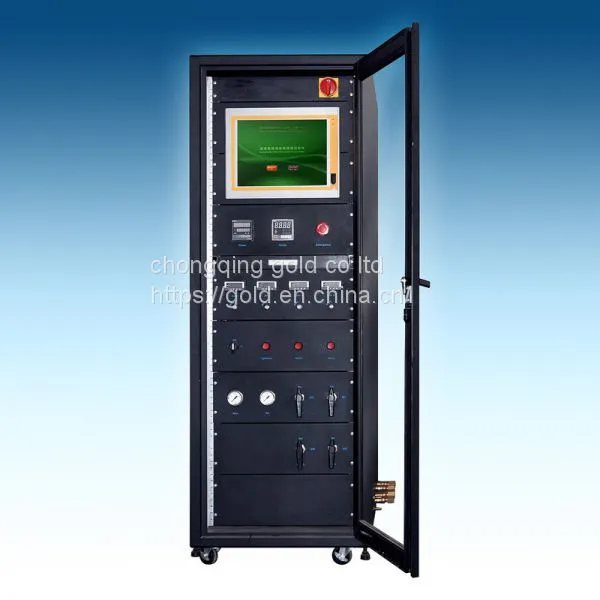

Bunched Cable Burning Spread Tester UL 1685 IEC 60332 photo-2
Bunched Cable Burning Spread Tester UL 1685 IEC 60332 photo-3
US$ 1 - 2 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
gold
Place of Origin:
China
Model Number:
GD 1685
Payment & Shipping
Payment Methods:
Port of Shipment:
chongqing
Delivery Detail:
7 days
Brand Name gold
Place of Origin China
Model Number GD 1685

Introduction:
Bunched Cable Vertical Flame Spread Tester is used to bundle cable orfiber optic cable to detect vertically mounted under specified conditions forvertical flame spread inhibiting the ability of the instrument, the power cables,control cables, fiber optic cable bundle burning test Preparation means. Whengiven a certain amount of housing supply of gas and the use of standardignition source of ignition, this instrument can be used to test for verticalflame vertical flame vertical diffusion to electric cables and wires of state.In addition, if the tester burner adjustment of 20 degrees can be achieved byIEEE 383 (IEEE 1202) testing standards. Equipment can be equipped with heatrelease instrument configure the port, with the gas analyzer can measure thethermal power values such as HRR (heat release rate),SPR(smoke generationrate) and so on

International standards:

1. UL1685
2. IEC 60332-3-10
3. EN 50399
4. GB/T 18380.31

Features:

1, high intelligence, easy tooperate;

2, professional industrialdesign, beautiful, generous;

3, precision equipment, security,and stability;

4, microcomputer control system,intelligent testing process; no manual timing and related operations;

5, corrosion-resistant stainlesssteel housing;

Control system:

1.PLC withlarge-screen touch screen control system;

2, automaticignition system, automatic timing; Timing range 999min, accuracy 1s;

3, experimental datais automatically stored, free inquiry;

4, 40 minutes, 1hour timekeeping reminders;

5, the specimenmounts with electric crane lift.


Specifiction:

Size 1,000(w) ×  2,000(D) ×  4,000(H)
Console Size 600 (W) × 750 (D) × 1,600 (H) mm
Power AC 220V, 50 / 60hz, 15A
Weight 1500KG
Utilities Propane Gas Valve System, Ignition System


Product Tags: Cable Falme Spresd , Cable Burning Test , UL 1685
