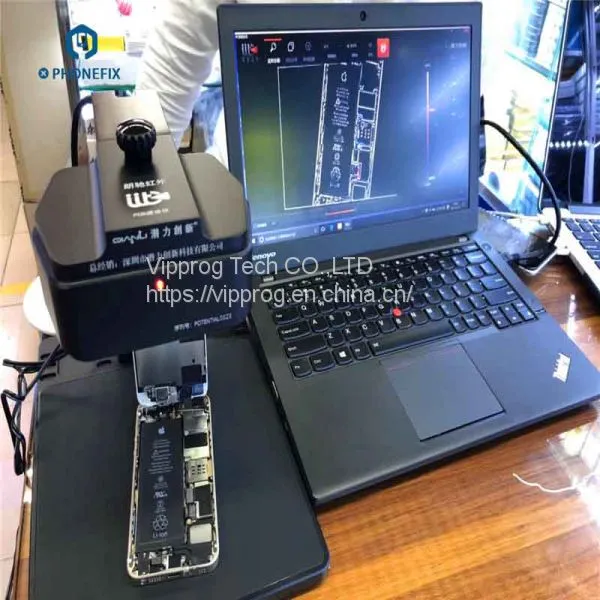

Phone PCB Fault Diagnostic Tool is professional cell phone motherboard fix machine, Infrared Thermal Image Analyzer is used for the diagnosis on cell phone components temperature to judge if cell phone PCB is short circuit, the Infrared Thermal Image Analyzer can test your cell phone main board, pc main board, multimeter main borad and many other PCB board very fastly and accurately.
Features:

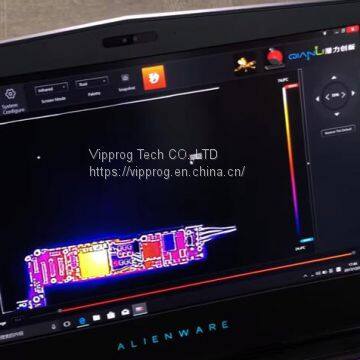

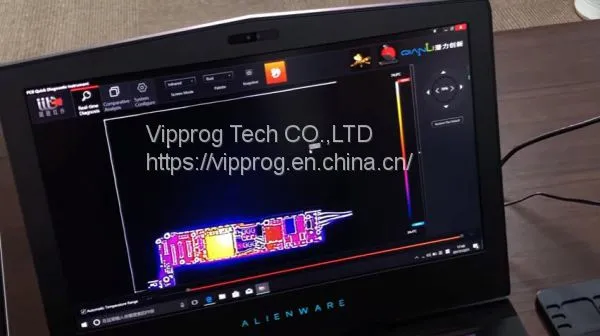

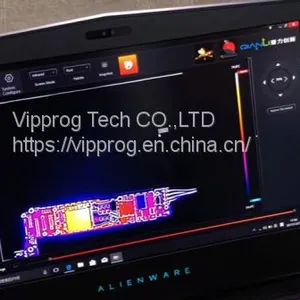

1. Detect the motherboard chip, resistor and capacitor running temperature by the powerful PC intelligent analysis software and intelligent algorithm;
2. Fastly Locate the capacitance of micro current leakage, short-circuit position;

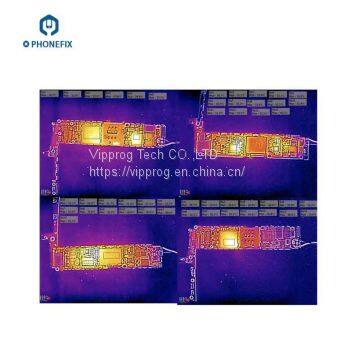

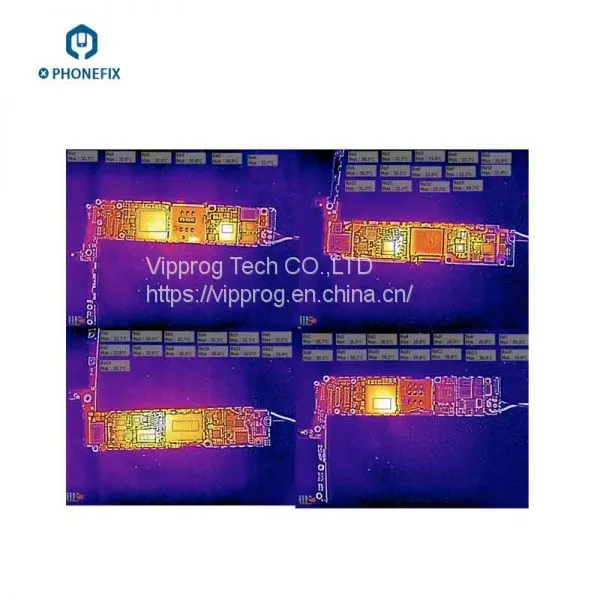

3. Through the analysis of normal / abnormal motherboard comparison mode, quickly and accurately identify the problem chip, help phone fix technician troubleshooting motherboard, greatly improve the efficiency and accuracy of maintenance of the new generation of overhaul equipment
Specification:
Resolution: 160x120
Wavelength range: 7.5-13.5 μm
Lens angle: 57 °x44°
Visible part of the parameters: resolution 1920x1080
Display Mode: Visible / Infrared Thermography / Dual Optical Interlace positioning

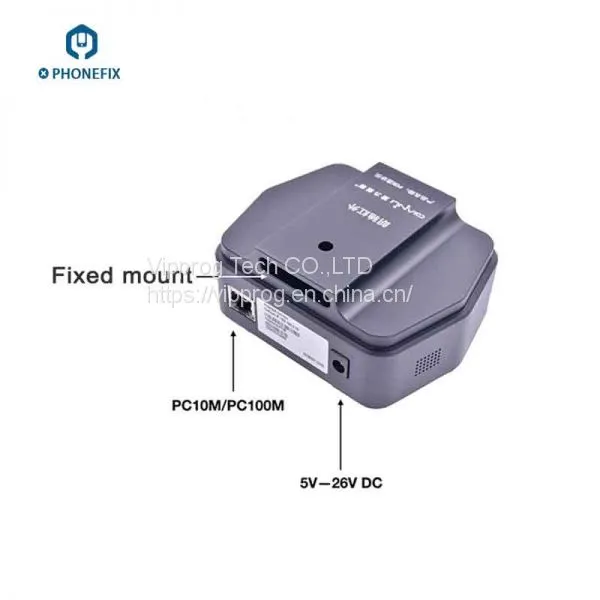

Power: Input power voltage 5-26V DC
Power consumption: 2.2W (maximum 3W)
Temperature function: full temperature
