Help CenterIHK Double Faced Mechanical Seal Chemical Pump
Related Products
1. Summarize:

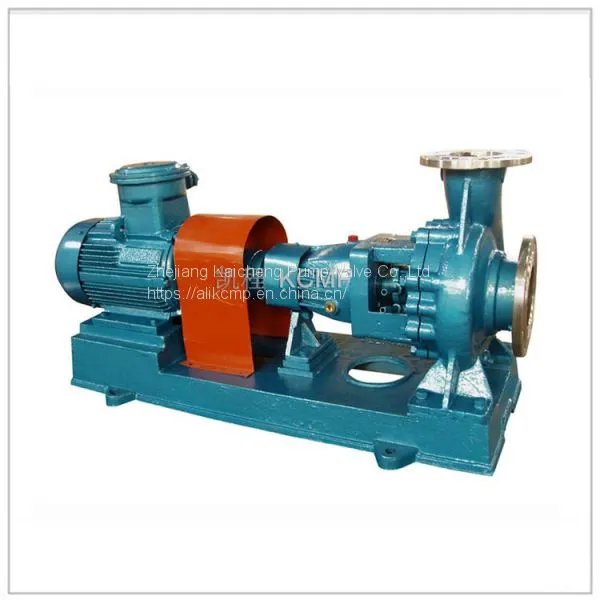

IHK(G)series (starch pump,high-temp slurry feed pump ) is the series of single-stage single-suction cantilever-type centrifugal pump. After absorbing the foreign advanced technology, according to the deign of international standard ISO2858 and manufacturing acc to ISO5199/DIS, our company upgrading and innovating this standard industrial pump on the basic of IH series pump. It is the derived product of IH series chemical centrifugal pump. The dimensions of the components are all already realized the standard energy efficient products and welcomed by the customers.
2. Usage:
It is mainly used in petroleum, chemicals, synthetic fibers, fertilizer, power station, metallurgy, food and pharmaceutical industry sectors. It is used for transporting clean liquid or liquid which contains particles , low or high temperature liquids, neutral or corrosive liquids, generally transmission medium temperature is -45 ℃-200 ℃.High-temperature type, slurry feed type can transport media of -60 ℃ ~ +360 ℃ of corrosive liquid with solid particles at normal temperature and high temperature .Also conveying corrosive liquids similar to water. This pump is applicable to chemical, petroleum, metallurgy, pharmaceutical, distillery, power generation, food, environmental protection and harsh environment of bad working conditions.
3. Characteristic

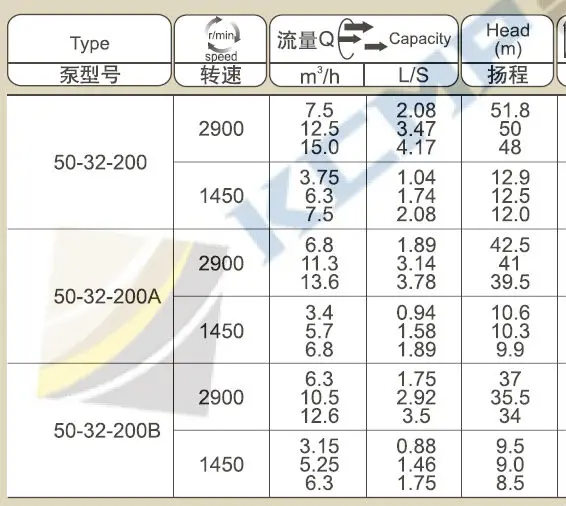

This pump‘s feature is especially particular, 6 sets of the form of sealed structure, three kinds of bearing box cooling method, two kinds of impeller forms, reliability, strong, good interchangeability. flux 3.4 ~ 460m3 / h outlet pressure: H = 3.6 ~ 132m, rotate speed 1450-2900r/min
