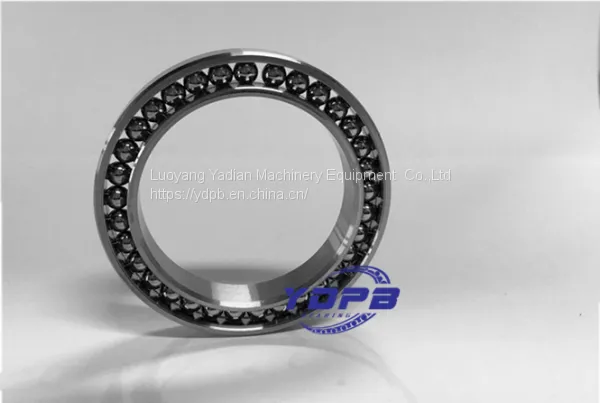

3E818KAT2 thin section ball bearings 90x120x18mm flexible bearing in harmonic drive thin wall bearing
Industrial robots bearings
Robot bearing/harmonic drive bearing is a special kind which easily deforms in a reversible way. It has a very thin outer ring which varies from round shape to oval interatively during its working time. easily double sealed bearing designed primarily for application of radial load—deep ball grooves also permit application of thrust load in either direction, often used in conjunction with another bearing.
Note: Some bearings we have use new structure( with cage and cover,convenient for you to install)
Other Dimension
Industrial Robots Use Flexible Bearings Regular models
With cage
Model |
Boundary Dimension(mm) |
Deformation |
Rated speed |
Rated torque |
Rating Load KN |
|||
d |
D |
B |
max |
r/min |
Kgf.m |
Cr |
Cor |
|
3E904KAT2 |
18.8 |
25 |
4 |
0.2 |
3000 |
0.2 |
2.05 |
1.46 |
3E905KAT2 |
24 |
32 |
5 |
0.2 |
3000 |
0.6 |
3.44 |
2.6 |
3E806KAT2 |
30 |
40 |
6 |
0.3 |
3000 |
1.6 |
5.15 |
4.07 |
3E907KAT2 |
37 |
50 |
8 |
0.3 |
3000 |
3 |
7.13 |
5.86 |
3E809KAT2 |
45 |
60 |
9 |
0.4 |
3000 |
7.5 |
14.76 |
13.18 |
3E911KAT2 |
57 |
75 |
12 |
0.5 |
3000 |
7.5 |
14.76 |
13.18 |
3E812KAT2 |
60 |
80 |
13 |
0.5 |
3000 |
12 |
15.51 |
14.44 |
3E814KAT2 |
70 |
95 |
15 |
0.6 |
3000 |
20 |
22.38 |
21.57 |
3E815KAT2 |
75 |
100 |
15 |
0.6 |
3000 |
25 |
26.4 |
25.67 |
3E818KAT2 |
90 |
120 |
18 |
1 |
3000 |
45 |
34.7 |
34.94 |
3E822KAT2 |
110 |
150 |
24 |
1 |
1500 |
80 |
43.55 |
45.63 |
3E824KAT2 |
120 |
160 |
24 |
1 |
1500 |
120 |
57.02 |
57.75 |
3E826KAT2 |
130 |
175 |
30 |
1 |
1500 |
170 |
81.59 |
86.1 |
3E830KAT2 |
150 |
200 |
30 |
1 |
1500 |
200 |
91.6 |
102.67 |
3E832KAT2 |
160 |
220 |
35 |
1.25 |
1500 |
220 |
115.66 |
127.59 |
3E836KAT2 |
180 |
240 |
35 |
1.5 |
1500 |
250 |
130.04 |
146.47 |
3E838KAT2 |
190 |
250 |
40 |
1.5 |
1500 |
350 |
139.96 |
160.42 |
3E842KAT2 |
210 |
280 |
45 |
1.5 |
1500 |
400 |
173.15 |
210.91 |
3E844KAT2 |
220 |
300 |
45 |
1.5 |
1500 |
500 |
181.72 |
231 |
Full balls
M14 Series Dimension dxDXH 25.07x33.896x6.095/6.35mm
M17 Series Dimension dxDXH 30.3x41.722x 6.16/6.68mm
M20 series Dimension dxDXH 35.56x49.073x7.24/8.13mm
M25 series Dimension dxDXH 45.212X61.341X9.015/6.35mm
M32 series Dimension dxDXH 58.928x79.756x11.81/8.64mm
Nonstandard Flexible Bearing Parameters
Accuracy class:P6.P5.P4
| No. | Bearing Model | Size | Remark | ||
| D | d | B Outer /Inner | |||
| 1 | φ20 | 20 | 14.5 | 4 | |
| 2 | φ26.11 | 26.11 | 19.9 | 4 | |
| 3 | φ26.54 | 26.54 | 20.2 | 4 | |
| 4 | φ27.5 | 27.5 | 20.4 | 4.5 | |
| 5 | φ30 | 30 | 22 | 6 | |
| 6 | φ33.87 | 33.87 | 25 | 6.1/6.4 | |
| 7 | φ33.896 | 33.896 | 25.07 | 6.095/6.35 | 14 Series |
| 8 | φ34 | 34 | 25.5 | 5 | |
| 9 | φ34.52 | 34.52 | 26.2 | 5 | |
| 10 | φ34.7 | 34.7 | 26.2 | 5 | |
| 11 | φ35.5 | 35.5 | 26.5 | 6 | |
| 12 | φ38.6 | 38.6 | 28.4 | 6 | |
| 13 | φ40.1 | 40.1 | 30.1 | 6 | |
| 14 | φ41.7 | 41.7 | 30.24 | 6.2/6.7 | |
| 15 | φ41.72 | 41.72 | 30.295 | 6.16/6.67 | |
| 16 | φ41.722 | 41.722 | 30.3 | 5.16/6.68 | 17 series |
| 17 | φ42 | 42 | 33 | 8 | |
| 18 | φ48 | 48 | 35.5 | 8 | |
| 19 | φ48.2 | 48.2 | 35.5 | 8 | |
| 20 | φ48.3 | 48.3 | 35.9 | 8 | |
| 21 | φ49.03 | 49.03 | 35.5 | 7.2/8.1 | |
| 22 | φ49.06 | 49.06 | 35.55 | 7.2/8.1 | |
| 23 | φ49.07 | 49.07 | 35.56 | 7.23/8.1 | |
| 24 | φ49.073 | 49.073 | 35.56 | 7.24/8.13 | 20 Series |
| 25 | φ49.08 | 49.08 | |||
| 26 | φ49.1 | 49.1 | 35.55 | 7.2/8.1 | |
| 27 | φ49.4 | 49.4 | 36.6 | 8 | |
| 28 | φ54 | 54 | 42.52 | 8.1 | |
| 29 | φ56 | 56 | 43 | 9 | |
| 30 | φ61.34 | 61.34 | 45.212 | 9/6.3 | |
| 31 | φ61.341 | 61.341 | 45.212 | 9.015/8.6 | |
| 32 | φ61.35 | 61.35 | 45 | 9/6.3 | |
| 33 | φ61.7 | 61.7 | 46.3 | 9 | |
| 34 | φ63 | 63 | 48 | 9.5 | |
| 35 | φ72 | 72 | 55 | 10 | |
| 36 | φ77.2 | 77.2 | 57 | 12 | |
| 37 | φ79.74 | 79.74 | 58.96 | 11.5 | |
| 38 | φ79.756 | 79.756 | 58.928 | 11.81/8.64 | 32 Series |
| 39 | φ92.5 | 92.5 | 68 | 15 | |
| 40 | φ95 | 95 | 71 | 15 | |
| 41 | φ96.5 | 96.5 | 72 | 15 | |
| 42 | φ98 | 98 | 73 | 15 | |
| 43 | 816 | 110 | 80 | 16 | |
| 44 | φ123 | 123 | 92.5 | 18 | |
| 45 | φ125 | 125 | 94 | 18.5 | |
| 46 | 919 | 130.434 | 96.954 | 25 | |
| 47 | φ156 | 156 | 118 | 24 | |
| 48 | φ192 | 192 | 144 | 30 | |
Pls contact us for more dimensions~
Packaging:Bearing+plastic bags+thin plastic foam+Carton box+wooden case
Payment Terms:
Most of our customers use T/T( 40% in advance, Balance before shippment), Western Union ,Money Gram, for larger amount consider LC, all can be negotiable.
Many other precision bearings series available
1.INA YRT rotary table bearings YRT50.....YRT1200
2.INA YRTS high speed Axial Radial Load Rotary table bearing YRTS200....YRTS460
3.INA YRTM rotary table bearings with AMO angle measuring system to improve the accurancy. YRTM150.....YRTM460
4.INA ZKLDF serie bi-direction thrust angular contact ball bearings ZKLDF100.....ZKLDF460
5.THK (IKO) RB/CRB/CRBC series crossed roller bearings Inner ring rotate bearing id 35mm----1500mm
6.THK RE series crossed roller bearings ,Outer ring rotate id 35mm----1500mm
7.THK RA thin section crossed roller bearing id 100mm---200mm
8.THK SX series crossed roller bearings ,ID 70mm--------500mm
9.THK RU Series integrate inner ring and outer ring ,industrial robots use cross roller bearing RU42---RU445
10.INA XU/XSU series cross roller slewing bearing,XU050077---XU300515,XSU080168---XSU090398
11.IKO CRBH series integrate inner ring and outer ring cross roller bearing CRBH5013------CRBH25025
12.Timken XR/JXR Crossed Tapered Roller Bearings ,used for high speed vertical lathe XR496051---XR,XR678052,XR766051,XR855053,XR882055,XR889058,JXR637050,JXR652050,JXR699050.
13.Kaydon Thin section ball bearings KA,KG,KD series.
14.Ceramic bearings
15.Slewing bearings
16.Custom made bearings
/
