Multi spindles cabinet door carving CNC router ,ATC CNC Router 1325 for wardrobe with Syntec control system

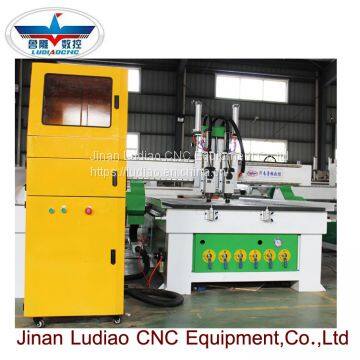

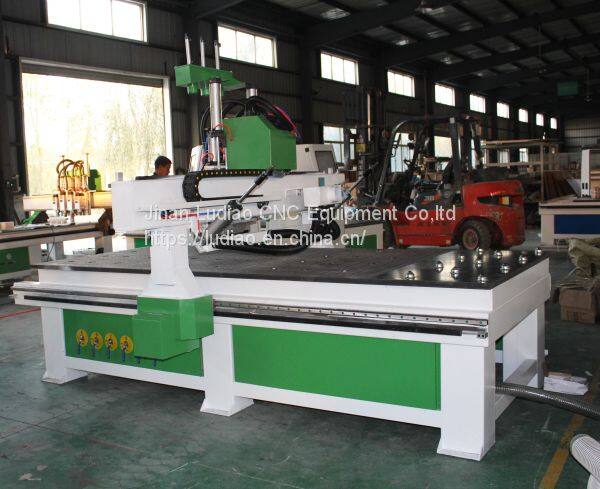

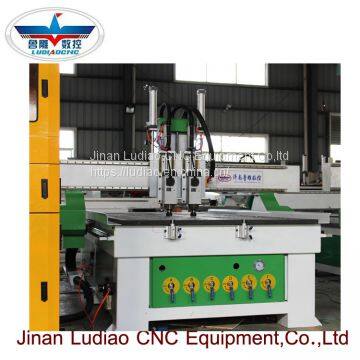

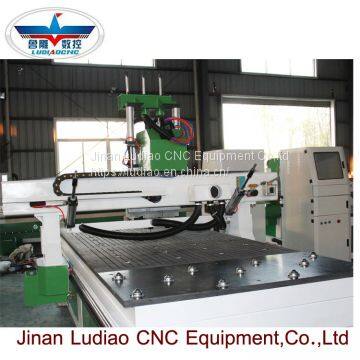

Machine appearance
Stronger thicker machine structure body.the foot with 200*200mm size
Auxiliary cylinder for protecting Z axis stable running
Dust cover frame

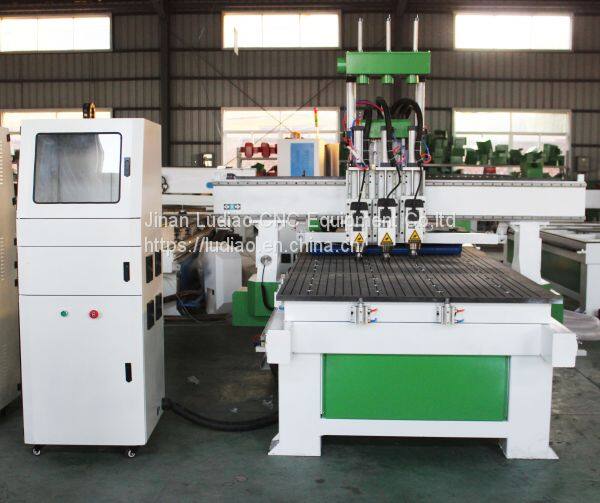

Three spindle
The middle one is 6KW air cooling,stronger for cutting
The others are 4.5kw air cooling, for both cutting& engraving
Auto pop&pin
Which is for calibrating the board, easier for find the working piece origin sooner
Side guide rail for running
Guide rail installed on the side of the machine bed ,reducing the resistance of running. Another advantage is assuring the working area .cutting precious size for panel furniture
Auxiliary feeding wheel
Easy for putting board ,save human cost

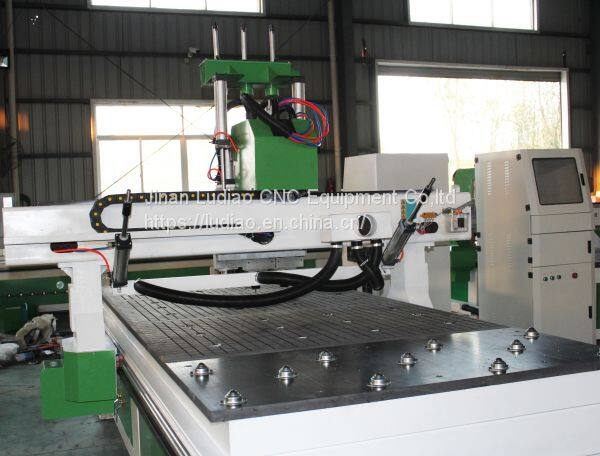

PVC Vacuum suction table
6 Vacuum suction zones for both big&small piece working, making sure the suction is enough ,
2.Introduction
1.This style is equipment with 3 kinds of cutters, there is no need to change the cutters when engraving or cutting. The program can work automatically. The advantage is low investment. High profit, low maintenance, easy to operate. It is also very easy for new user to operate.
2.The whole machine is welded with seamless steel structure, the stability is good, not easy to be deformed. The machine adopts gantry movement, it can process any kinds of materials freely.
4.Adopt important linear square orbit, two line sliding track, heavy loading, stable working, high precision and long lifetime. Adopt imported ball screw, high precision.
5.Well compatibility: CAD/CAM designing software e.g.TYPE3/Artcam/Castmate/ Wentai etc.
6.This model is suitable for processing any kinds of materials in bulk.
3.Specification
No |
Mode |
1325 |
1 |
Working size |
1300*2500*200mm |
2 |
Working table |
Vacuum suction |
3 |
Machine body |
8mm SS sheet welding |
4 |
Guide rails |
Taiwan Hiwin 25mm Guide rails |
5 |
Spindle pics |
3pis
|
6 |
Spindle power |
1Pic-4.5KW 2pics-6KW |
7 |
Cooling mode |
Air cooling |
8 |
Spindle rotating speed |
0-24000rpm/min |
9 |
Driver motor |
Leadshine Servo motor |
10 |
Transmission |
XY is with Taiwan Rack transmission Z axis is with German ball screw |
11 |
Guide rail |
Taiwan Hiwin 25mm on side |
12 |
Cable |
IndustrialGerman anti-interference |
13 |
Control system |
NC studio |
14 |
Software |
JD paint /Wentai /Artcam |
15 |
Command |
G code, U00.mmg etc |
16 |
Lubrication |
Auto oil |
17 |
Tool sensor |
yes |
18 |
Auxiliary feeding |
yes |
19 |
Auxiliary unloading |
yes |
20 |
Running environment |
Windows7/xp 32bits |
21 |
Working power |
AC 380V 3P.50Hz |
22 |
Warranty |
One year |
23 |
Standard accessories |
1Cutting tools 2.CD manual 3.Power line 4.Software (Artcam. Jdpaint etc) 5.7.5KW vacuum pump 6.3KW Dust collector
|
24 |
Delivery time |
18days |
25 |
Warranty |
One and half year |
26 |
Payment |
TT |
