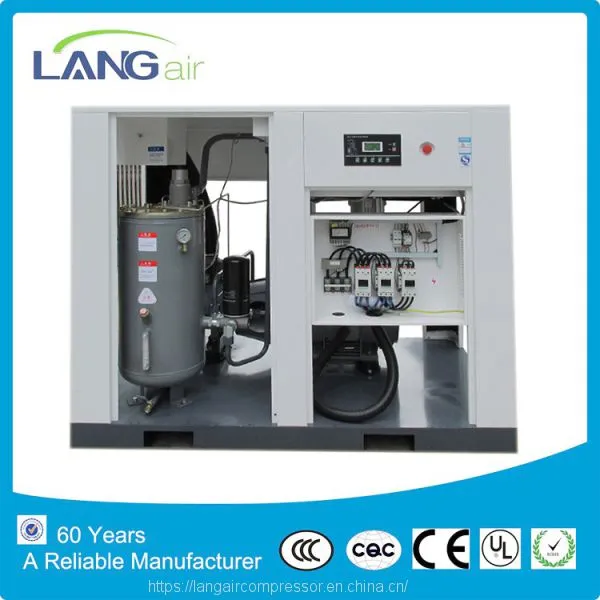

Saving Electric And Energy VSD Type Air Compressor
US$ 2000 - 6000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
LANGAIR
Place of Origin:
China
Model Number:
LVA-45GA
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
7 days
Related Products
-
All in One Screw Air Comrpessor With Air Dryer and TankUS$ 2000 - 4000MOQ: 1 Piece -
Screw Air Compressor Belt Air Compressor Oil Free Air CompressorUS$ 1000 - 5000MOQ: 1 Piece
-
Rotary Air Compressor Screw Air Compressor(10hp-333hp)US$ 1000 - 5000MOQ: 1 Piece
-
7.5KW 10HP VSD Air Compressors Permanent Magnet Rotary Screw Air CompressorsUS$ 390 - 450MOQ: 1 Unit
-
Permanent Magnetic VSD Air Compressor for Textile Manufacturing 30-50HPNegotiableMOQ: 1 Set
Brand Name
LANGAIR
Place of Origin
China
Model Number
LVA-45GA
Certification
CE,ISO
Type
Screw
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
1
Weight
1150KG
Dimension(L*W*H)
1300*1000*1470MM
Condition
New
Voltage
380V/220/440
Mute
Other, 75db
Lubrication Style
Lubricated
Power Source
AC Power
Configuration
Stationary
Introduction

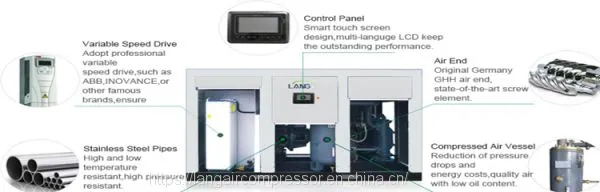

Every model has a corresponding frequency conversion compressor, which controls the air delivery by changing the rotational speed of motor, making the air output and electricity consumption smoothly vary the air supply decreases and so does the electricity consumption for energy conservation.
With the help of the PID regulator disposed in frequency converter, it can start up smoothly, causes little impact on the power grid and generates great low-frequency start moment of current vector control and small running current. When the air use decreases, the compressors enter the sleeping status, saving considerable energy. Moreover, digital to analog conversion is highly accurate and the integration design features few fault points.
| Model | LVA-45GA/W | ||||
| Working | psig | 100 | 116 | 145 | 181 |
| Pressure | bar | 7 | 8 | 10 | 12.5 |
| Air Delivery | cfm | 282.5 | 271.9 | 243.6 | 211.9 |
| m3/min | 8 | 7.7 | 6.9 | 6 | |
| Motor Power | kw/hp | 45/60 | |||
| Motor Efficiency | Ultraefficient/IE3/IP54/IP55 | ||||
| Class | |||||
| Type of Driving | Variable frequency | ||||
| Type of Cooling | Air Cooling/Water cooling | ||||
| Dimension(mm) | L | 1300 | |||
| W | 1000 | ||||
| H | 1470 | ||||
| Weight | kg | 1150 | |||
| Output pipe | 11/2“ | ||||
| Diameter | |||||
| Certification | CE/ISO9001:2015/TUV/UL/SGS/ASME | ||||
| Voltage | 380V/3PH/50HZ/60HZ | ||||
| 220V/3PH/50HZ/60HZ | |||||
| 440V/3PH/50HZ/60HZ | |||||
| 415V/3PH/50HZ/60HZ double voltage is also ok | |||||
| Exhaust oil volum | |||||
| Noise | db | test according the national standard GB/T4980-2003 | |||
| outlet air humidity | ℃ | ambient temperature+15℃ | |||
| Cooling air volume | m3/min | 185 | |||
| Cooling water volume | L/min | 30 | |||
