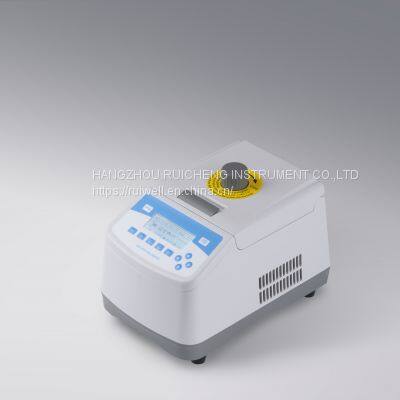

Help CenterDry Bath Incubator(heating Lid) ES1000
Related Products
Description:
The ES1000 Dry Bath Incubator with heating lid is an incubation based on semiconductor heating refrigeration technology and PID automatic temperature control technology. Timing flexible, constant temperature function and multi-points operating mode are effectively improving the efficiency of the laboratory work. It is the ideal equipment, applying to kinds of sample incubation, catalyze, save and etc.
Features:

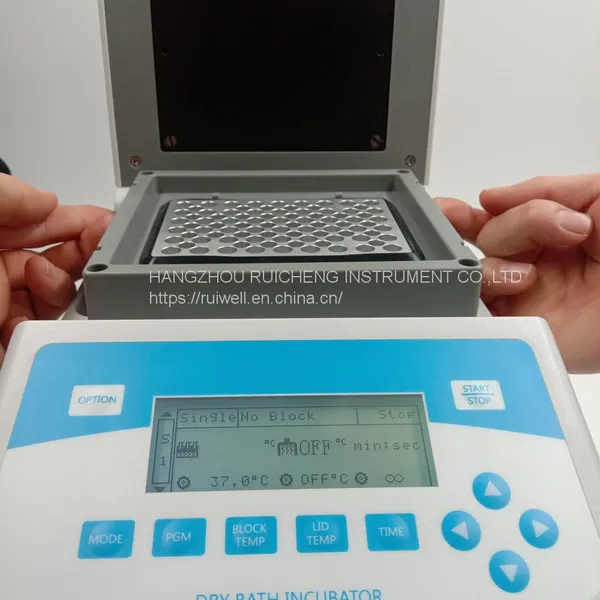

u Easy to set up and use, all information real-time display and showing setup operation, convenient to observe equipment running status.
u High temperature control precision.
u Different blocks for choice, also can be customized according to requirement.
u Two options for timer: 1sec ~ 99min59sec and 1min ~ 99h59min
u The temperature of Heating lid can be controlled.
u Multi points mode function and multi cycle times can be set.
u Automatic preheating function.
u Automatic power recovery function
u Automatic running function.
u Save 4℃ when run over .
u Temperature calibration function.
u Built-in software and hardware over temperature protection device, will use more reliable.
u Support blocks classification custom calibration function.
Parameters
Model |
ES1000 |
|
Block |
ES series |
ESC series |
Temp setting range |
0℃~100℃ |
-10℃~100℃ |
Temp control range |
RT+5℃~100℃ |
RT.-25℃~100℃ |
Time range |
1sec ~ 99h59min/∞ |
1sec ~ 99h59min/∞ |
Temp accuracy |
≤±0.3℃@37℃ |
≤±0.3℃@37℃ |
Display accuracy |
0.1℃ |
0.1℃ |
Temp uniformity |
≤±0.3℃@37℃ |
≤±0.3℃@37℃ |
Heating time |
≤12min(from 25℃ to 100℃)* |
≤12min(from 25℃ to 100℃)* |
Cooling time 1 |
--- |
≤12min(from 100℃ to 25℃)* |
Cooling time 2 |
--- |
≤25min(from RT to RT-25℃)* |
Heating lid temp setting range |
OFF~+10℃ |
OFF~+10℃ |
Heating lid temp accuracy |
≤±0.5℃* |
≤±0.5℃* |
Heating lid heating time |
≤10min(from 25℃ to 100℃)* |
≤10min(from 25℃ to 100℃)* |
Storage at 4℃ |
--- |
Yes * |
Multi points running |
Yes(Max 5points) |
Yes(Max 5points) |
Multi cycle |
Yes(Max 99times) |
Yes(Max 99times) |
Auto running |
Yes |
Yes |
Auto heating |
Yes |
Yes |
Auto resume to run |
Yes |
Yes |
Capacity |
See optional block |
See optional block |
Power |
150W |
150W |
Voltage |
AC110 or AC220V/50-60HZ |
AC110 or AC220V/50-60HZ |
Fuse |
250V 3A Ф5×20 |
250V 3A Ф5×20 |
Dimension(mm) |
300x200x210 |
300x200x210 |
Weight(kg) |
4.0 |
4.7 |

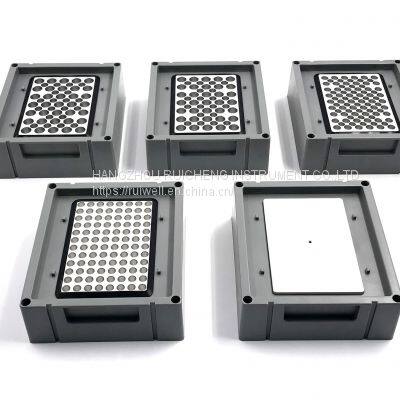

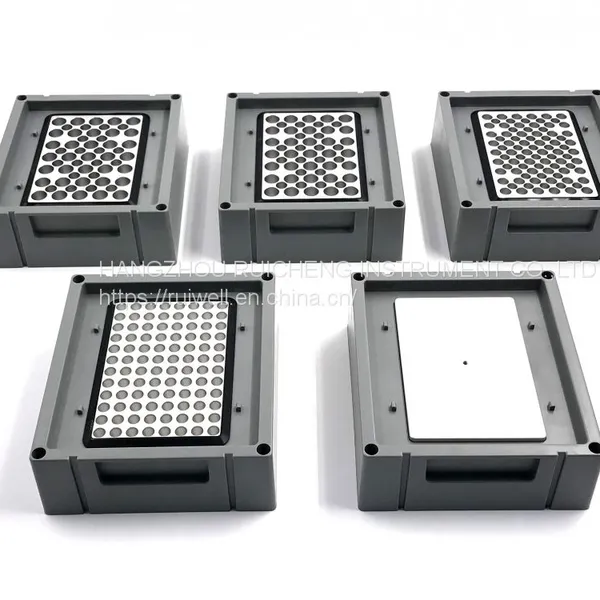

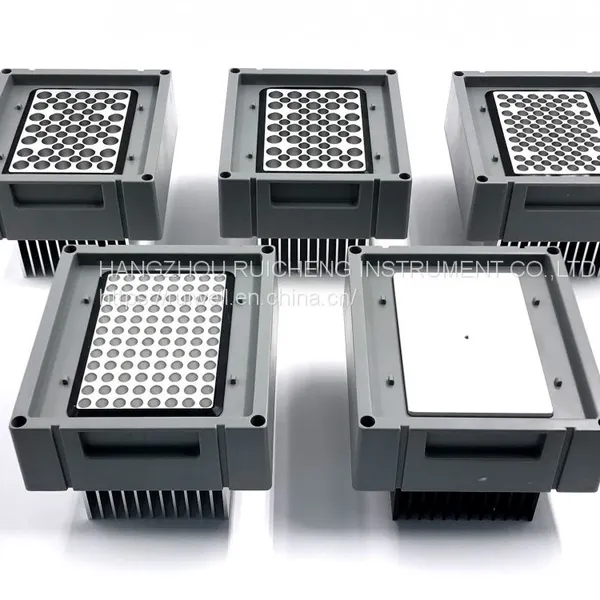

Optional block
Type |
Capacity |
Temp. range |
ESC-01 |
35x2.0ml centrifuge tube |
RT-25℃~100℃ |
ESC-02 |
35x1.5ml centrifuge tube |
RT-25℃~100℃ |
ESC-03 |
54x0.5ml centrifuge tube |
RT-25℃~100℃ |
ESC-04 |
96x0.2ml centrifuge tube |
RT-25℃~100℃ |
ESC-05 |
96x0.2ml Elisa plate |
RT-25℃~100℃ |
ES-06 |
35x2.0ml centrifuge tube |
RT+5℃~100℃ |
ES-07 |
35x1.5ml centrifuge tube |
RT+5℃~100℃ |
ES-08 |
54x0.5ml centrifuge tube |
RT+5℃~100℃ |
ES-09 |
96x0.2ml centrifuge tube |
RT+5℃~100℃ |
ES-10 |
96x0.2ml Elisa plate |
RT+5℃~100℃ |
