Chengli Special Automobile Co., Ltd as the famous supplier and manufacturer of refrigerated van trucks in China since 2004, can manufactures and selles 1.5ton to 35ton refrigerated truck, 13 feet to 40 feet refrigerator truck, insulated truck bodies, refrigeration truck freezer van truck insulation truck reefer trucks.

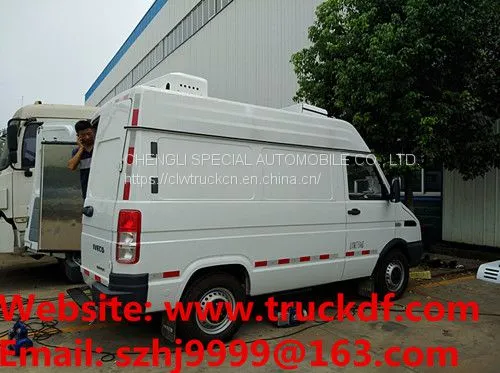

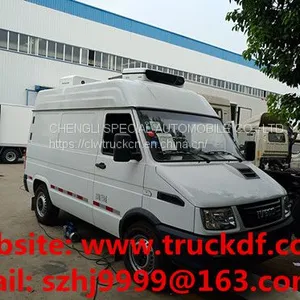

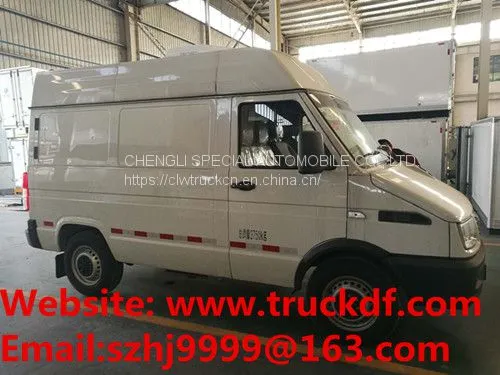

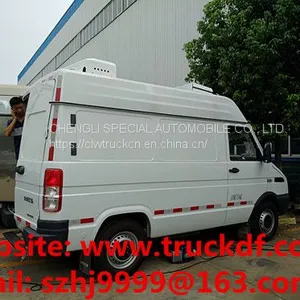

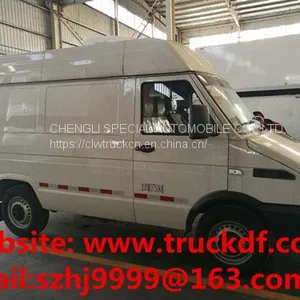

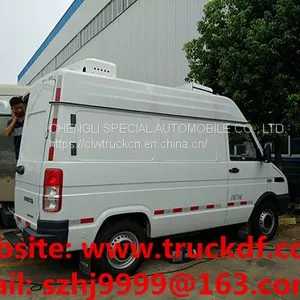

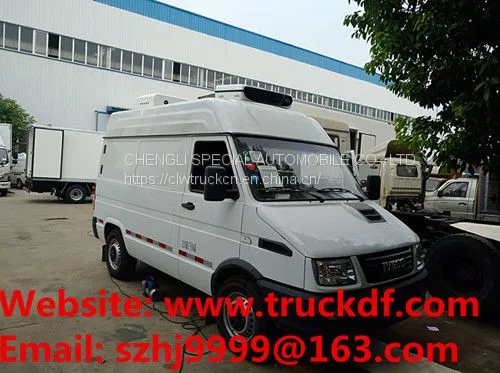

More pictures of IVECO brand 4*2 LHD diesel refrigerated minibus manufactured by Chengli Special Automobile Co., Ltd. as below
2018s best price IVECO brand 4*2 LHD diesel refrigerator minivan for sale
main parameters of hot sale IVECO Euro 5 diesel refrigerated minibus as below
Items |
Descriptions |
Specifications and Types |
General |
Truck Name |
IVECO refrigerator minibus for sale |
Truck model |
CLW5040XLCN5 |
|
Drive Type |
4*2 LHD |
|
Payload (kg) |
1000-2000kgs |
|
Seating person |
2-3 |
|
GVW (kg) |
3750 |
|
Curb Weight (kg) |
2390 |
|
Overall Dimensions (L*W*H) (mm) |
4850*2000*2735 |
|
Insulation van dimension(L*W*H)(mm) |
2450*1830*1500,1720 |
|
Driver cab |
IVECO brand V35 Turbo Daily series single row cab with 4KW air conditioner, |
|
Max speed(km/h) |
80,100,125km/h |
|
Engine |
Engine Model |
SOFIM8140.43S5 |
Engine Brand |
SOFIM |
|
Fuel Type |
Diesel |
|
Max output (hp/rpm) |
130hp/95KW |
|
Emission Standard |
Euro Ⅴ |
|
Capacity (cc) |
2798ml |
|
Oil consumption |
12.38L |
|
Chassis |
Truck chassis |
IVECO |
Tire Specification |
215R16LT *4 |
|
Wheelbase (mm) |
2800 |
|
Axle No. |
2 |
|
Steering Wheel |
Left hand drive |
|
Gear Box |
IVECO 2826.5 speed gearbox, manual |
|
ABS |
Yes |
|
Oil tank |
70Liters oil tank |
|
Front/rear suspension(mm) |
960/1090 |
|
Front/rear tread(mm) |
1721/1692 |
|
Approach/departure angle |
21/14.5(°) |
|
Axle load(kg) |
1530/2220 |
|
Leaf spring |
-/6 |
|
Cold Room |
Box inner dimension(mm) |
2450*1830*1500 |
Box Side |
Exterior and interior with FRP( fiber reinforced plastic), and the middle with 80mm PU slices with vacuum negative pressure one-formed casting as the insulation layer, approved the related Ministry of Health of food grade requirements, etc. just like sandwich structure. |
|
Box Floor |
Baseboard adopts aluminum alloy anti-skipping diamond board, which assuring the insulation ability and the compact resistance of the baseboard. |
|
Doors |
Frame of standard rear double doors adopts the stainless steel structure frame with light mass and perfect corrosive resistance, etc. |
|
Reefer |
Van topped mounted reefer from -15℃/-5 to 0 ℃. |
Refrigerated truck from Chengli Special Automobile Co., Ltd with the van of vacuum composition adhesive PU foam sheet insulation layer. And the van surface is just flat and clean, high strength, long life time. And the insulation condition can reach the National A standard. All the door frame and door trims use stainless steel, And the outer and inside materials of the van can be upon request. The insulation layer if the refrigerated truck can choose 50mm thickness, 80mm thickness, choosing meat hook, vent gutter, single side door or double doors.
Chengli Special Automobile Co., Ltd as the famous supplier and manufacturer of refrigerated van trucks in China since 2004, can manufactures and selles 1.5ton to 35ton refrigerated truck, 13 feet to 40 feet refrigerator truck, insulated truck bodies, refrigeration truck freezer van truck insulation truck reefer trucks. More information, please feel free to contact with Ms. Anita.
Website:
Email: szhj9999@163.com
Skype: truck0011
Mob.: +86 13886878855
Whatsapp/Wechat: +86 13329899995
QQ: 504873236
