JL Series Portable Oil Purification/ Oil Filtration Unit With Three Filter Elements
- 100 Set / Sets per Month
- Shanghai
- T/T L/C
- 7 days
- High Performance Single-Stage Vacuum Dielectric Oil Purification/ Filtration/ Treatment Plant
- Superior Quality Dielectric Oil Filtration & Dehydration Plant (Oil Purifier)
- High Efficiency 500 LPH Dielectric Oil Purification/ Filtration Plant, Thermal Vacuum Dielectric Oil Purifier
- Latest Design High-Efficiency Vacuum Hydraulic Oil Filtration & Dehydration Plant
- High Quality Used Transformer Vacuum System Oil Filter Machine/ Oil Reconditioning Purifier, Movable Oil Purifier
- 2018 International Double Stages Vacuum Electric Power Transformer Oil Purification Machine
Product Details
Brand Name: | JUNSUN | Place of Origin: | China | Model Number: | JL-50 |
Certification: | ISO9001:2015 | After-sales Service Provided: | Engineers available to service machinery overseas | Weight: | 150KG |
Dimension(L*W*H): | 1000*500*750MM | Voltage: | 220 - 480V | Usage: | Lubricant Oil |
Condition: | New | Power(W): | 1KW | Working Pressure: | 0.3MPa |
Flow: | 600 - 18000LPH |
Product Description
Contact: Andy Zhang
zxy.export@gmail.com
Skype: zxy.export
Tel: +86 23 88529890
Mobile (WhatsApp): +86 13696443439

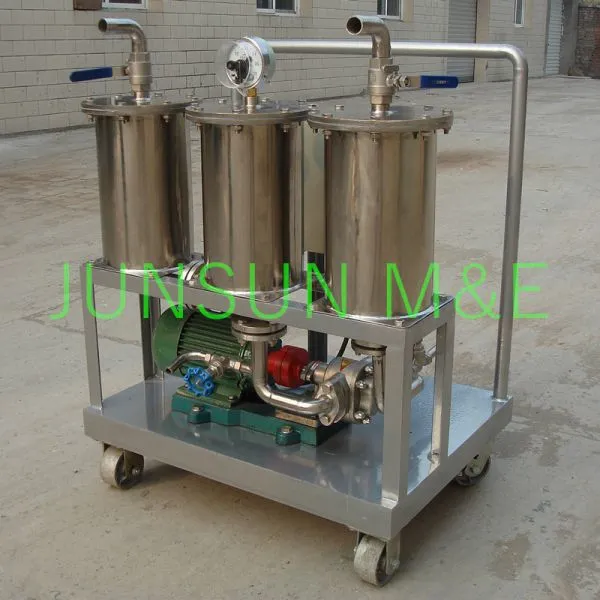

JL Series Portable Oil Purifier is equipped with three-stage filtration system, simple structure, easy to operate, and high reliability, requires no filter paper and causes no contamination.
The filtration system is with gradual increasing precision (Usually, primary filter is 80 microns secondary filter is 20 microns, fine filter is 5 microns), so JL oil purifier can effectively remove mechanical impurities from various industrial oil, improve oil cleanness and quality.
Besides, JL Series Portable Oil Purifier can be used as oil filling or oil pumping equipment, It is widely used for various industries such as power, petrochemical, metallurgy, mechanics, railway, etc.
Technical Parameters:
ITEM | UNIT | JL-30 | JL-50 | JL-80 | JL-100 | JL-200 | JL-300 |
Flow rate | Liters/hr | 1800 | 3000 | 4800 | 6000 | 12000 | 18000 |
Lift | M | 5 | 5 | 8 | 8 | 10 | 15 |
Cleanness | NAS | 6 | 6 | 6 | 6 | 6 | 6 |
Power | KW | 0.75 | 1.0 | 1.5 | 2.5 | 3.5 | 4.5 |
Power supply | 380V/ 50HZ/ 3P (AS PER YOUR REQUIREMENT) | ||||||
Weight | KG | 95 | 105 | 120 | 150 | 200 | 250 |
Note: The technical parameters are only for your reference, there may have changes due to technical and design improvement, the actual machine is the standard.
