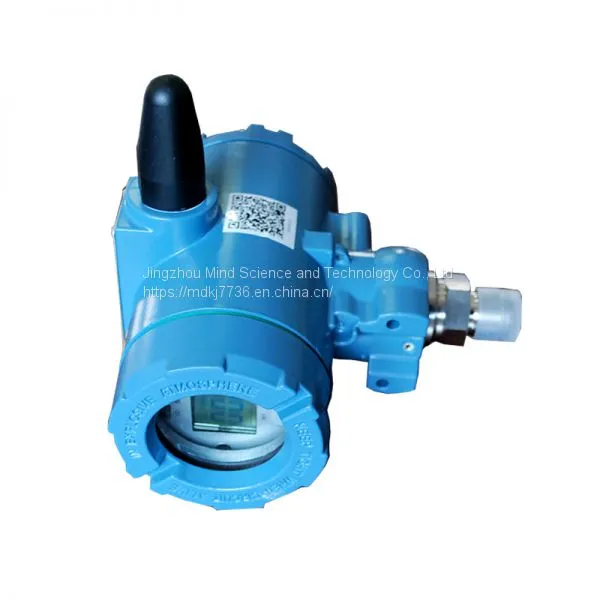

MD-WYB Wireless Pressure Transmitter

1. Features

★Signal output mode: ZIGBEE wireless communication, comply with the ZIGBEE PRO communication protocol (ZIGBEE 2007 version agreement), communication distance is greater than 150 m ( empty area up to 300 m), instrument shell antenna end compatible with external antenna.

★Adopt intelligent controller with LCD. the base color is blue, can display the pressure current time measurements, pressure unit, data range, battery, etc.

★ With low power consumption mode design, high precision, anti-jamming, free maintenance, meet the requirements of explosion-proof protection grade, parameters can be set, after the blackout, the  data is not lost.

★ There are remote operating functions, which support RTU, computer, intelligent terminal for parameter setting, data reading and so on.

★ It has alarm function.  It alarms when the battery is under voltage, the parameter error, the instrument failure and the pressure overlimit, and the alarm incident is recorded.

★Using nameplate and QR code mark, it is convenient for instrument itself to do the information management.

★It can be used for chemical industry, metallurgy, oil, electricity, water treatment, pharmaceutical, food and other automation industries.

2.Technique Data

★Measured medium: liquid, gas

★Medium pressure: 0～10 MPa，0～40 MPa。

★ accuracy grade: 0.5 grade

★ Power supply battery: 3.6 V, lithium battery 38AH, life expectancy is about 3 years (3 minutes frequency), the interface uses the sm-2p header (the connection definition is one plus two minus).

★Static power：≤40mW

★ Communication distance: no less than 150m, the open area can reach 300m

★Reporting period: 1 minute to 12 hours, can be set

★Explosion-proof grade: Exd ⅡC T6 GB

★Shell protection: IP65

★Work environment temperature: -40℃～80℃

★Work environment humidity: ≤97% RH

★Long term stability: ±0.1%F.S/year

★Pressure overload ability: 150%FS

★Process connection: M20×1.5mm（land<6MPa）or 1/2"NPT(land)>=6MPa or sea)。

★ The dial is 60mm in diameter and the colour number is RAL 5007.
