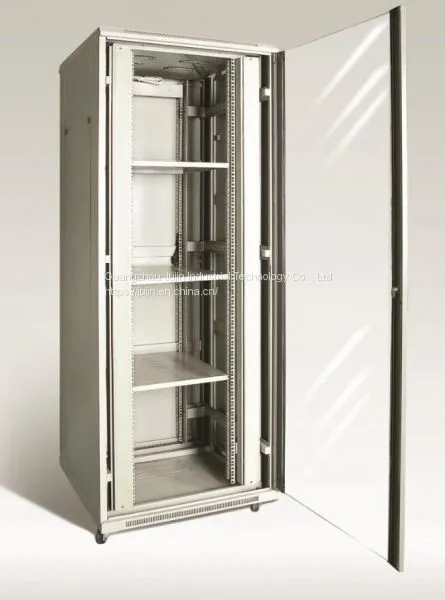

HWC 8822 server rack,with 5mm tempered glass door

Application:
Use for loading and installing router,exchange board,switch board,distribution frame,
patch panel, DF distribution F,distribution frame,network facilities, etc.

Overview

Product Name: HWC 8822 server rack

Brand Name: GDHW

Series Number: HWC

Material: SPCC Quality Cold Rolled Steel

Material Thickness: SPCC cold rolled steel:1.2-2.5mm

Color: Ral9004; Ral9005; Ral7035

Loading Capacity: Static loading: 500kgs

Degree of protection: IP20

Material: SPCC Quality Cold Rolled Steel

Surface finish: Degreasing,Pickling,Phosphating,Powder Coated

Cabinet Standard: ANS/EIA RS-310-D,IEC297-2,DIN41491,PART1,PART7,ETSI Standard

Features:

* Frame: Welded frame, stable structure with precise craftsmanship;

* Double Section, compatible with 19" standard equipment;

* Front Door: Tempered glass front door with over 180 turning degree;

* Side Panel: Removable side panel, easy to install and maintain (lock optional);

* Cable Entry on the top cover and bottom panel with knock-out plate;

* L-Shaped Mounting Profile, easy to adjustable on the mounting rail;

* Fan cutout on the top cover, easy to install fan;

* Various accessories for optional;

* Meets 19" industrial standard, such as ANSI/EIA-RS-310C

*The vented design on the top panel, the bottom panel which can reduce interior heat for higher ventilation.
