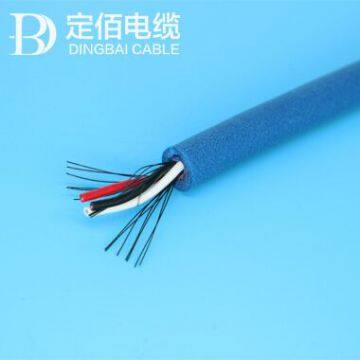

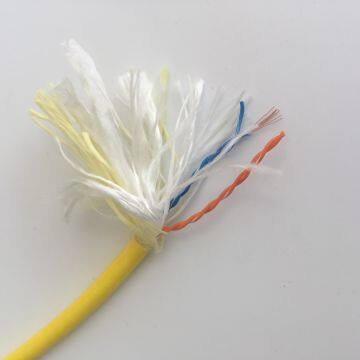

Help CenterAnti-uv 6.0mpa Electrical Connection Rov Umbilical Cable
Related Products
-
Aging Resistance 4.5mpa Fisheries Rov Umbilical CableNegotiableMOQ: 0 -
Underwater ROV Umbilical Cable Bending Resistance For Pipeline DetectionNegotiableMOQ: 100 Meters
-
Gb / T3956 2pairs - 91pairs Rov Umbilical Cable Anti-uvNegotiableMOQ: 0
-
Good Toughness Rov Umbilical Cable Black SalvageNegotiableMOQ: 0
-
Anti-interference Rov Umbilical Cable Ph9 G.657a2 / G652.dNegotiableMOQ: 0
Description:
The cable is mainly used for electrical connection between devices and requires work in an underwater environment. According to the signal transmission requirements, the signal control line can be multi-stranded single-core, multi-core, many pairs of different combinations of the core composition; according to the isolation requirements, shielding forms can be individually single shield, separate 2 layer shield, single Layer total shielding, 2 layers of the total shielding, etc .; according to the use requirements, can be vertical underwater robot cable form, horizontal seal form.
Vertical underwater cable: for the ship to wear a warehouse connection, high reliability of the use of the environment. Requires the cable end (axial) to withstand water pressure, in the eng_provisions of the test pressure and time, not allowed to water seepage.
Horizontal underwater cable: non-wear underwater use of the environment. Requirements cable jacket (radial) to water pressure, in the eng_provisions of the test pressure and time, the cable insulation resistance does not decline, the cable is not deformed.
Cable Hydraulic Rating:
Water pressure classification |
The following are the same as the Resistant to vertical hydraulic capacity |
The following are the same as the Resistant to horizontal hydraulic capacity |
|||
Water pressure rating |
4.5MPa |
6.0MPa |
10.0MPa |
10.0MPa |
70.0MPa |
Single core |
Multi-strand tinned copper wire stranded conductor, conductor cross-sectional area of 0.12mm² -16mm² . Conductor stranded with water blocking glue. |
Multi-strand tinned copper wire or silver-plated copper wire stranded conductor, conductor cross-sectional area of 0.035mm² -16mm² . |
|||
Multiple core lines |
Multi-strand tinned copper wire stranded conductor, conductor cross-sectional area of 0.12mm² -16mm² , twisted pair: 2 pairs of -91 pairs.
|
Multi-strand tinned copper wire or silver plated copper wire stranded conductor, conductor cross-sectional area of 0.035mm² -16mm² , core number: 2 core -91 core. |
|||
Many pairs of core |
Multi-strand tinned copper wire stranded conductor, conductor cross-sectional area of 0.12mm² -16mm² , twisted pair: 2 pairs of -91 pairs. |
Multi-strand tinned copper wire or silver-plated copper wire stranded conductor, conductor cross-sectional area of 0.035mm² -16mm² , the number of cores: 2 pairs of -91 pairs, shielding form: |
|||
Operating temperature |
-50℃-80℃ |
||||
Short temperature |
Resistant to 130 ℃, 2h low temperature vulcanization of 3m vulcanized rubber |
||||
Sheath material |
Polyurethane, rubber |
||||
Resistant to seawater |
Be applicable |
||||
Underwater robot cable test standard |
GJB1916-94，GJB774-1989，MIL-DTL-24643 |
||||

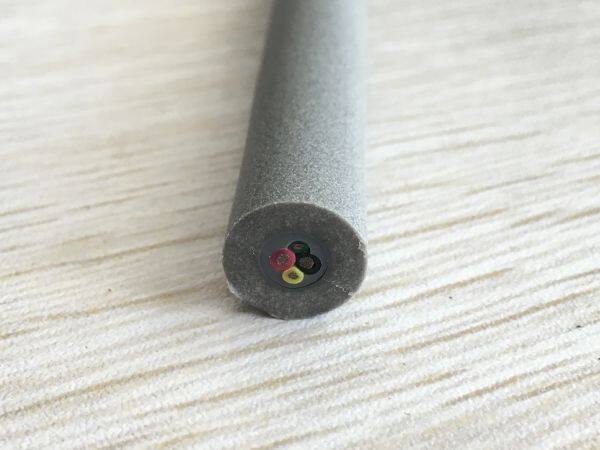

Cable Structure
Conductor: multi strand fine twisted superfine oxygen-free copper wire insulation: special mixed PVC insulation
Color: less than 0.5mm2 color logo, brown, black, blue, purple, pink, orange > 0.5mm2 black digital white number number, 3 core with yellow green line inner sheath: optional
Shielding: tin plated copper net woven shielding, density more than 85%
Sheath: Imported PUR material, the color can be chosen.
