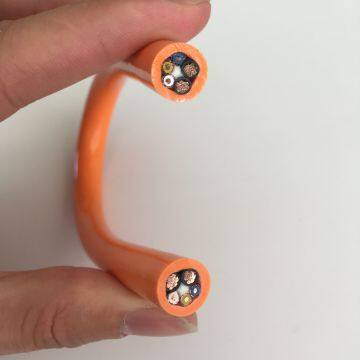

Help CenterCustoms Water Resistant 3m Cross-linked Rubber Rov Cable
Related Products
-
Gjb774-1989 Weatherproof Rov Cable Od 3mmNegotiableMOQ: 0 -
Underwater Buoyant Neutral Buoyancy 1 Pairs (2*28AWG) ROV CableNegotiableMOQ: 1000 Meters
-
ROV Underwater Neutrally Buoyant Cable(4*2*26AWG)NegotiableMOQ: 1000 Meters
-
Wear Resistance ROV Cable PVC Insulation 0.6 / 1kv IEC60332-1NegotiableMOQ: 100 Meters
-
Weatherproof Rov Cable Green Coast GuardNegotiableMOQ: 0
Why choose us?
Our factory add for you check: ensure lowest price and good quality and best service for you, we service 7*24 hours online, happy meet in our factory.
Good factory supplier save you time and money and help you win the market, contact us : dbaimr_chen@163.com
Features:
1. Long service life and high performance. Wearable and stable PVC material, suitable for indoor applications.
2.Wear resistance and bending resistance. The special tensile strengthening layer has greatly improved the service life and tensile property of the product.
3. Using twisted pair process to avoid the internal channeling sound and signal interference.
4. The inner sheath makes the core structure more compact, which greatly avoids the phenomenon of core channeling and increases the service life.
5. Shielding layer uses tin plated copper wire to reduce oxidation phenomenon, and the coverage rate is very close to 90%, so as to reduce the interference in the use process.
Application:
This cable is specially designed for applications requiring high bending and continuous movement, is widely used for towing system, robot and mobile drive system. The advantages of the outer sheath material, such as wear resistance, hydrolysis resistance, antibacterial and flame retardancy, make the cable play the most advantage in the towing system.
Parameters:
Voltage: 0.6/1kv
Test voltage: 3500V/5min (AC)
Minimum bending radius:
Fixed laying 5x cable outer diameter
Mobile installation 7.5x cable outer diameter
Temperature range:
Fixation temperature:-20℃-70℃
Moving temperature:-15℃-70℃
Oil resistance: ordinary
Weather resistance: UV resistant , suitable for indoor
Flame retardancy: IEC60332-1
Maximum moving speed:
Overhead speed: 3m/s
Sliding speed: 2m/s
Acceleration: 20m/s2

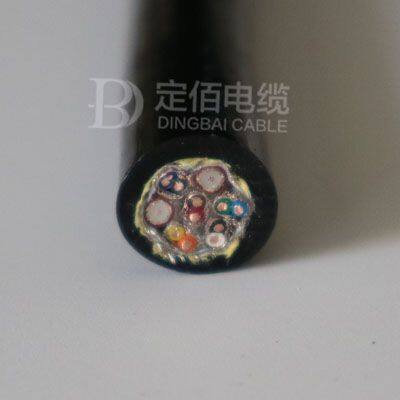

Product Structure:
1, Twisted shield data cable
2, Conductor:VDE02956
3, Insulation layer: special low viscosity PVC mixture
4, Special tensile core
5, Inner sheath: high elastic PVC mixture
6, Yellow green ground wire
7,Tin plated copper braided shield:optical coverage 90%
8, Outer sheath:special low viscosity wear-resistant PVC mixture
(Special specifications \ color and more complex applications can be customized according to the requirements)
